Comparison Between Proportioning Valve & EBD

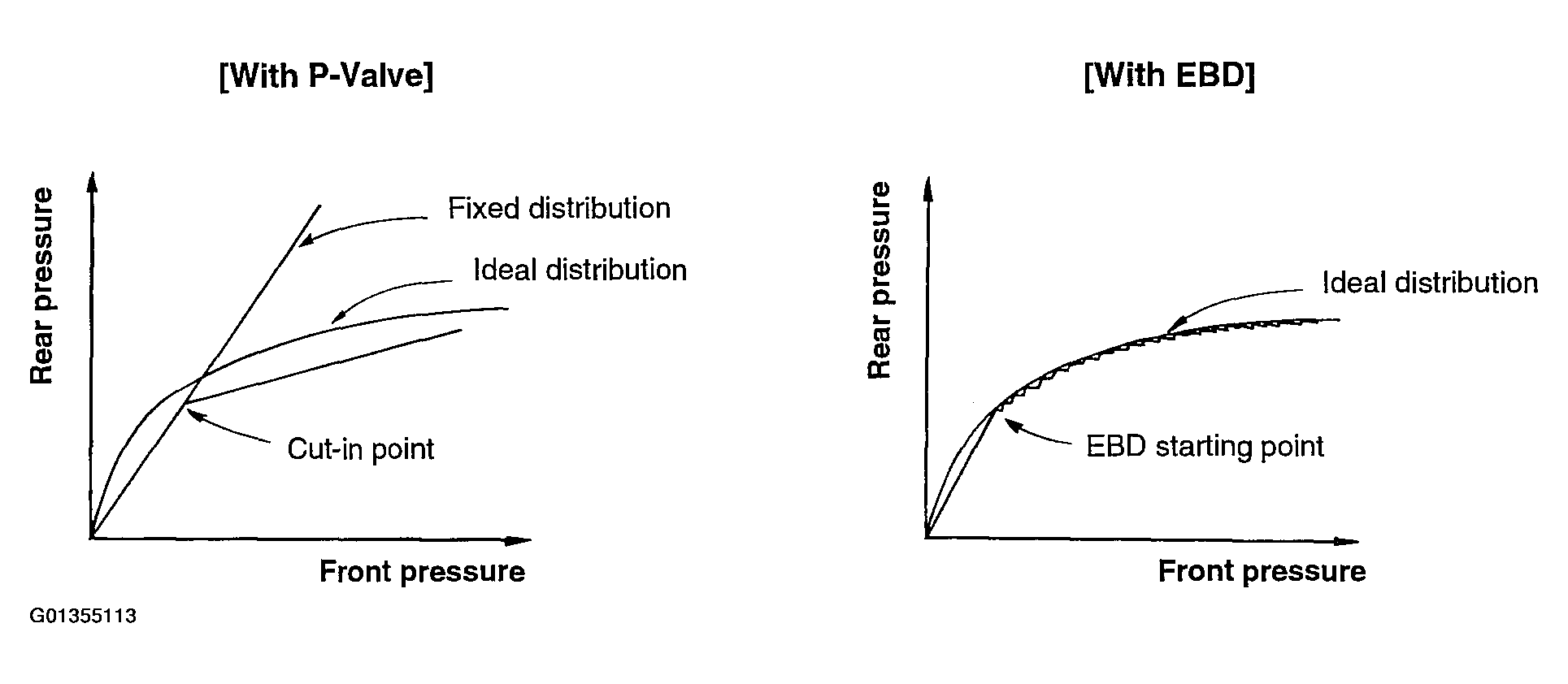

Fig 1: Brake Pressure Distribution Comparison Between Proportioning Valve & EBD

G01355113

Courtesy of HYUNDAI MOTOR CO.
