Home >> Hyundai >> 2004 >> XG350 Base >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Multi Function Switch, Horn System & Ignition Switch >> MULTIFUNCTION Switch >> Specifications

MULTIFUNCTION Switch: Specifications

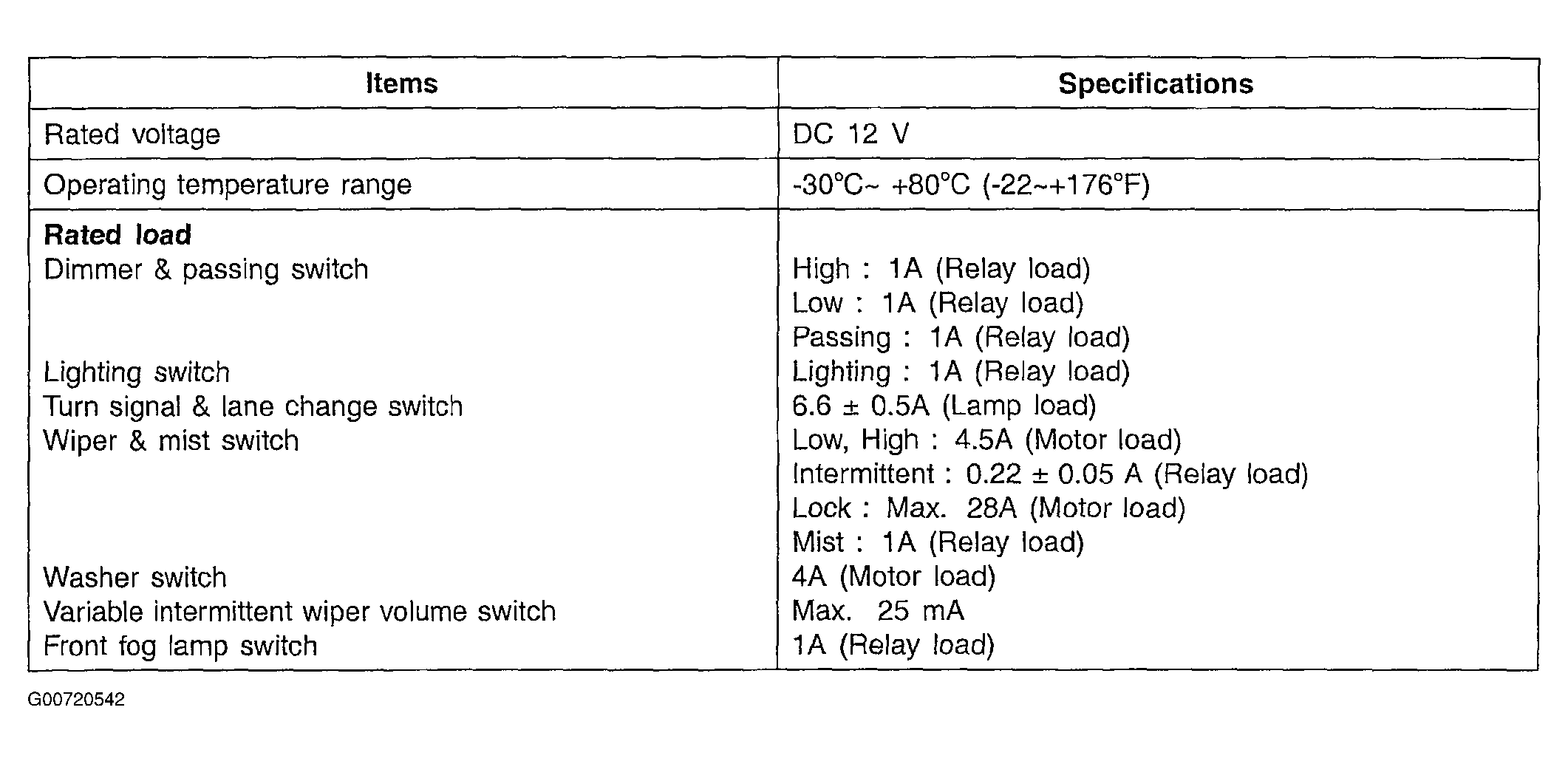

Fig 1: Multifunction Switch Specifications

G00720542

Courtesy of HYUNDAI MOTOR CO.
