Diagnosis Of Immobilizer Related Faults

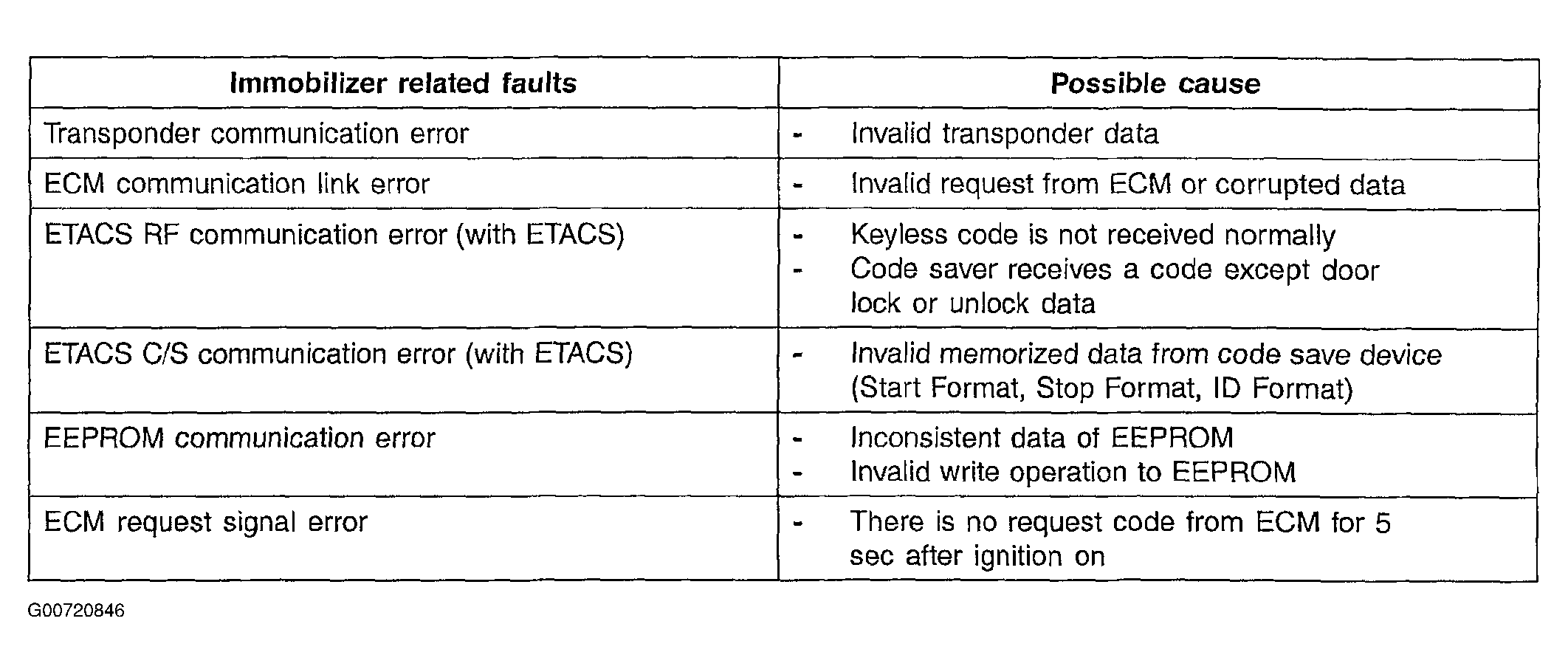

Fig 1: Immobilizer Related Faults Table

G00720846

Courtesy of HYUNDAI MOTOR CO.
