Home >> Hyundai >> 2004 >> Tiburon GT, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (2.7L) >> DTC Troubleshooting Procedures >> Siemens Ems >> DTC P0121: Throttle Position Sensor Circuit Range/Performance Problem >> Specifications

DTC P0121: Throttle Position Sensor Circuit Range/Performance Problem: Specifications

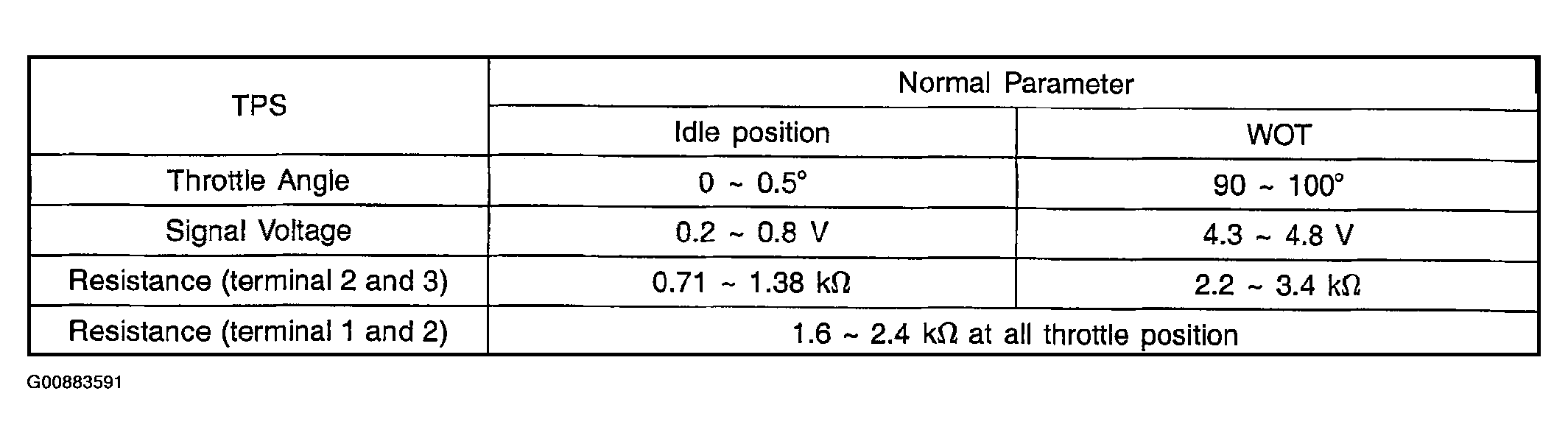

Fig 1: Specifications Table

G00883591

Courtesy of HYUNDAI MOTOR CO.
