Immobilizer Control System: Components

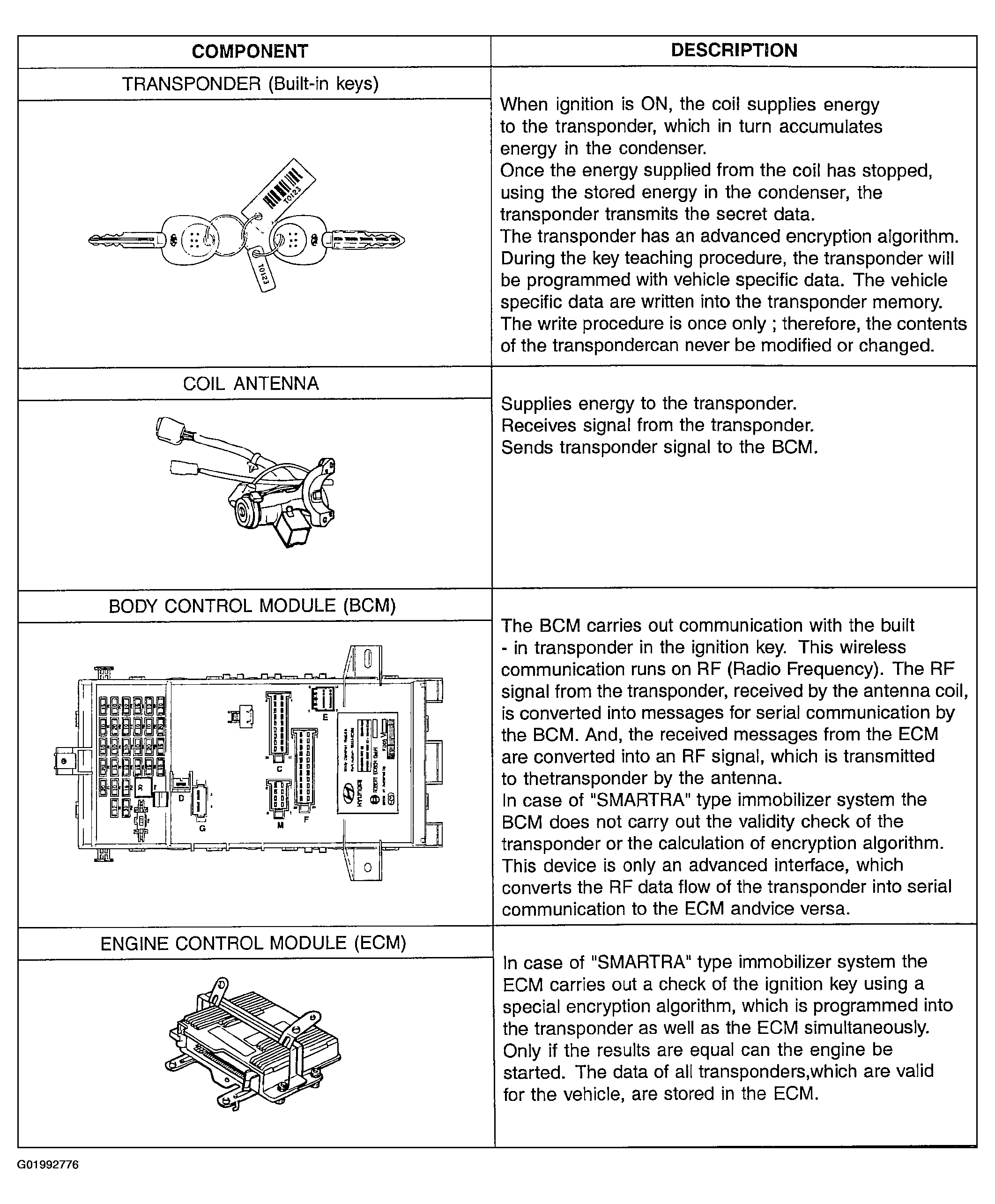

Fig 1: Identifying Immobilizer Control System Components (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

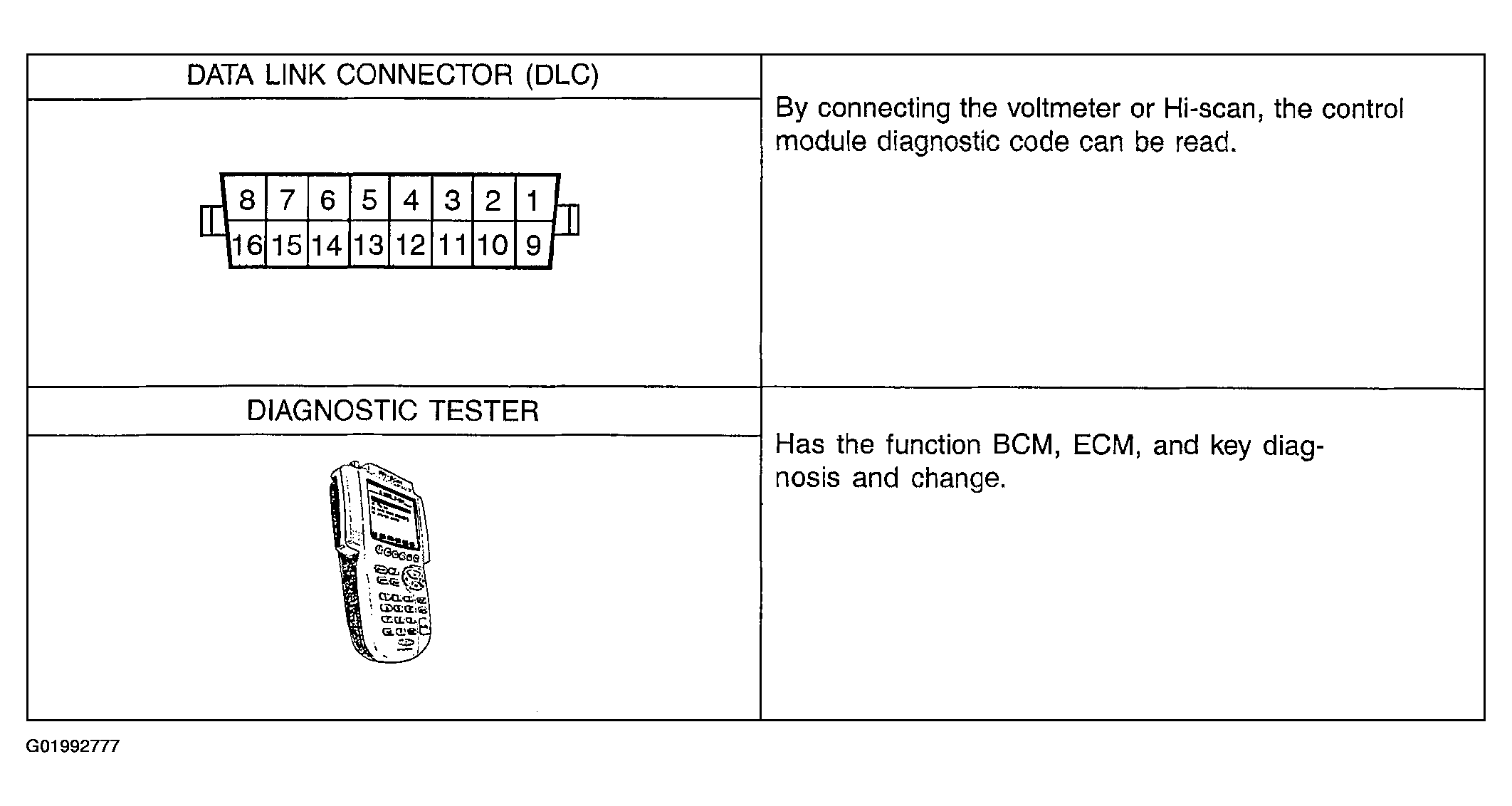

Fig 2: Identifying Immobilizer Control System Components (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
