Clutch System: General: Troubleshooting

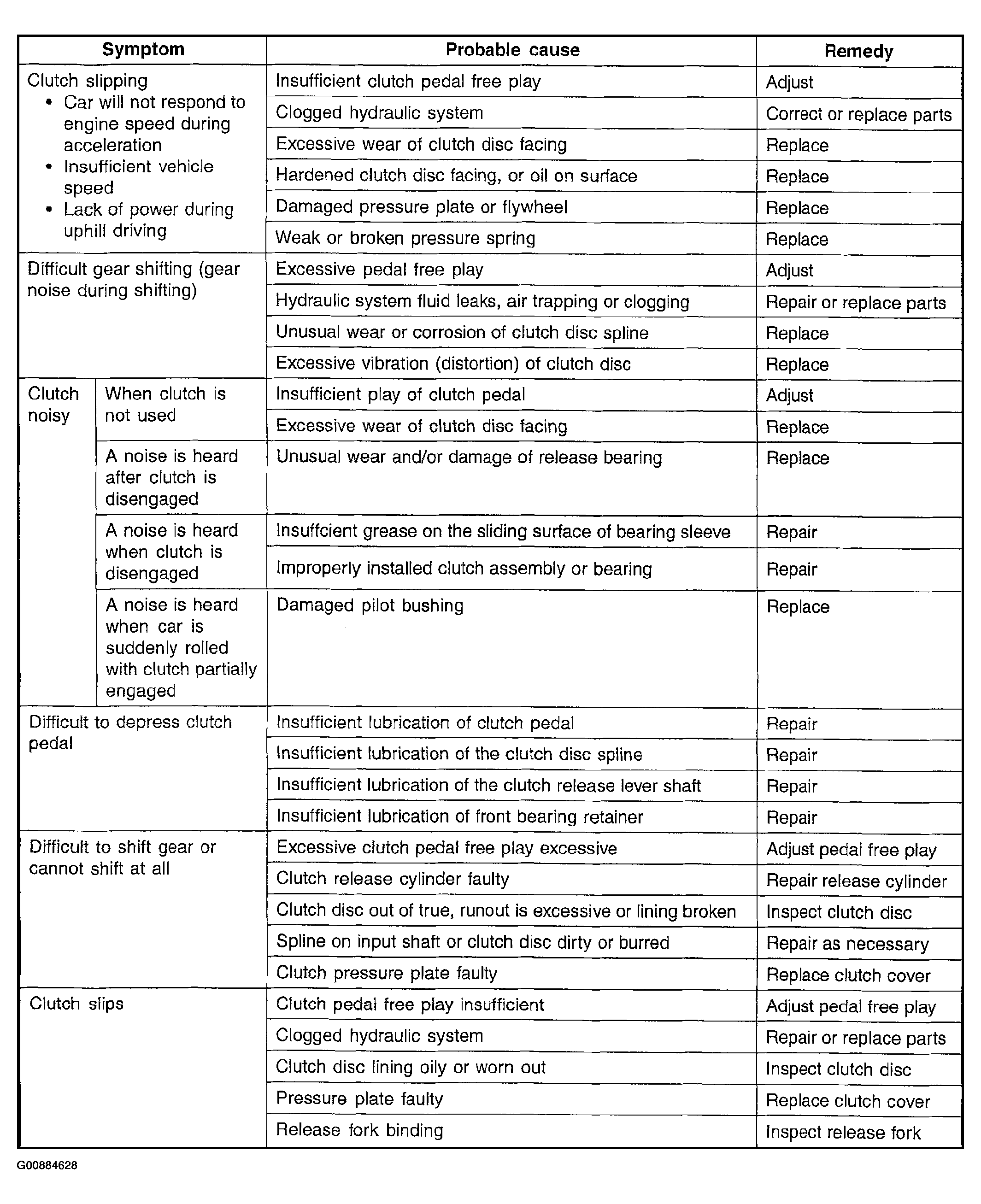

Fig 1: Troubleshooting (1 Of 2)

G00884628

Courtesy of HYUNDAI MOTOR CO.

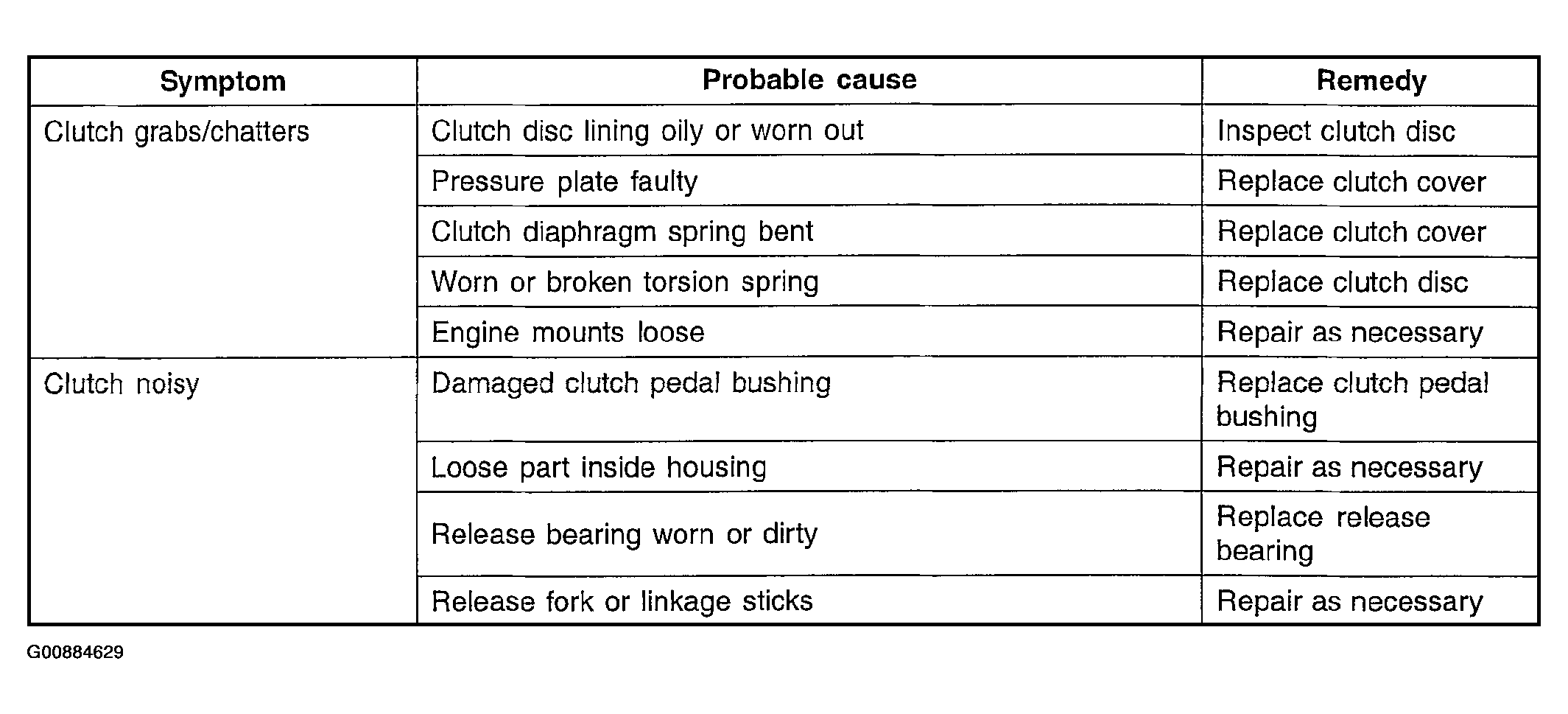

Fig 2: Troubleshooting (2 Of 2)

G00884629

Courtesy of HYUNDAI MOTOR CO.
