Wheel Alignment Specifications

Use illustration for wheel alignment specifications. See Fig 1 .

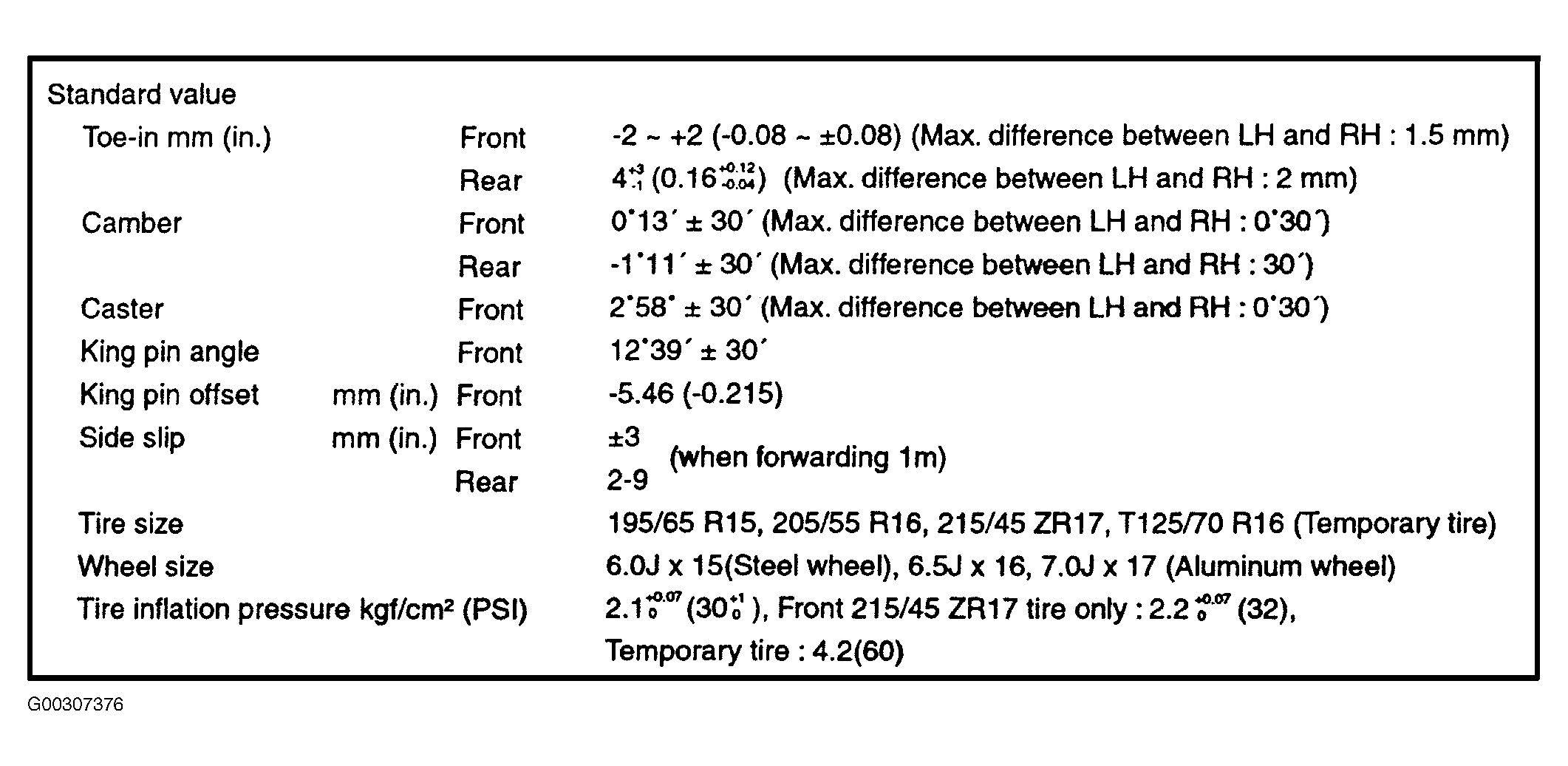

Fig 1: Wheel Alignment Specifications
G00307376Courtesy of HYUNDAI MOTOR CO.
