Power Steering Oil Pump: Disassembly: Notes

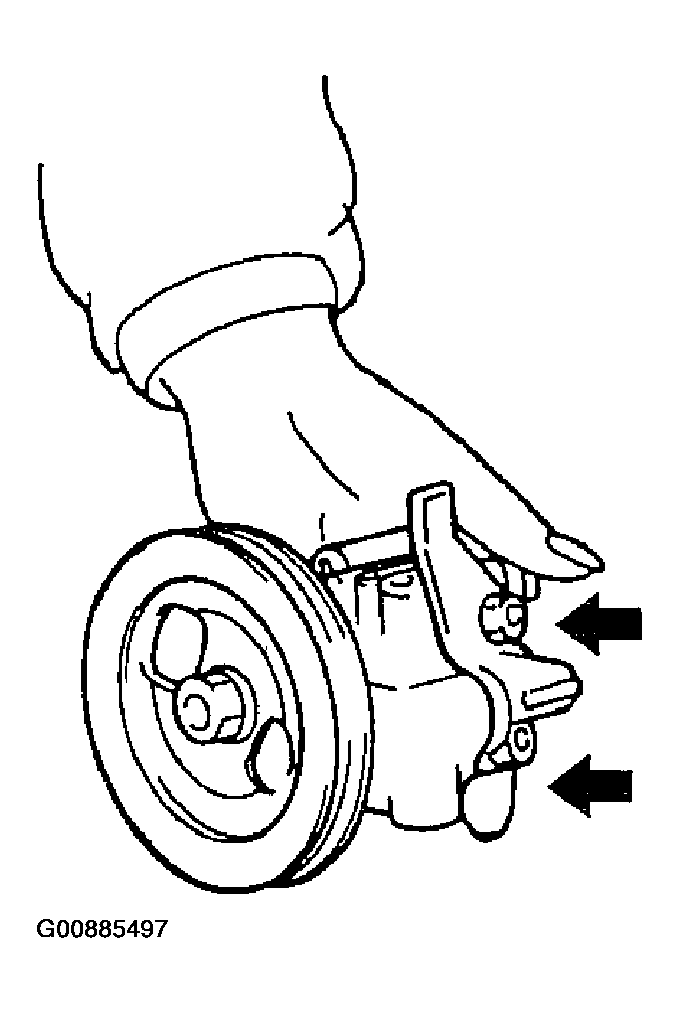

After removing the 2 bolts, remove the suction pipe and the O-ring from the oil pump body.

Fig 1: Removing Suction Pipe & O-Ring From Oil Pump Body
Courtesy of HYUNDAI MOTOR CO.
Loosen the four bolts and remove the oil pump cover assembly.
Remove the cam ring.
Remove the rotor and vanes.
Remove the oil pump side plate.

Fig 2: Removing Oil Pump Side Plate
Courtesy of HYUNDAI MOTOR CO.
Remove the inner and outer O-ring.
Remove the side plate spring.
NOTE: When assembling, use a new gasket and O-ring.

Fig 3: Removing Side Plate Spring
Courtesy of HYUNDAI MOTOR CO.
Mount the pulley in a vise and remove the pulley nut and the spring washer.

Fig 4: Removing Pulley Nut & Spring Washer
Courtesy of HYUNDAI MOTOR CO.
Pull the pulley out.
After removing the snap ring of the shaft with snap ring pliers, remove the dust spacer.

Fig 5: Removing Snap Ring Of Shaft & Dust Spacer
Courtesy of HYUNDAI MOTOR CO.
Tap the rotor side of the shaft slightly with a plastic hammer to remove the shaft.

Fig 6: Tapping Rotor Side Of Shaft Slightly With A Plastic Hammer To Remove Shaft
Courtesy of HYUNDAI MOTOR CO.
Remove the oil seal from the oil pump body.

Fig 7: Removing Oil Seal From Oil Pump Body
Courtesy of HYUNDAI MOTOR CO.

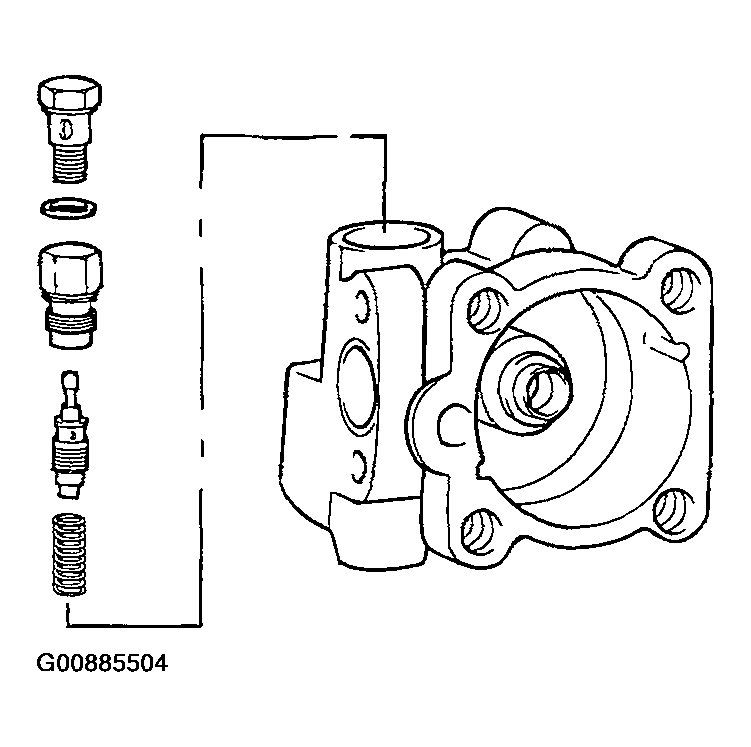

Remove the connector from the oil pump body, and take out the flow control valve and the flow control spring.

Fig 8: Removing Connector From Oil Pump Body & Removing Flow Control Valve & Flow Control Spring
Courtesy of HYUNDAI MOTOR CO.
Remove the O-ring from the connector.
CAUTION: Do not disassemble the flow control valve.
