Home >> Hyundai >> 2004 >> Tiburon Base, Standard >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Power Steering Oil Pump >> Components

Power Steering Oil Pump: Components

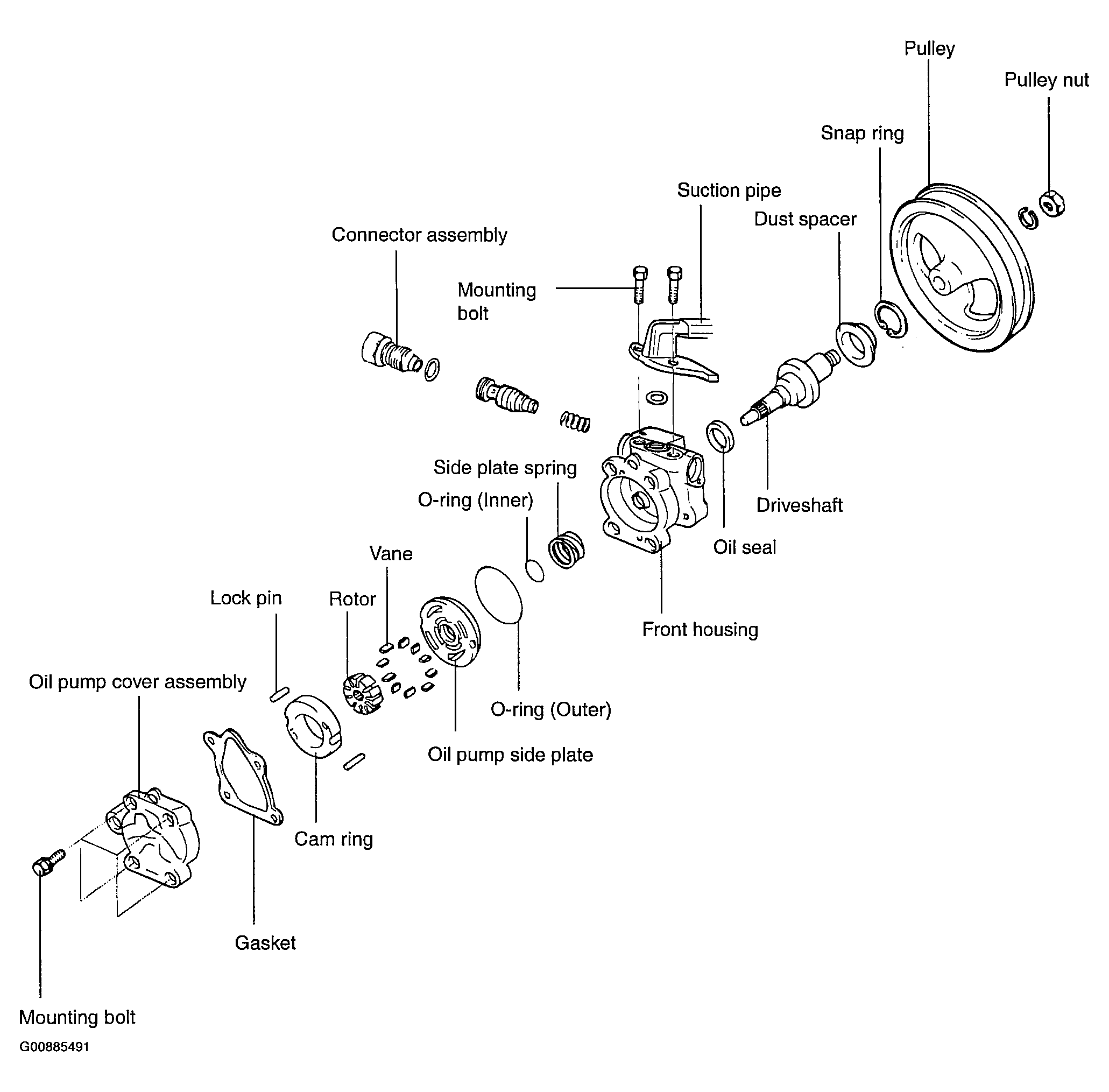

Fig 1: Identifying Power Steering Oil Pump Components

G00885491

Courtesy of HYUNDAI MOTOR CO.
