Section 5 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Inspection Process For Trouble Symptoms
>>
Inspection Procedure 3
Inspection Procedure 3
WARNING:
This page is about a different variant/trim than selected.

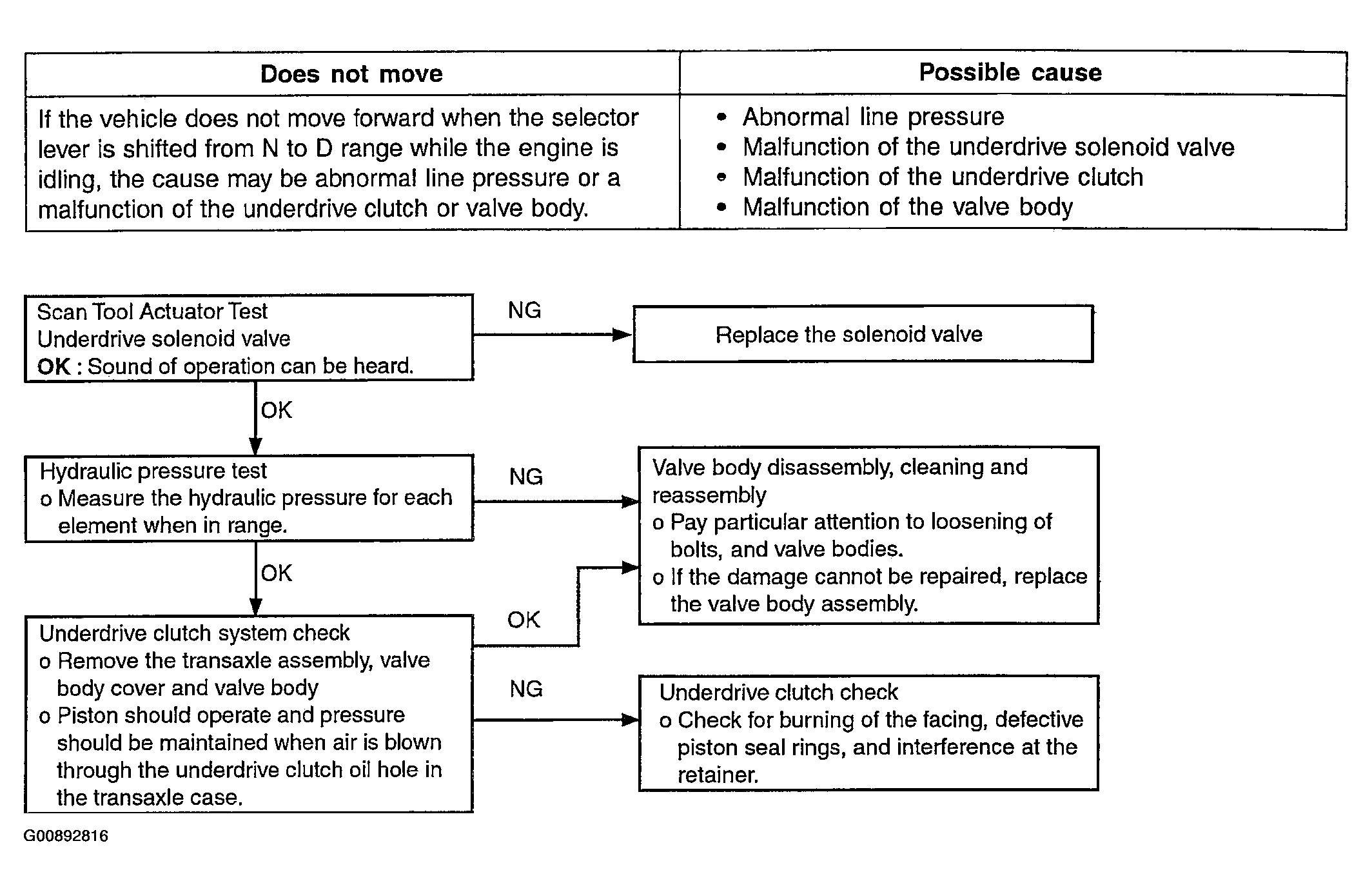

Fig 1: Inspection Procedure 3
Courtesy of HYUNDAI MOTOR CO.
