Section 5 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Automatic Transaxle
>>
Components
Automatic Transaxle: Components
WARNING:
This page is about a different variant/trim than selected.

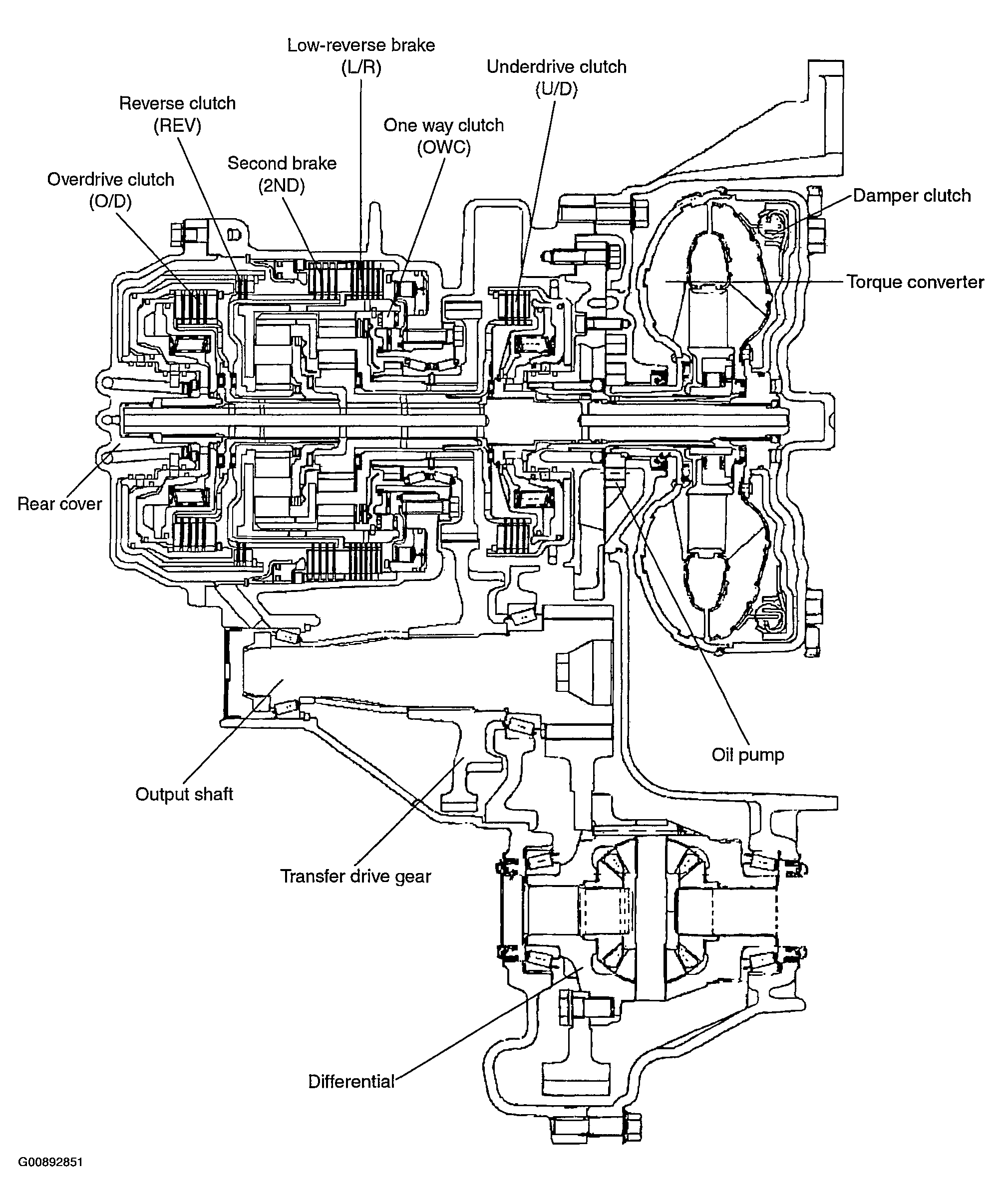

Fig 1: Locating Automatic Transaxle Components
Courtesy of HYUNDAI MOTOR CO.
