Home >> Hyundai >> 2004 >> Tiburon Base, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (2.0L) >> DTC Troubleshooting Procedures >> DTC P0451: EVAP Emission Control System Pressure Sensor Range/Performance Problem >> DTC Detecting Condition

DTC P0451: EVAP Emission Control System Pressure Sensor Range/Performance Problem: DTC Detecting Condition

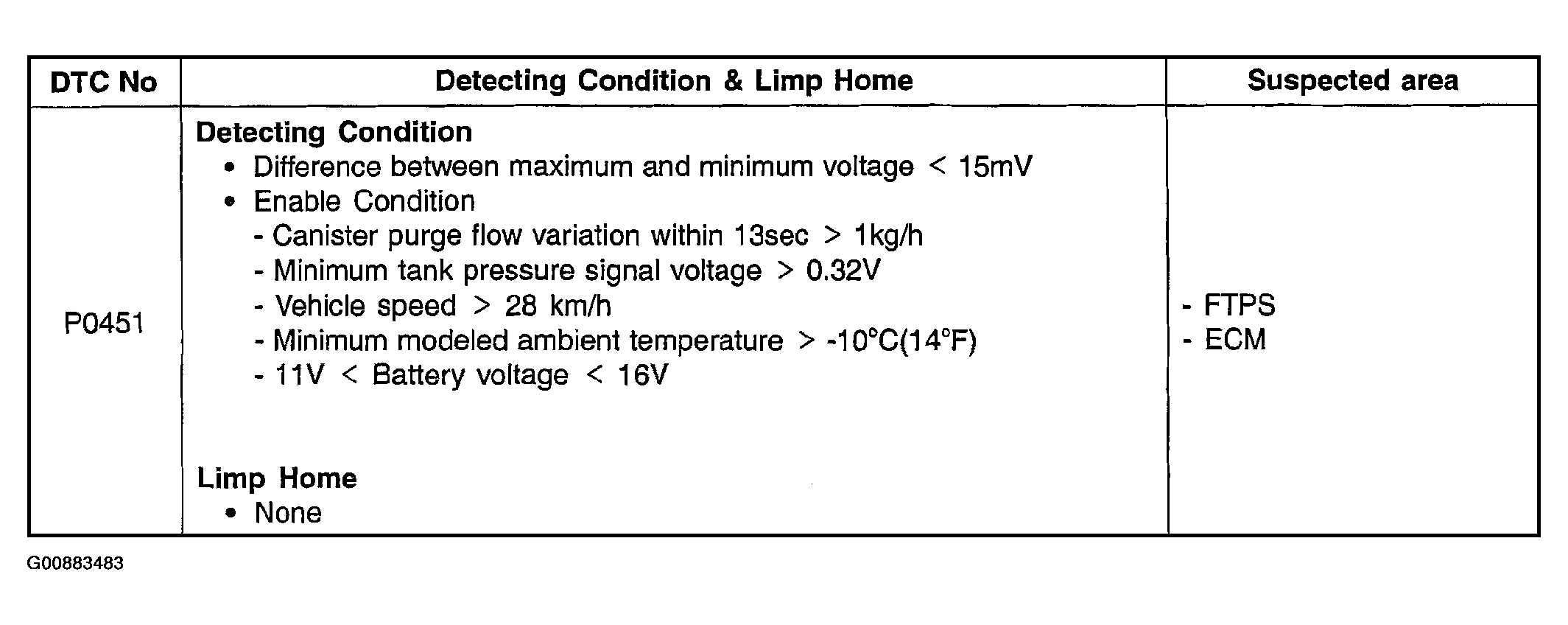

Fig 1: DTC Detecting Condition

G00883483

Courtesy of HYUNDAI MOTOR CO.
