DTC P0140: O2 Sensor Circuit No Activity Detected (Bank 1, Sensor 2)
>>
DTC Detecting Condition
DTC P0140: O2 Sensor Circuit No Activity Detected (Bank 1, Sensor 2): DTC Detecting Condition

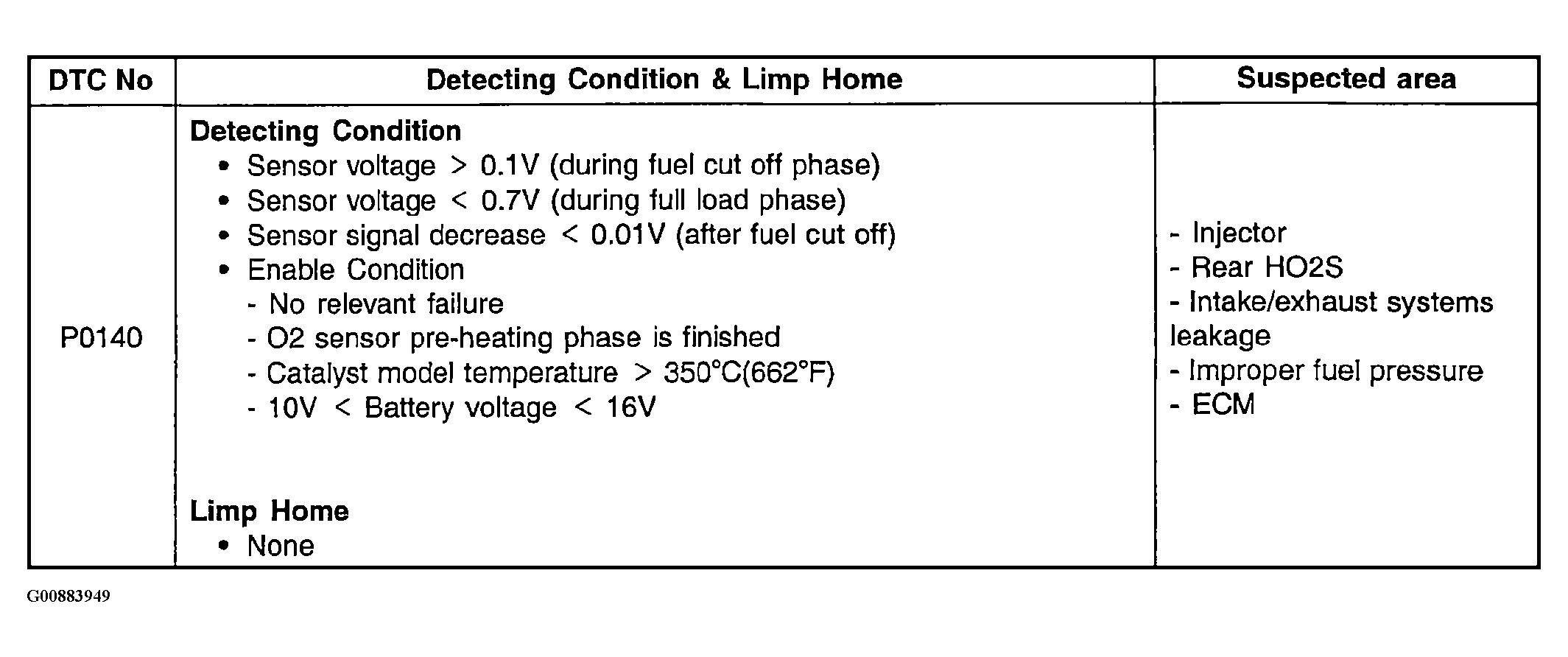

Fig 1: DTC Detecting Condition
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
