DTC P0131: O2 Sensor Circuit Low Input (Bank 1, Sensor 1): DTC Detecting Condition

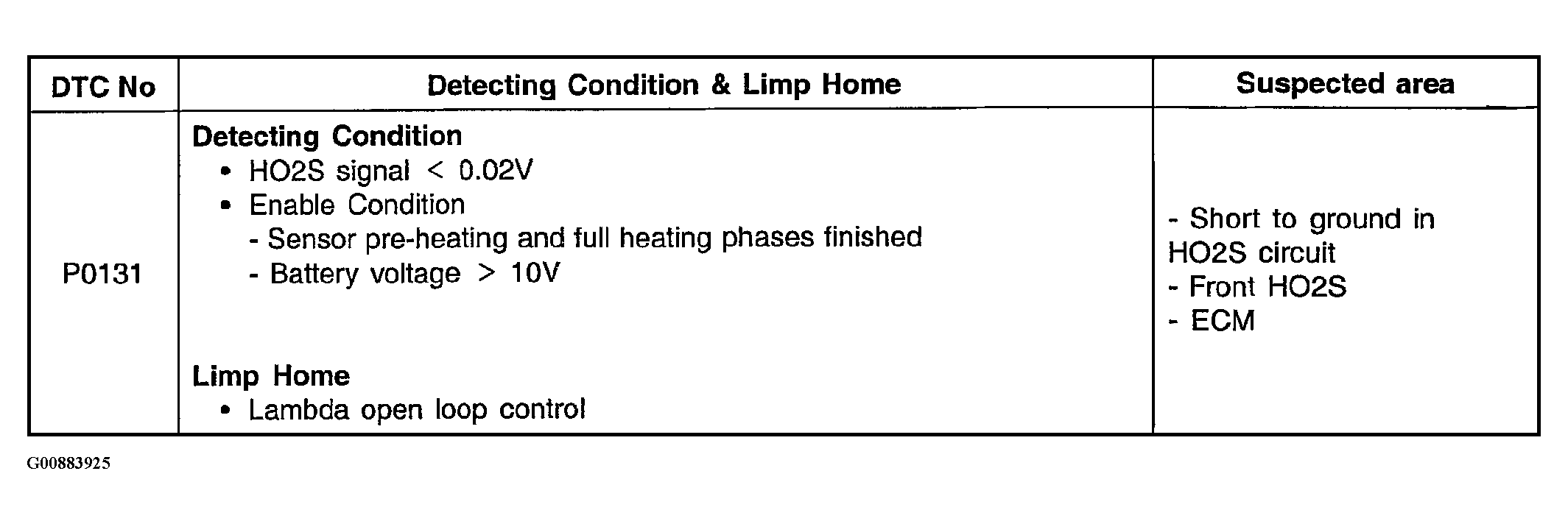

Fig 1: DTC Detecting Condition
G00883925Courtesy of HYUNDAI MOTOR CO.
