DTC P0113: Intake Air Temperature Circuit High Input: DTC Detecting Condition

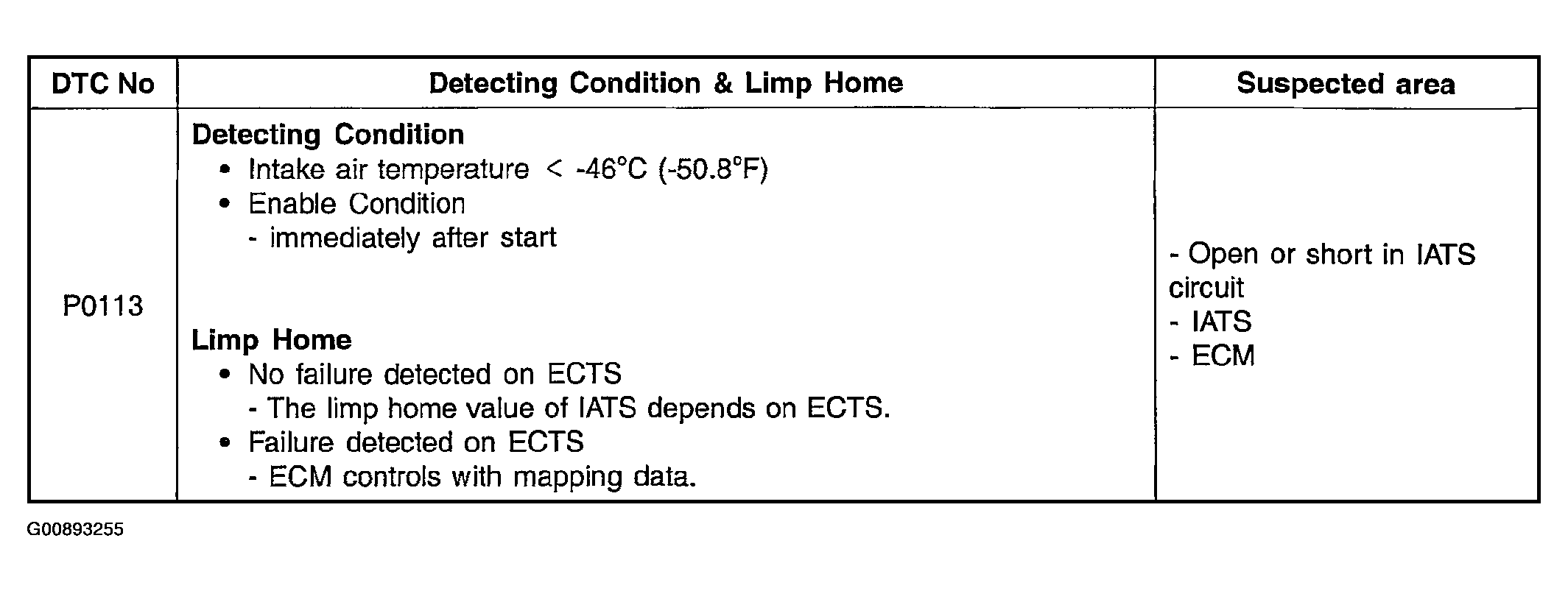

Fig 1: DTC Detecting Condition

G00893255

Courtesy of HYUNDAI MOTOR CO.
