DTC P0038: O2 Sensor Heater Circuit High Input (Bank 1, Sensor 2): DTC Detecting Condition

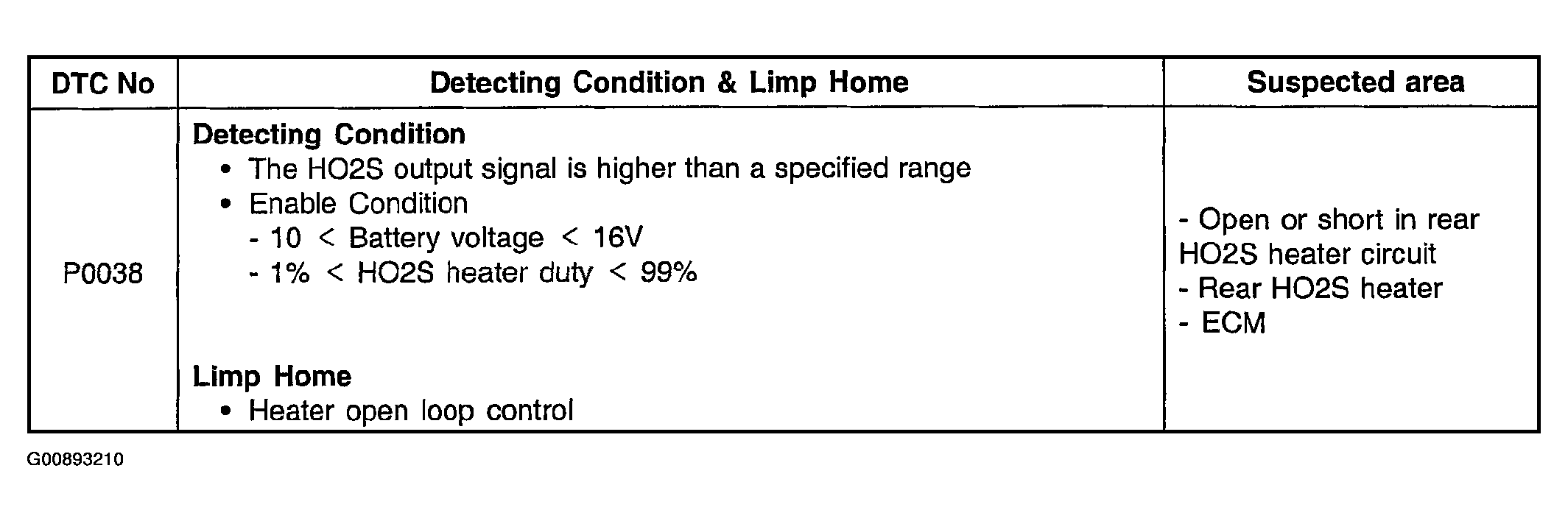

Fig 1: DTC Detecting Condition
G00893210Courtesy of HYUNDAI MOTOR CO.
