Hyundai
>>
2004
>>
Tiburon Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (2.0L)
>>
DTC Troubleshooting Procedures
>>
DTC P0036: O2 Sensor Heater - Heater Control Circuit (Bank 1, Sensor 2)
>>
DTC Detecting Condition
DTC P0036: O2 Sensor Heater - Heater Control Circuit (Bank 1, Sensor 2): DTC Detecting Condition

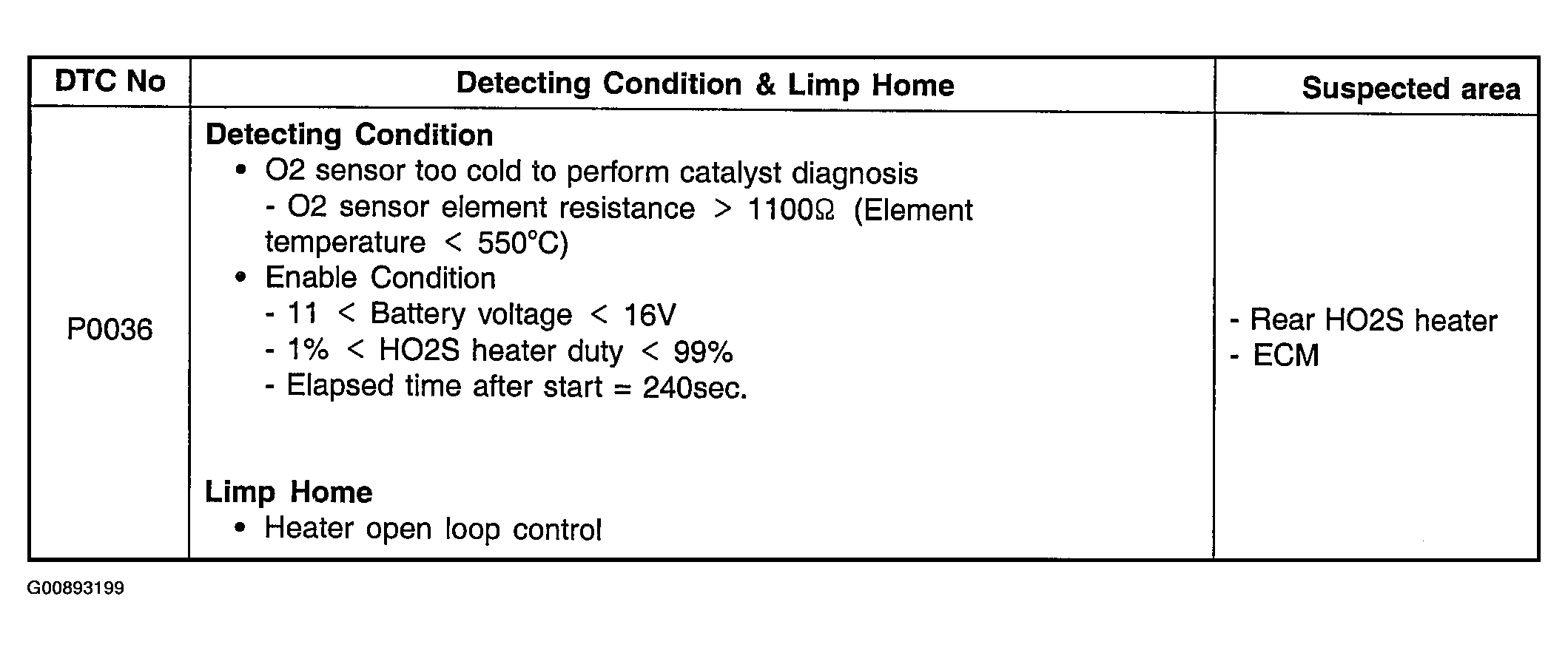

Fig 1: DTC Detecting Condition
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
