DTC P0032: O2 Sensor Heater Circuit High Input (Bank 1, Sensor 1): DTC Detecting Condition

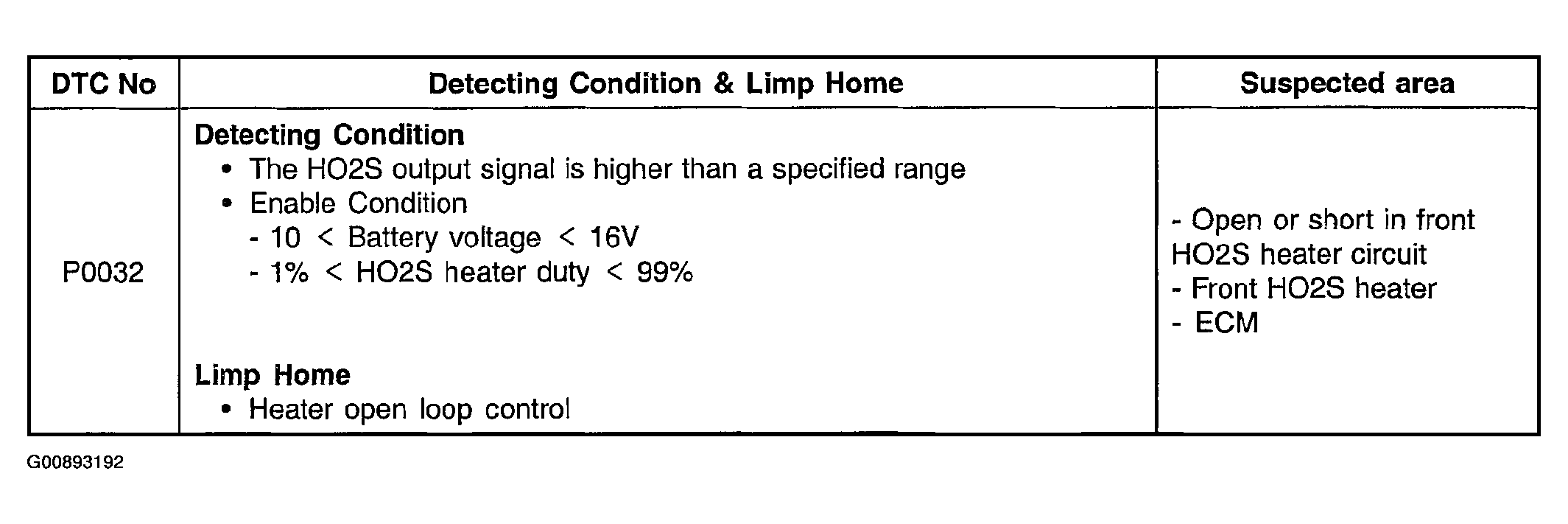

Fig 1: DTC Detecting Condition

G00893192

Courtesy of HYUNDAI MOTOR CO.
