DTC P0031: O2 Sensor Heater Circuit Low Input (Bank 1, Sensor 1): DTC Detecting Condition

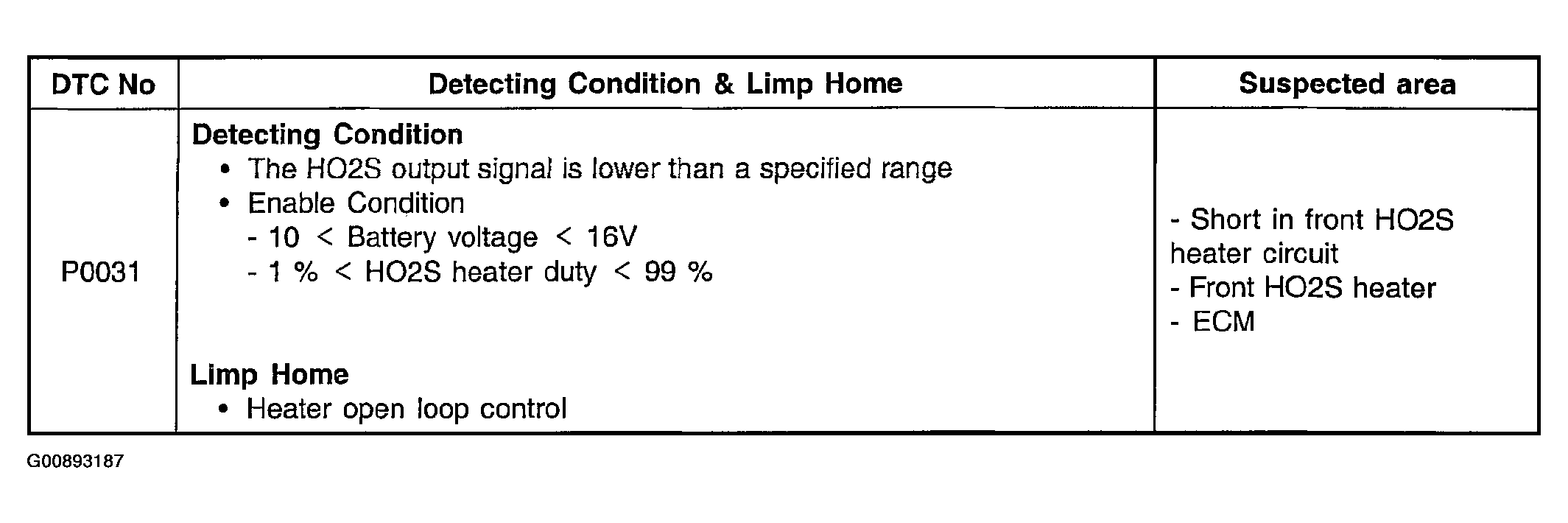

Fig 1: DTC Detecting Condition
G00893187Courtesy of HYUNDAI MOTOR CO.
