Suspect Area Related To DTC

NOTE: Suspect area for each diagnostic item do not list all probable causes.

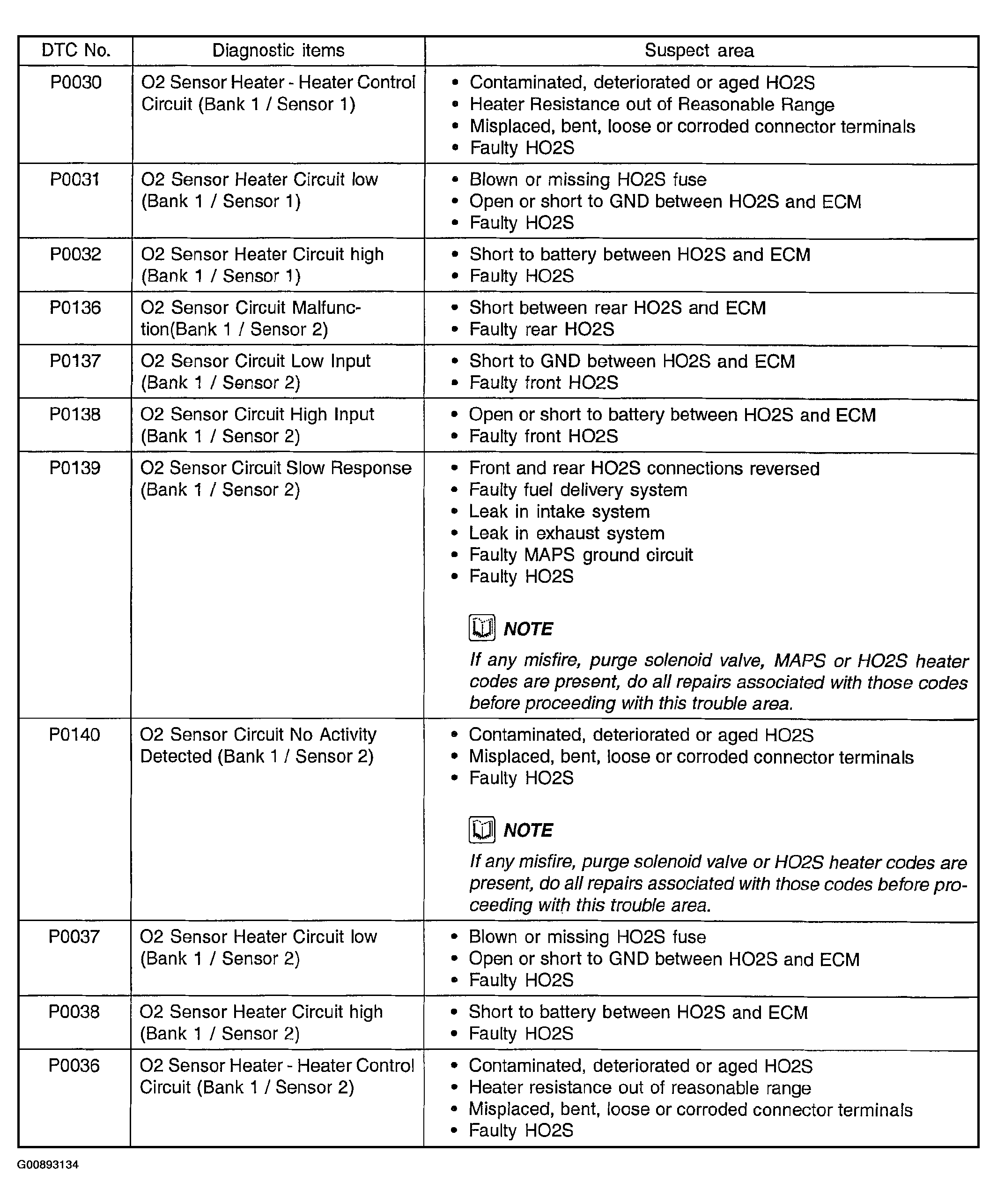

Fig 1: DTC P0030, P0031, P0032, P0136, P0137, P0138, P0139, P0140, P0037, P0038 & P0036 Suspect Areas

Courtesy of HYUNDAI MOTOR CO.

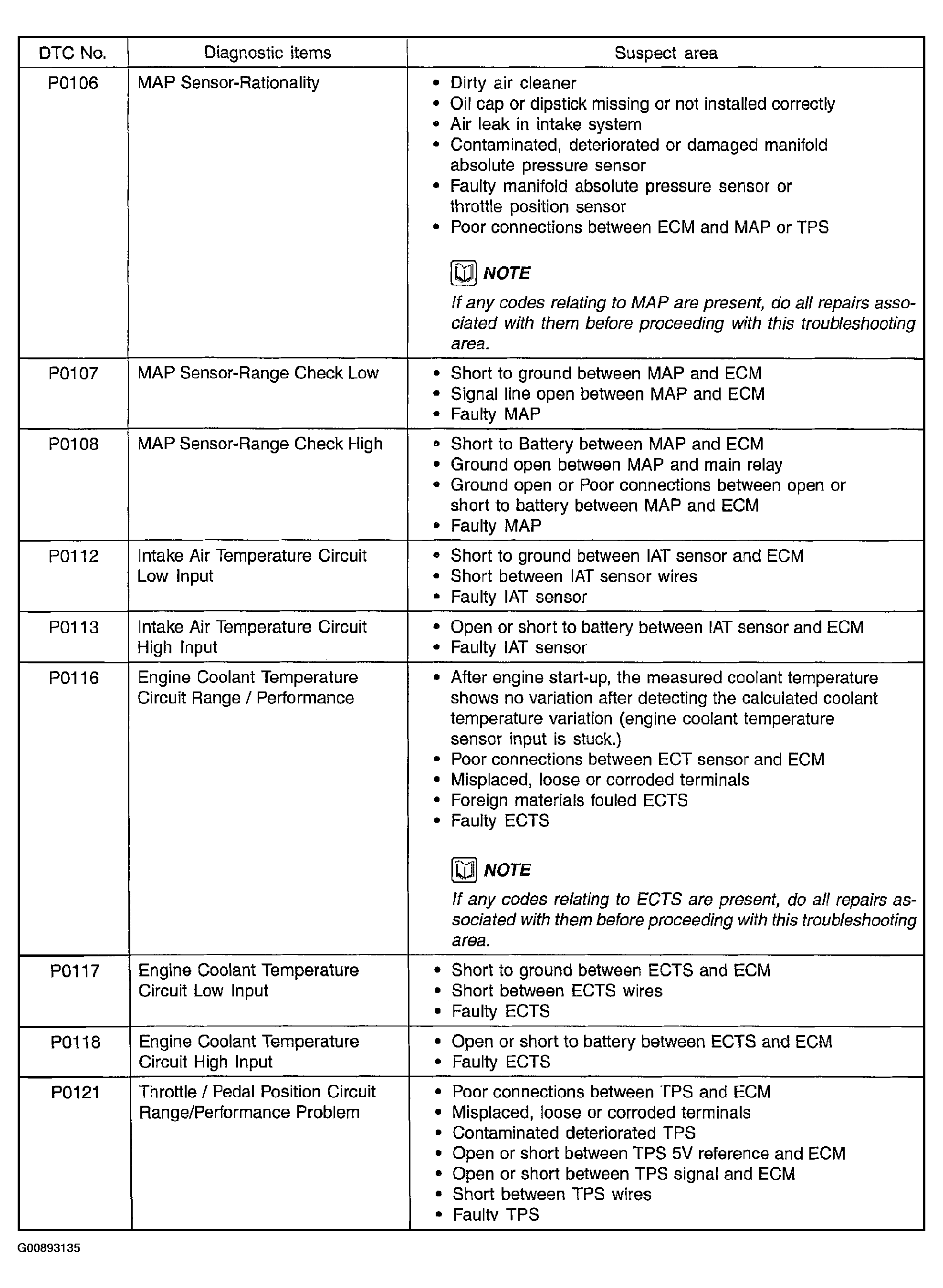

Fig 2: DTC P0106, P0107, P0108, P0112, P0113, P0116, P0117, P0118 & P0121 Suspect Areas

Courtesy of HYUNDAI MOTOR CO.

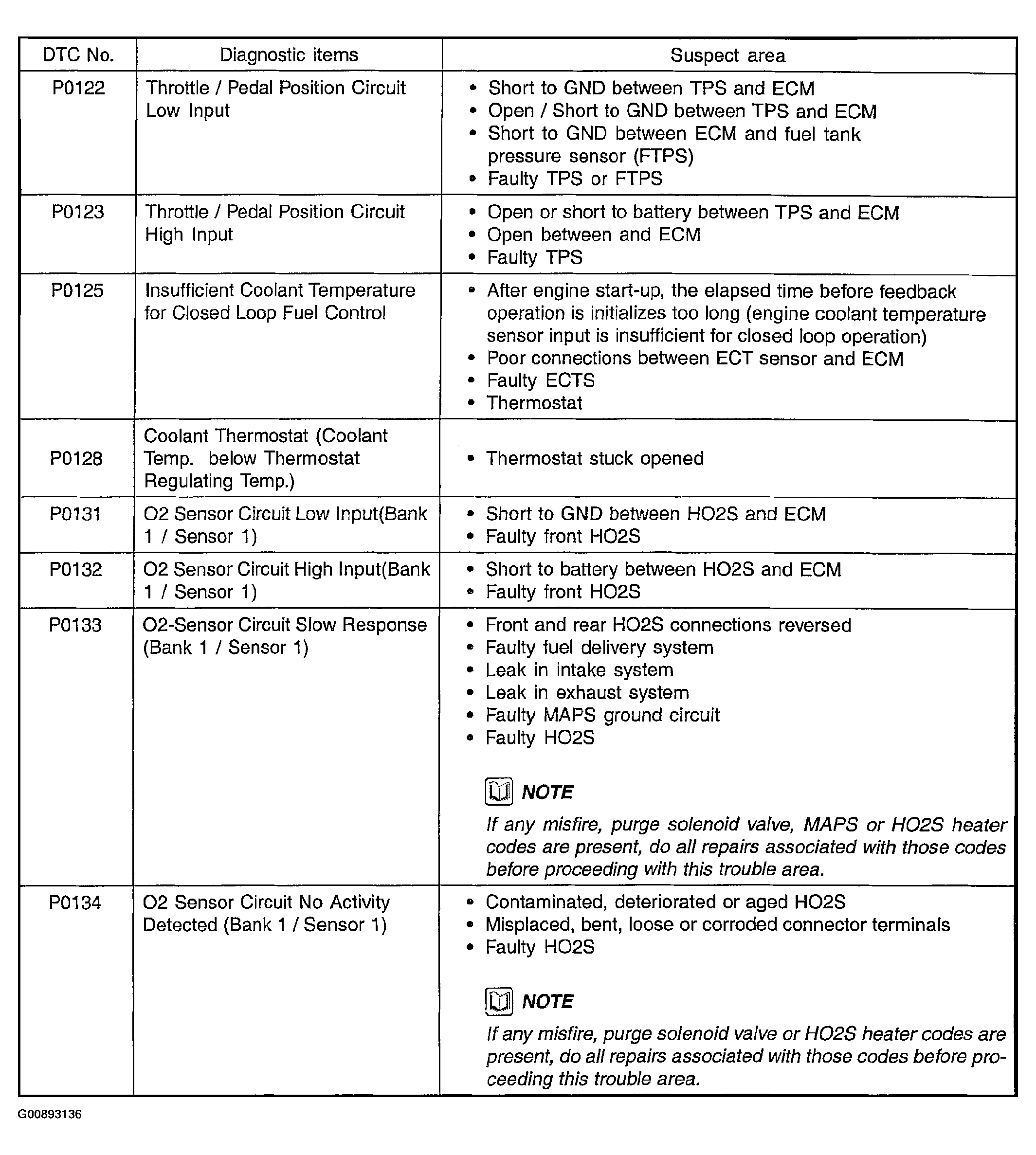

Fig 3: DTC P0122, P0123, P0125, P0128, P0131, P0132, P0133 & P0134 Suspect Areas

Courtesy of HYUNDAI MOTOR CO.

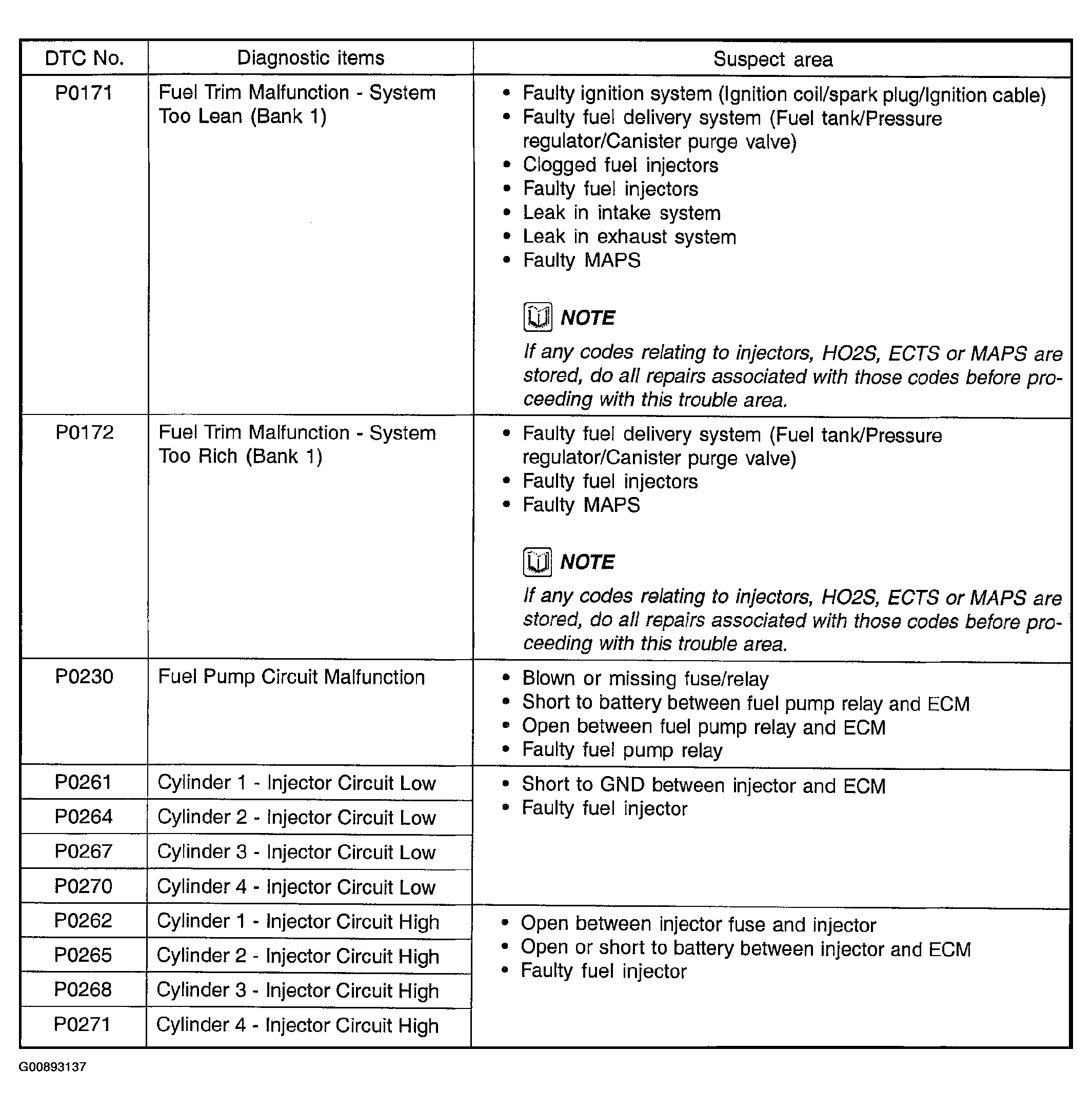

Fig 4: DTC P0171, P0172, P0230, P0261, P0264, P0267, P0270, P0262, P0265, P0268 & P0271 Suspect Areas

Courtesy of HYUNDAI MOTOR CO.

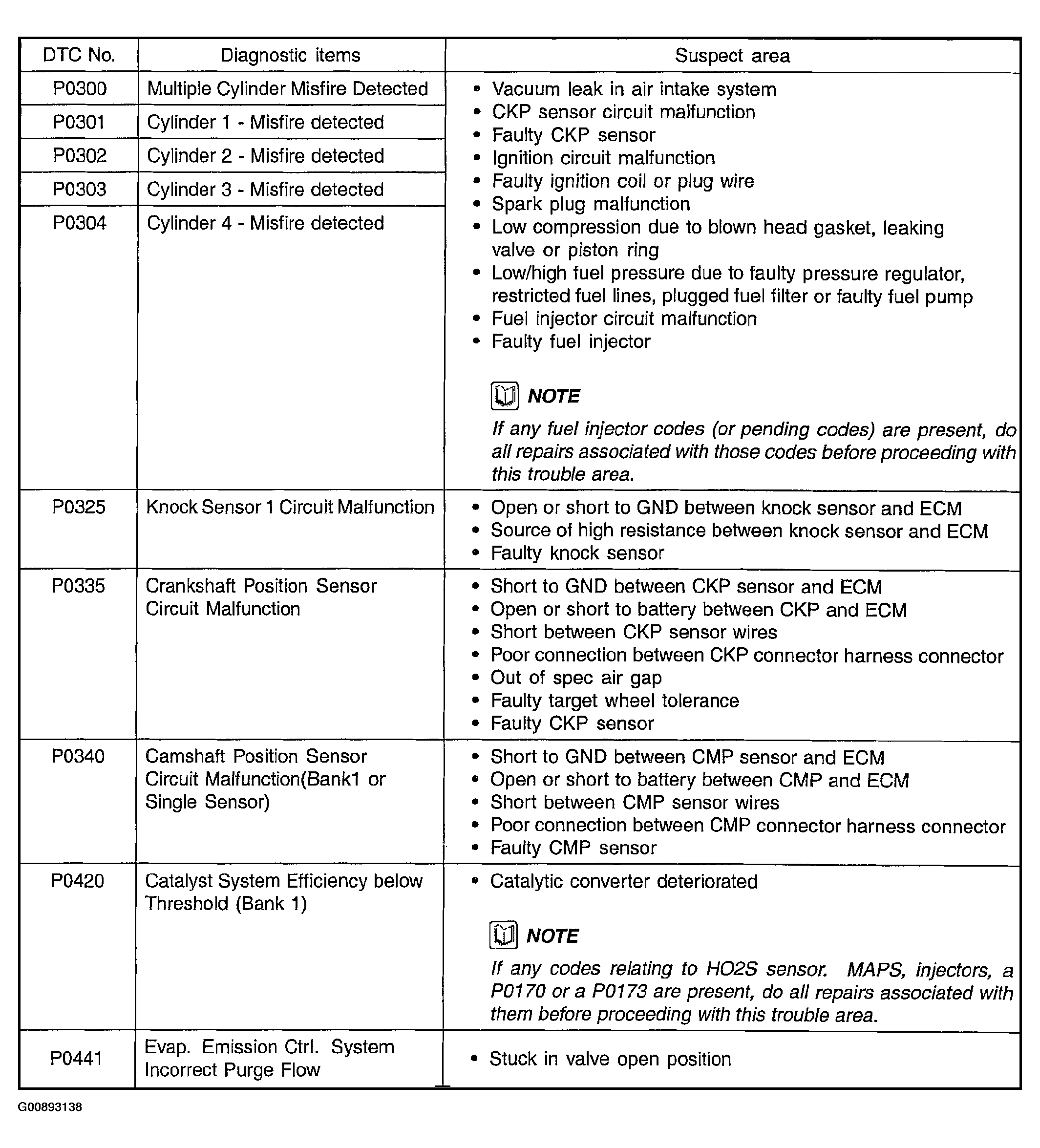

Fig 5: DTC P0300, P0301, P0302, P0303, P0304, P0325, P0335, P0340, P0420 & P0441 Suspect Areas

Courtesy of HYUNDAI MOTOR CO.

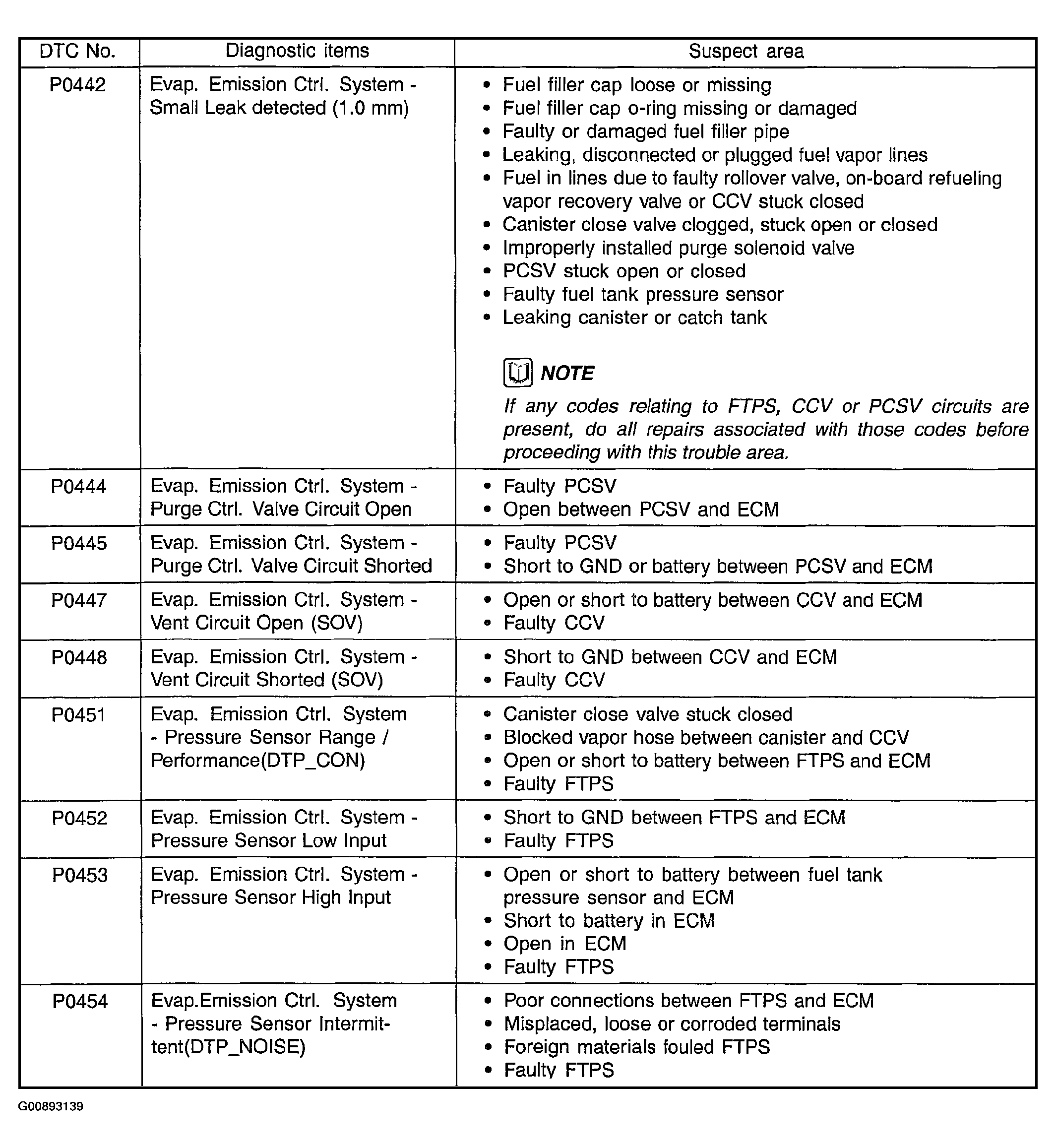

Fig 6: DTC P0442, P0444, P0445, P0447, P0448, P0451, P0452, P0453 & P0454 Suspect Areas

Courtesy of HYUNDAI MOTOR CO.

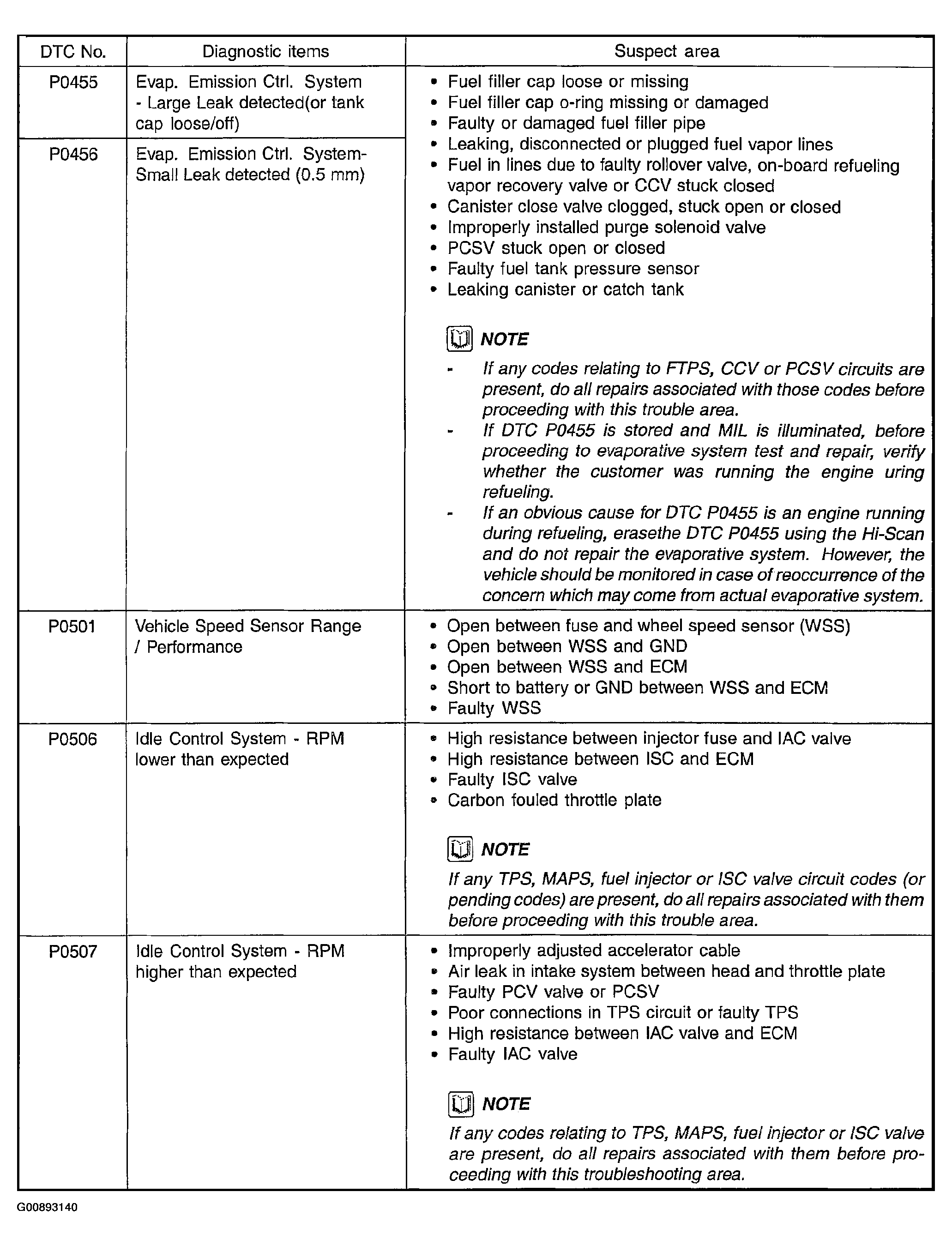

Fig 7: DTC P0455, P0456, P0501, P0506 & P0507 Suspect Areas

Courtesy of HYUNDAI MOTOR CO.

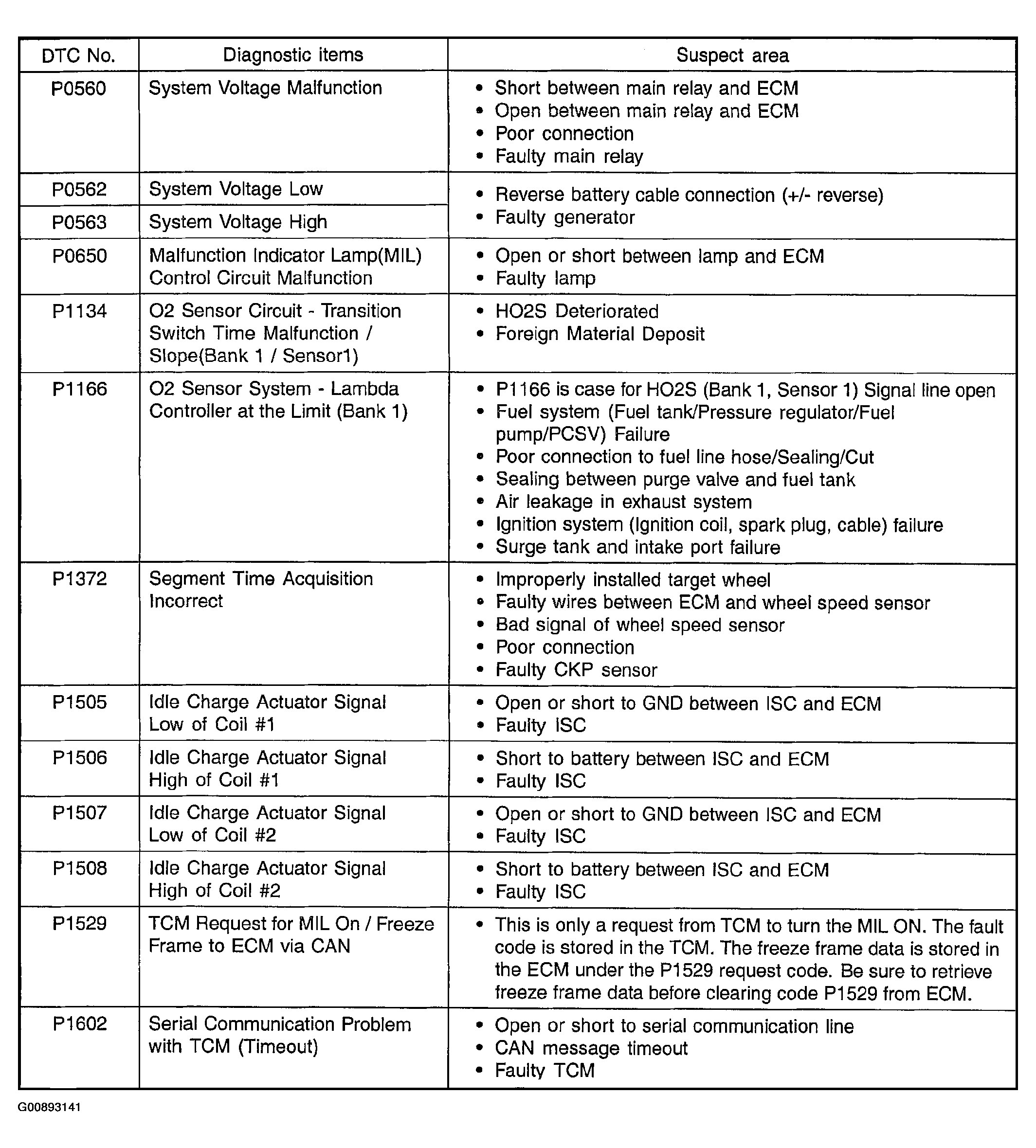

Fig 8: DTC P0560, P0562, P0563, P0650, P1134, P1166, P1372, P1505, P1506, P1507, P1508, P1529 & P1602 Suspect Areas

Courtesy of HYUNDAI MOTOR CO.
