DTC P0456: EVAP Emission Control System - Small Leak Detected (0.5 mm)
>>
DTC Detecting Condition
DTC P0456: EVAP Emission Control System - Small Leak Detected (0.5 mm): DTC Detecting Condition

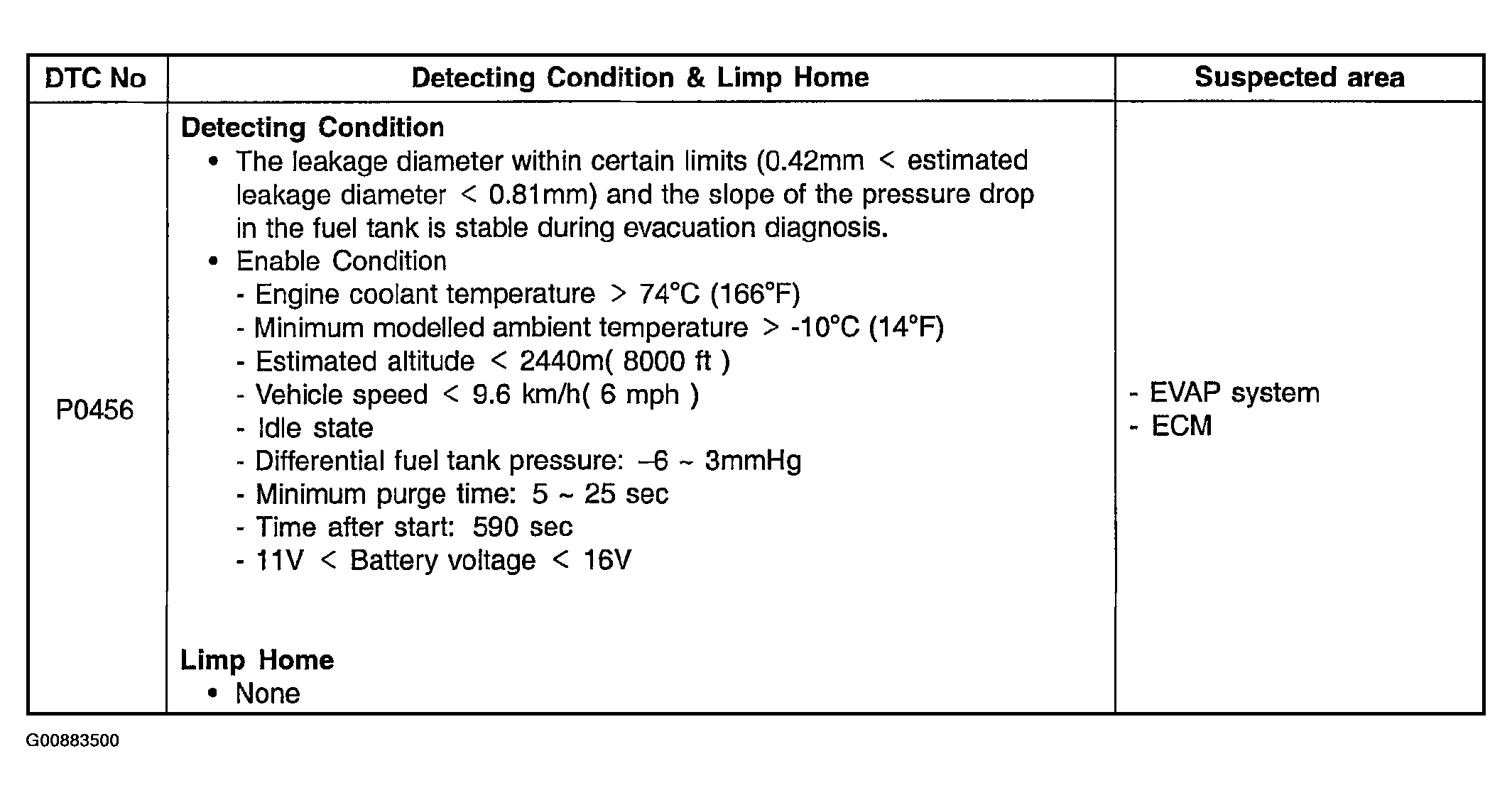

Fig 1: DTC Detecting Condition
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
