Home >> Hyundai >> 2004 >> Tiburon Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (2.0L) >> DTC Troubleshooting Procedures >> DTC P0449: EVAP Emission Control System Vent Valve/Solenoid Circuit >> DTC Detecting Condition

DTC P0449: EVAP Emission Control System Vent Valve/Solenoid Circuit: DTC Detecting Condition

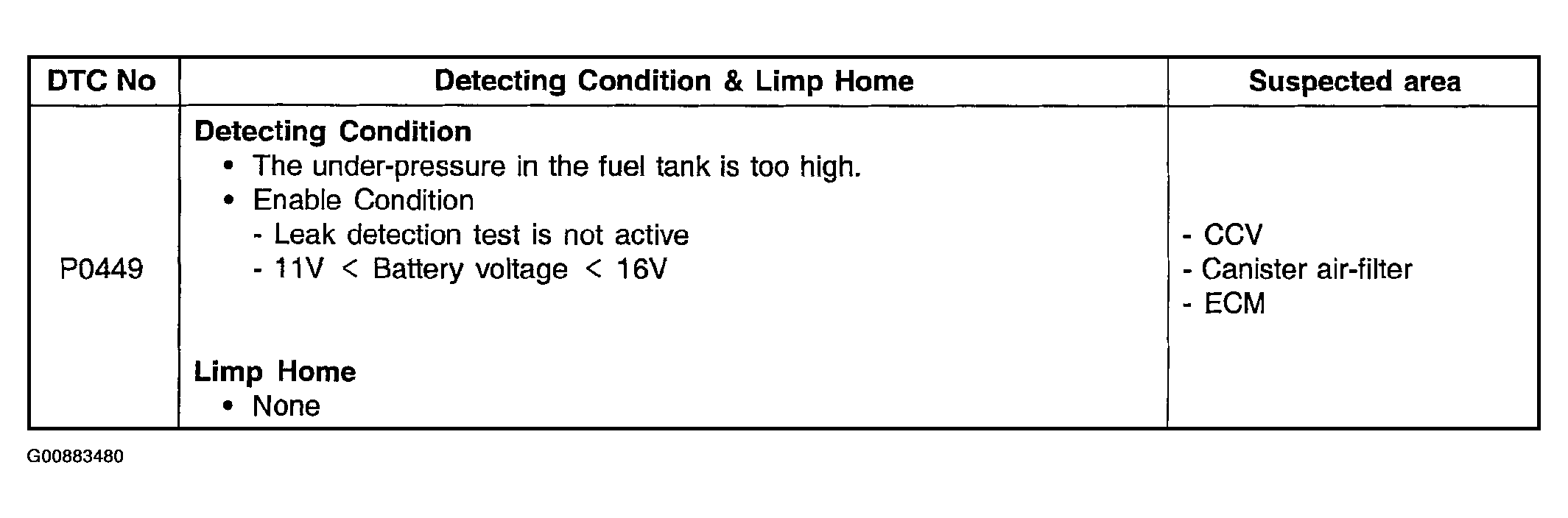

Fig 1: DTC Detecting Condition

G00883480

Courtesy of HYUNDAI MOTOR CO.
