DTC P0196: Engine Oil Temperature Sensor Circuit Range/Performance: DTC Detecting Condition

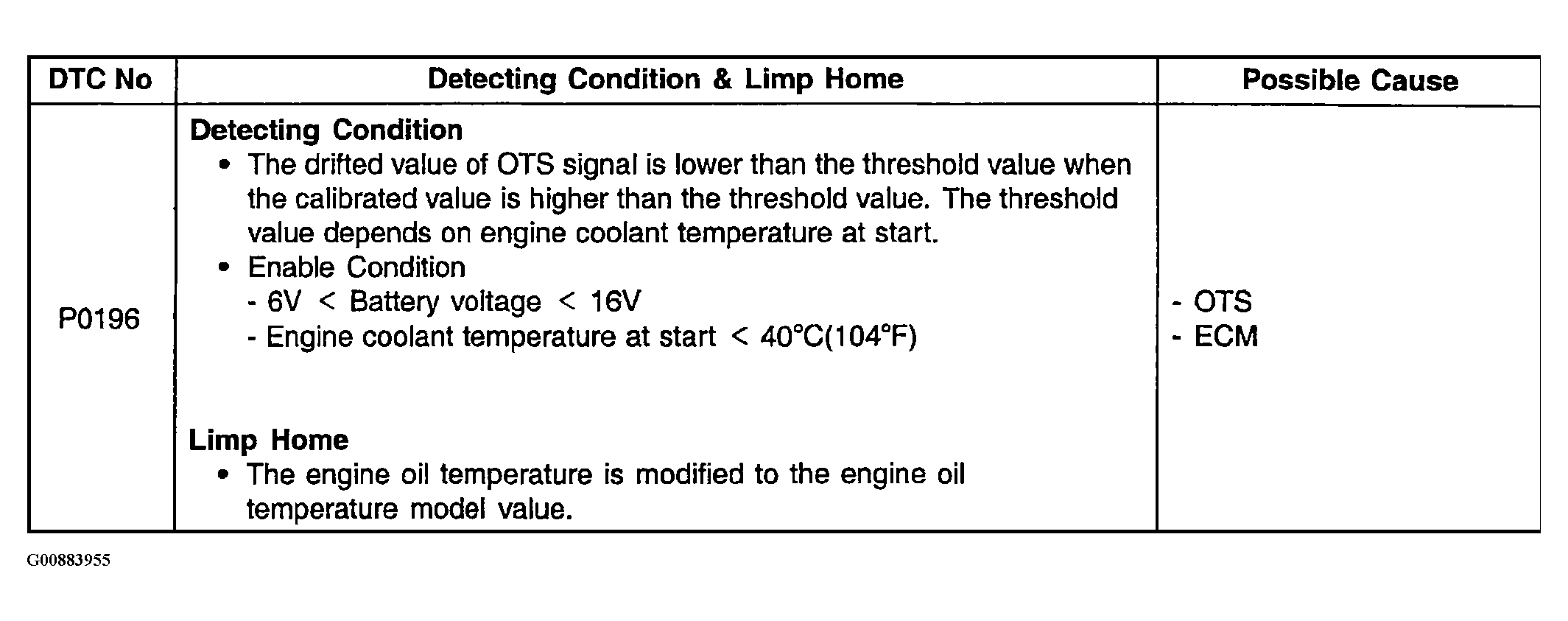

Fig 1: DTC Detecting Condition

G00883955

Courtesy of HYUNDAI MOTOR CO.
