Sensor Wheel

  1. Remove the crankshaft sensor wheel.
  2. Check the crankshaft sensor wheel for damage, crack and wear. Replace if necessary.
  3. Check the clearance between crankshaft sensor wheel and crank position sensor with a depth gauge.

    Standard value

    Clearance between crankshaft sensor wheel and crank position sensor :

    0.5 ~ 1.1mm (0.020 ~ 0.043in.)

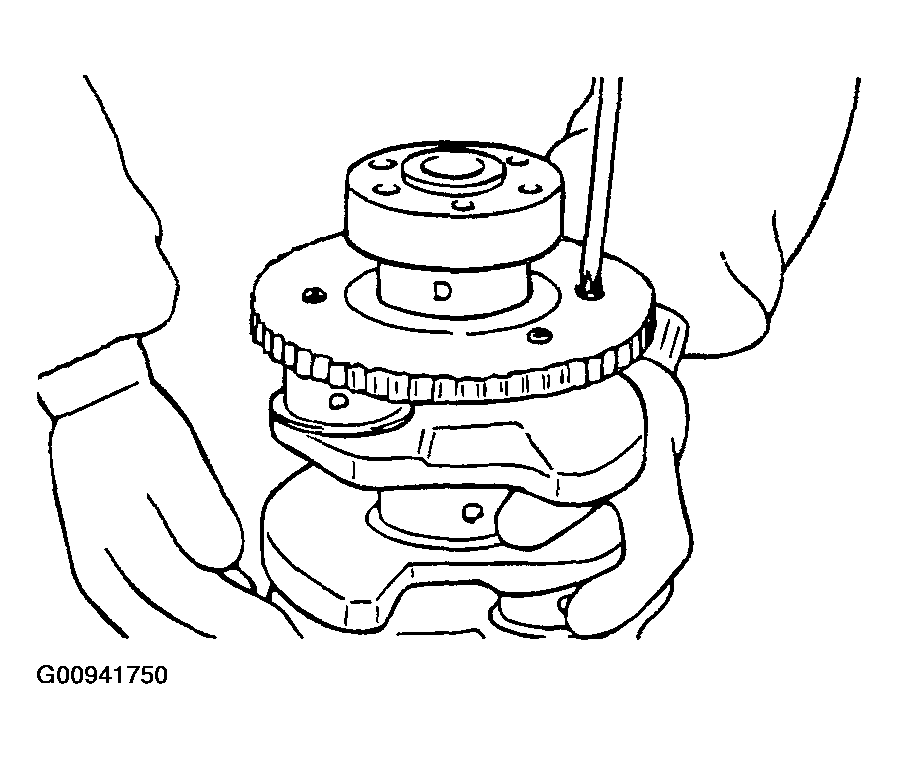

Fig 1: Checking Clearance Between Crankshaft Sensor Wheel & Crank Position Sensor
G00941750Courtesy of HYUNDAI MOTOR CO.
NOTE:
  • Measure the depth of the top of the sensor wheel tooth and the cylinder block mounting surface.
  • Measure the difference between sensor length and depth.
  • Sensor length is the distance between the end of sensor and inner point of contacting face.
