Intake Manifold: Removal

  1. Remove the engine cover.
  2. Remove the intake air hose connected to the throttle body.
  3. Remove the accelerator cable.
  4. Remove the P.C.V. hose and brake booster vacuum hoses.
  5. Disconnect the vacuum hose connections, ISA and TPS connector.

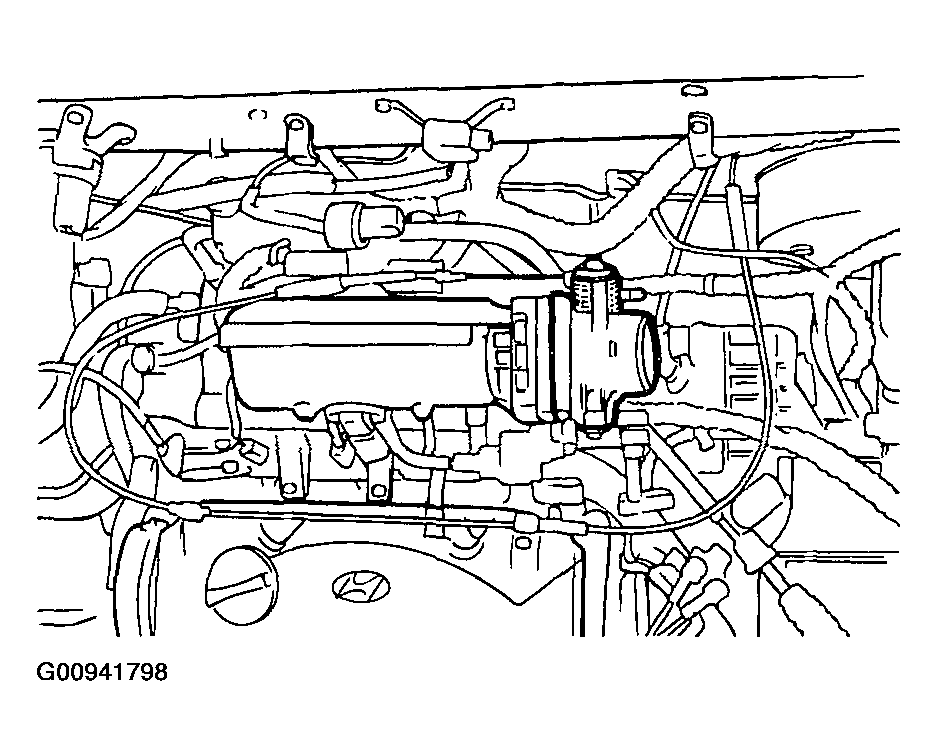

    Fig 1: Disconnecting ISA & TPS Vacuum Hose Connections
    G00941798Courtesy of HYUNDAI MOTOR CO.
  6. Disconnect the high pressure fuel hose connection after relieving pressure in the fuel rail to prevent fuel from spilling.
  7. Remove the intake manifold.
  8. Remove the intake manifold assembly and gasket.

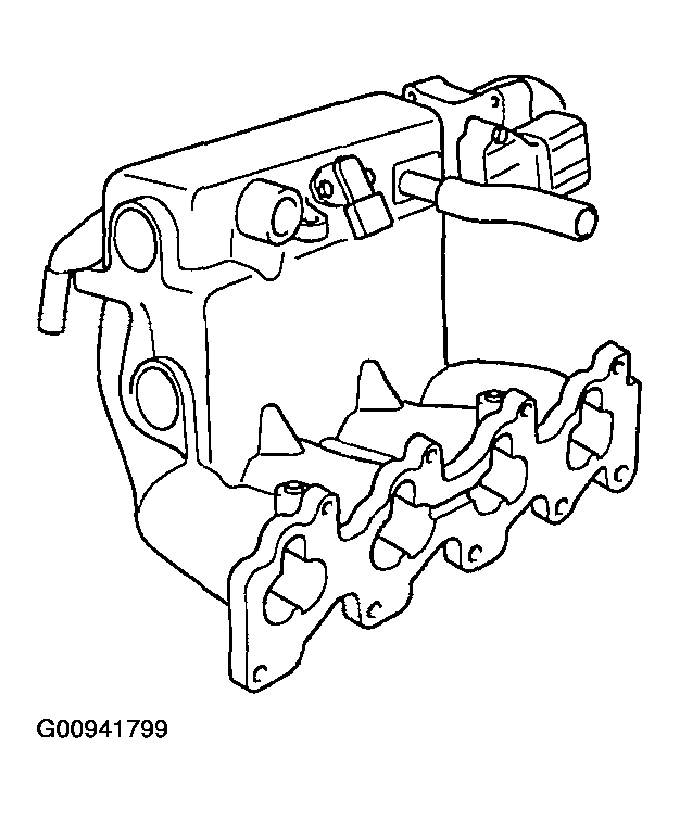

    Fig 2: Removing Intake Manifold Assembly & Gasket
    G00941799Courtesy of HYUNDAI MOTOR CO.
  9. Disconnect the fuel injector harness connector.
  10. Remove the delivery pipe with the fuel injectors.
CAUTION: Be careful not to drop the injectors when removing the delivery pipe.
