Main Moving System: Crankshaft: Components

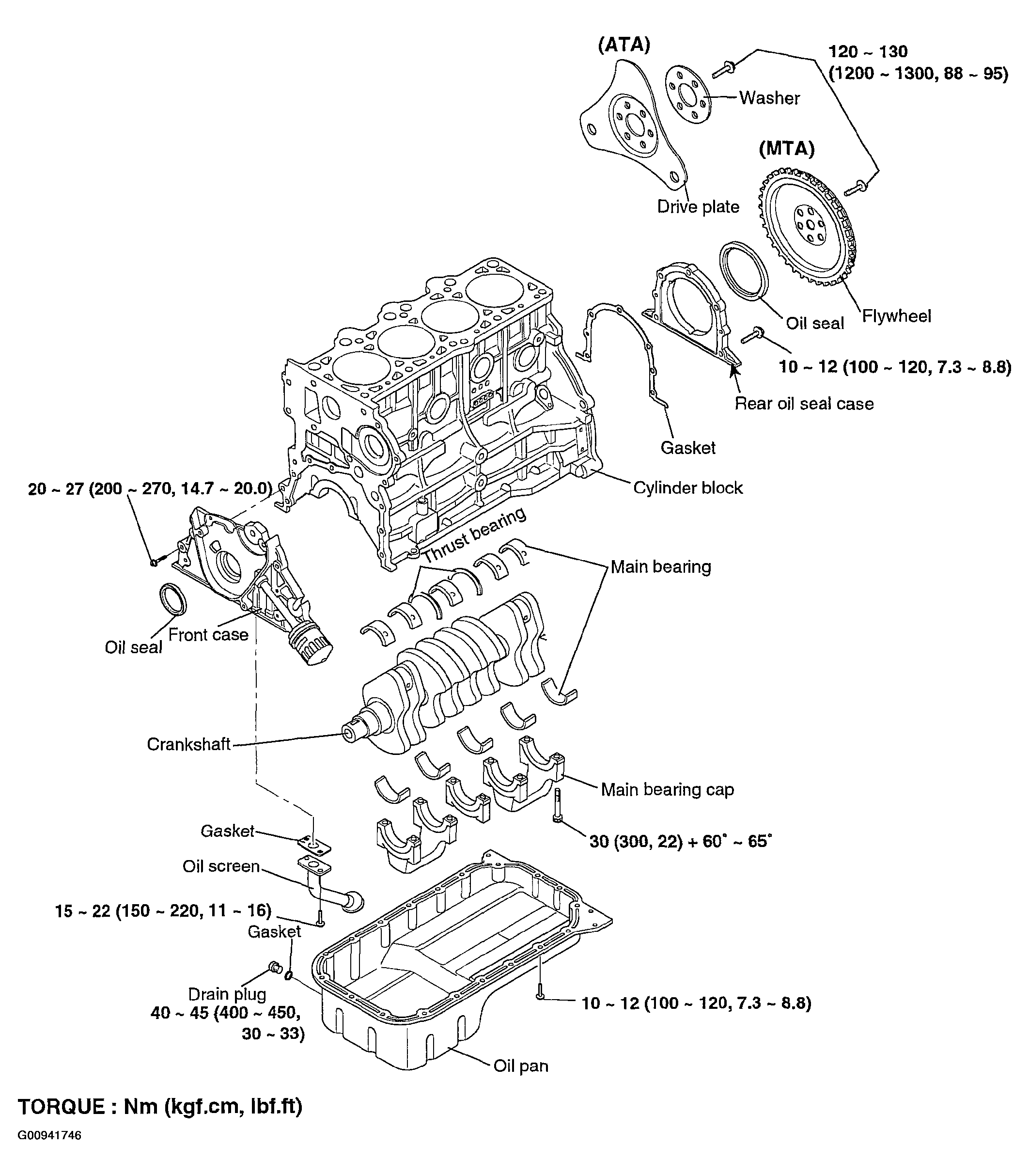

Fig 1: Exploded View Of Crankshaft Components

G00941746

Courtesy of HYUNDAI MOTOR CO.
