Rear Wheel Speed Sensor

  1. Remove the rear wheel speed sensor mounting bolt.

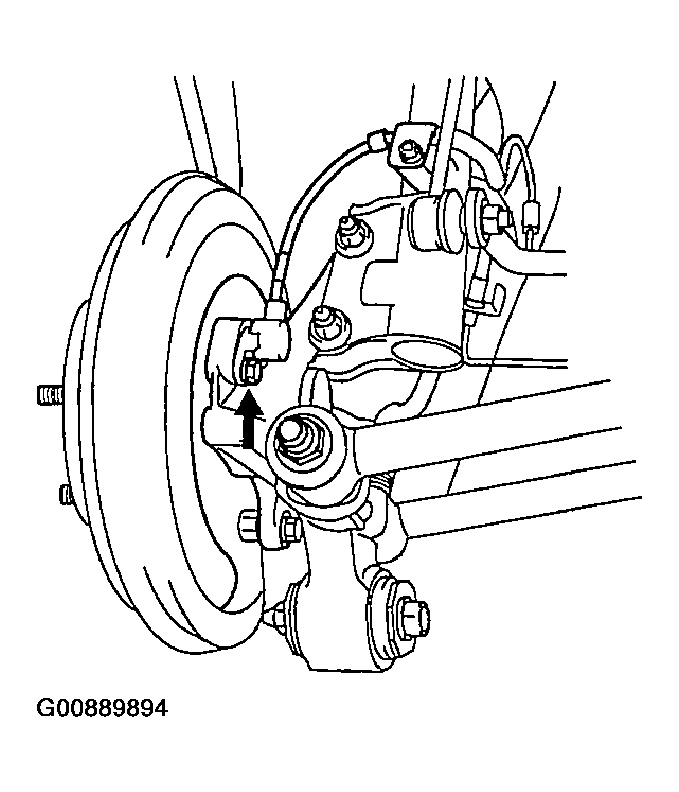

    Fig 1: Removing Rear Wheel Speed Sensor Mounting Bolt
    G00889894Courtesy of HYUNDAI MOTOR CO.
  2. Remove the luggage trim and disconnect the wire connector from the rear wheel speed sensor.

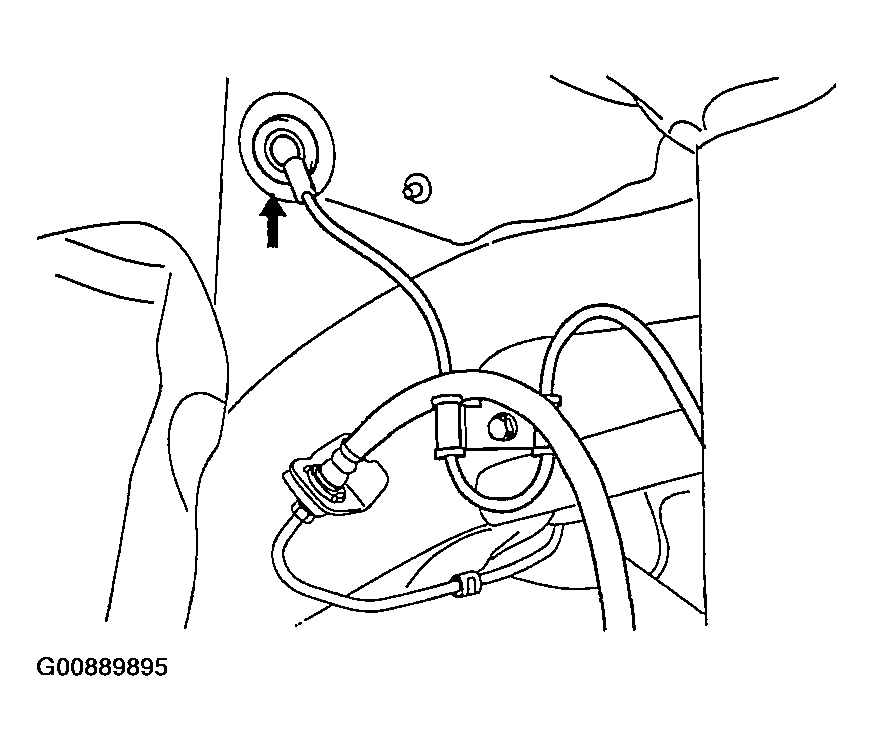

Fig 2: Disconnecting Wire Connector From Rear Wheel Speed Sensor
G00889895Courtesy of HYUNDAI MOTOR CO.
