Body Exterior: Exterior: Mirror: Components

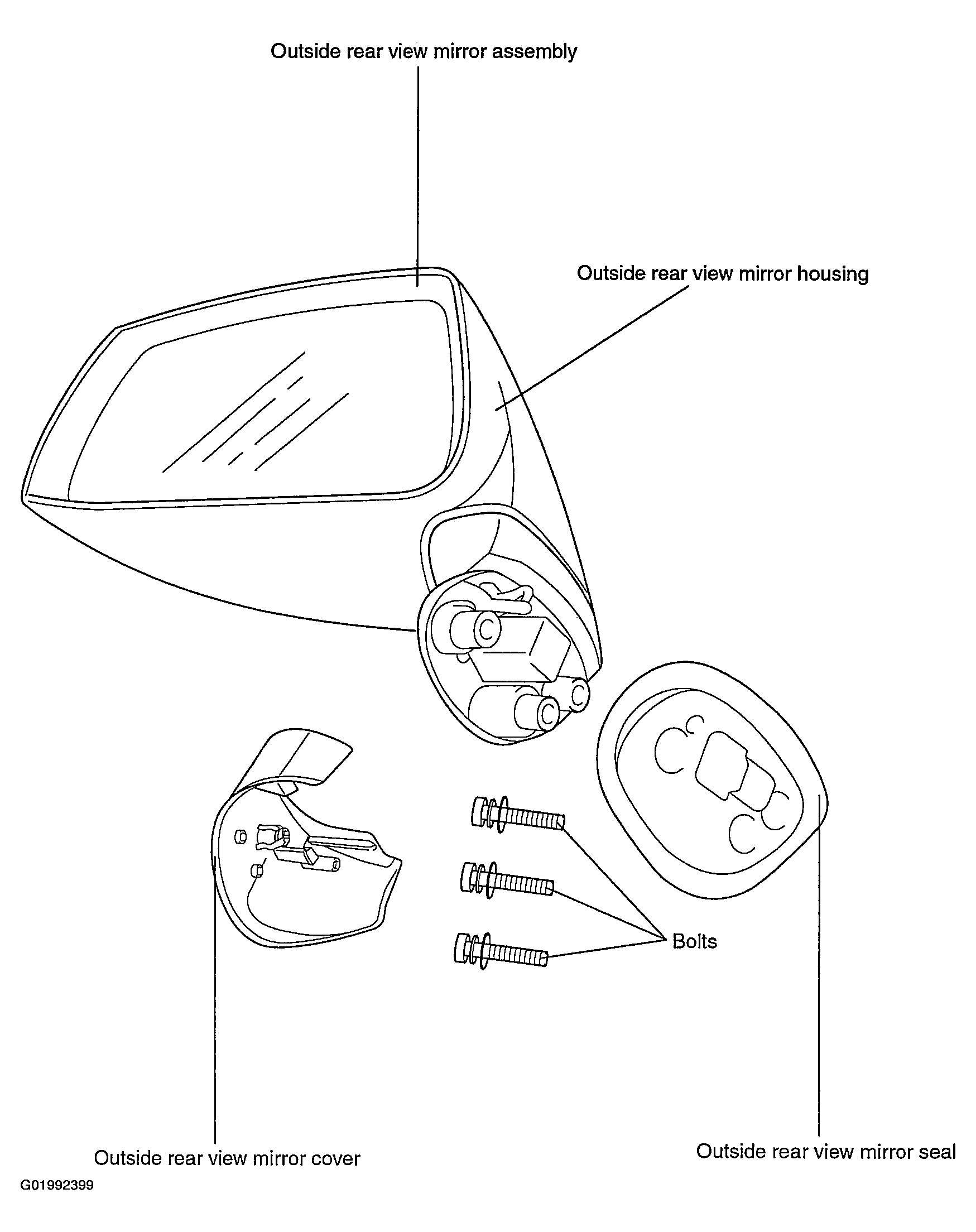

Fig 1: Identifying Mirror Components

G01992399

Courtesy of HYUNDAI MOTOR CO.
