Cruise Control System
>>
Circuit Diagram For Cruise Control System
Circuit Diagram For Cruise Control System

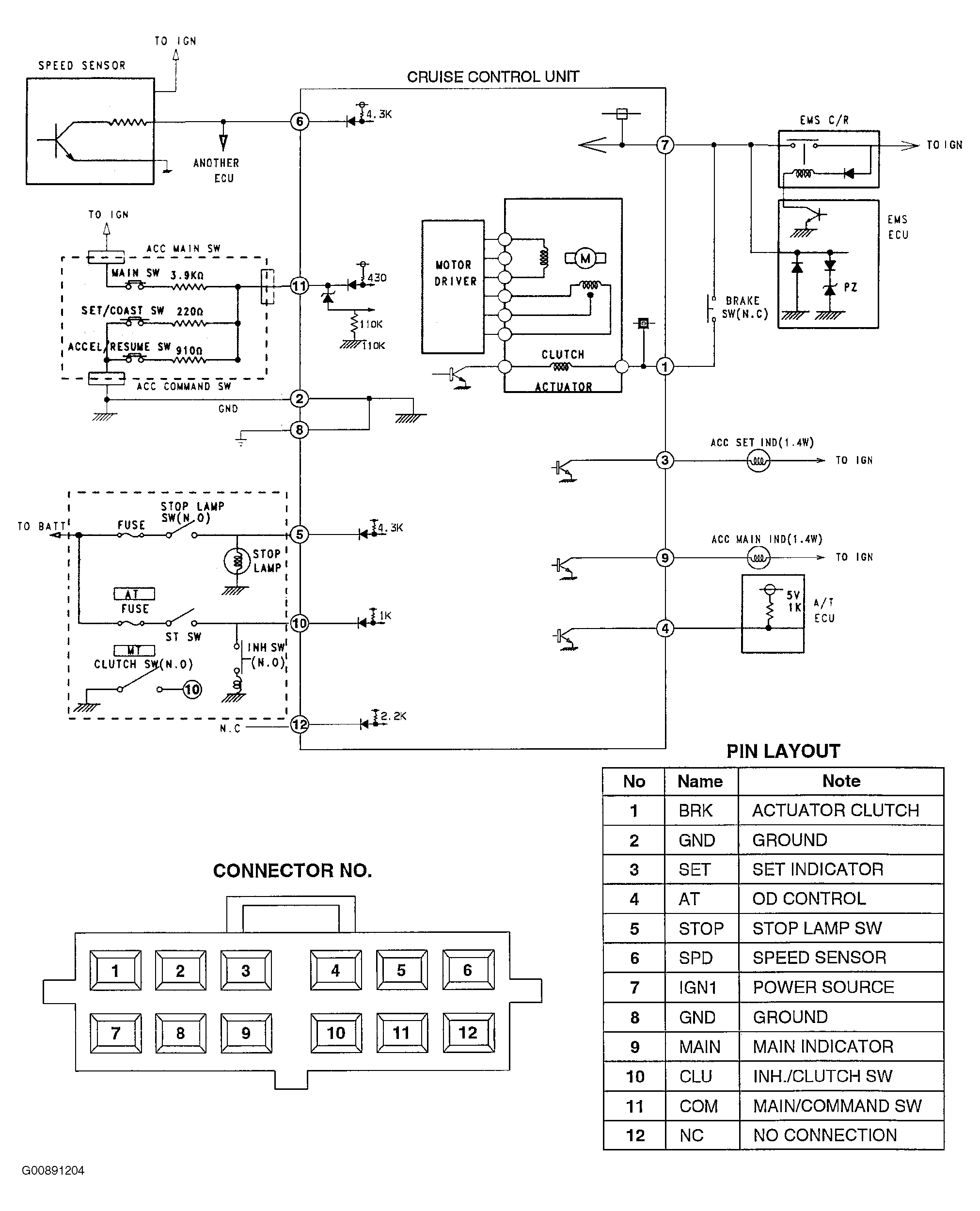

Fig 1: Circuit Diagram For Cruise Control System
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
