Inspection Procedure 1

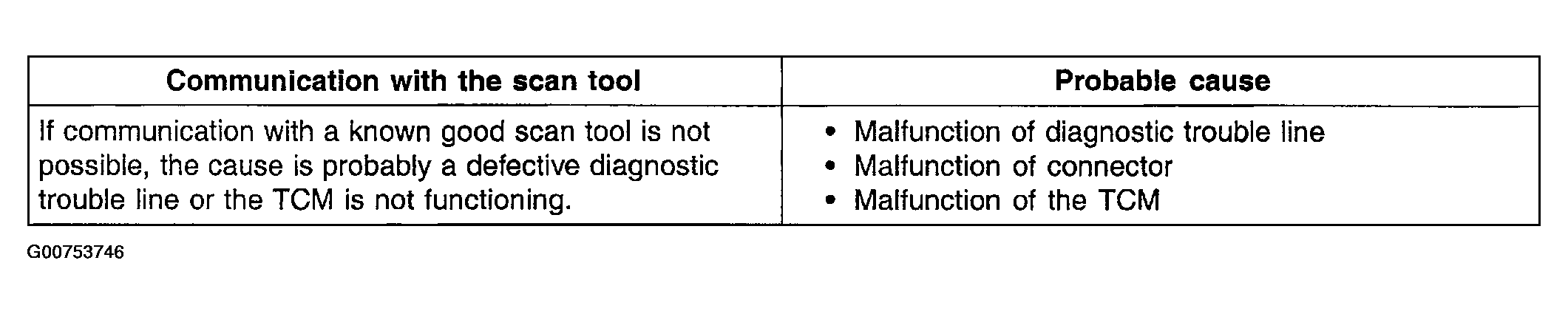

Fig 1: No Communication With Scan Tool, Possible Causes Table
G00753746Courtesy of HYUNDAI MOTOR CO.

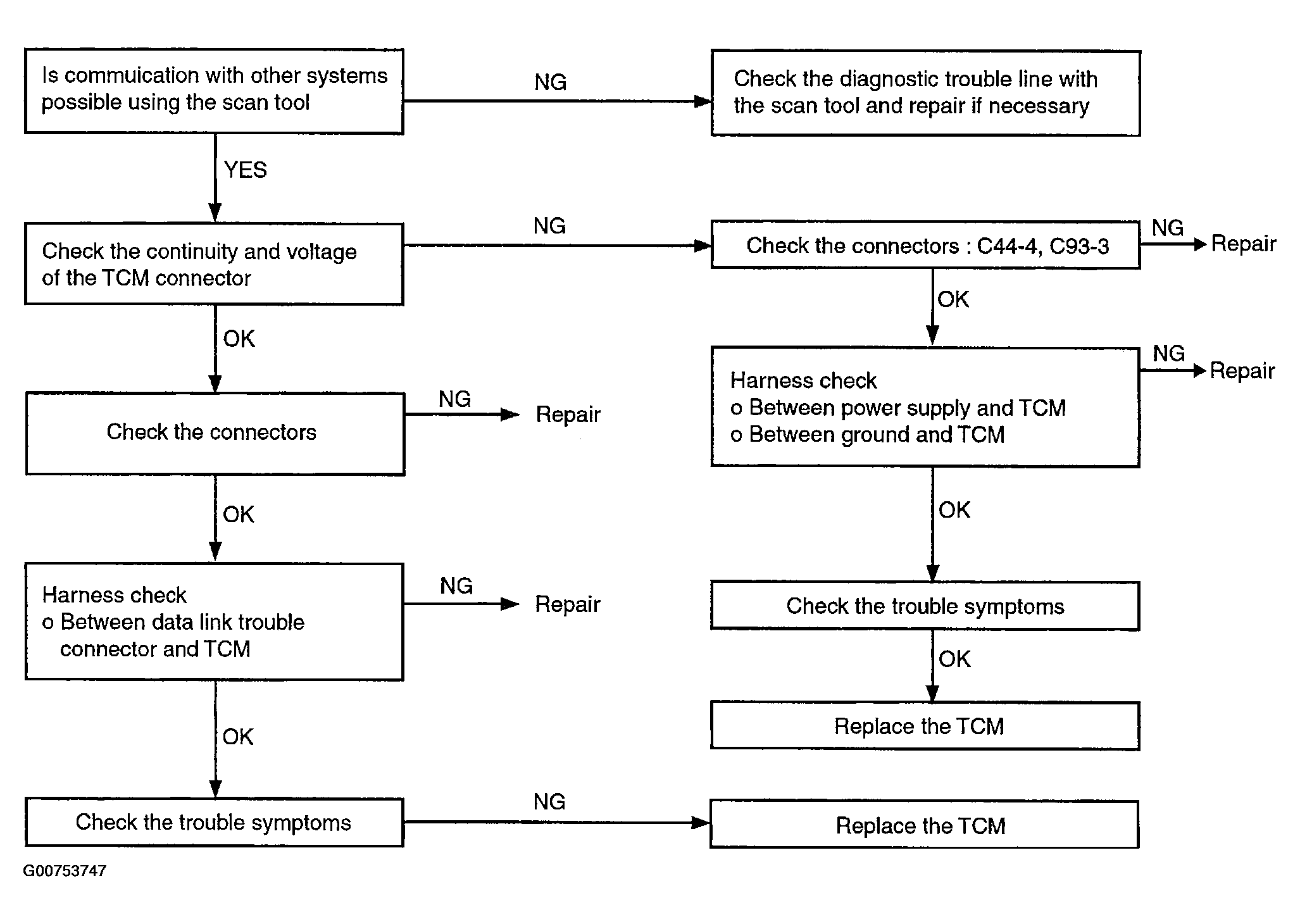

Fig 2: No Communication With Scan Tool, Diagnostic Flow Chart
G00753747Courtesy of HYUNDAI MOTOR CO.
