Inspection Procedure 7

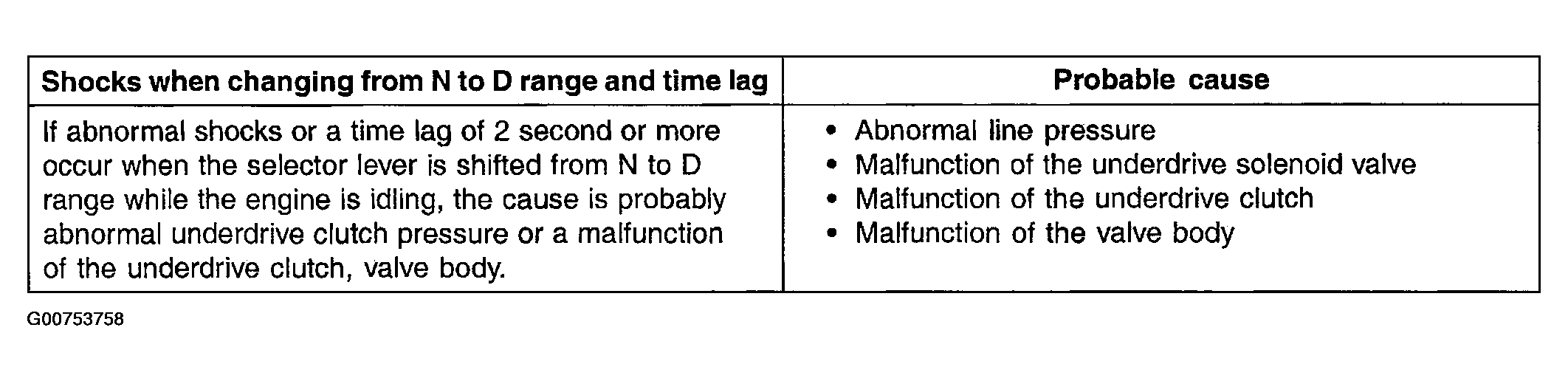

Fig 1: Shocks When Changing From Neutral-To-Drive & Time Lag, Possible Causes Table
G00753758Courtesy of HYUNDAI MOTOR CO.

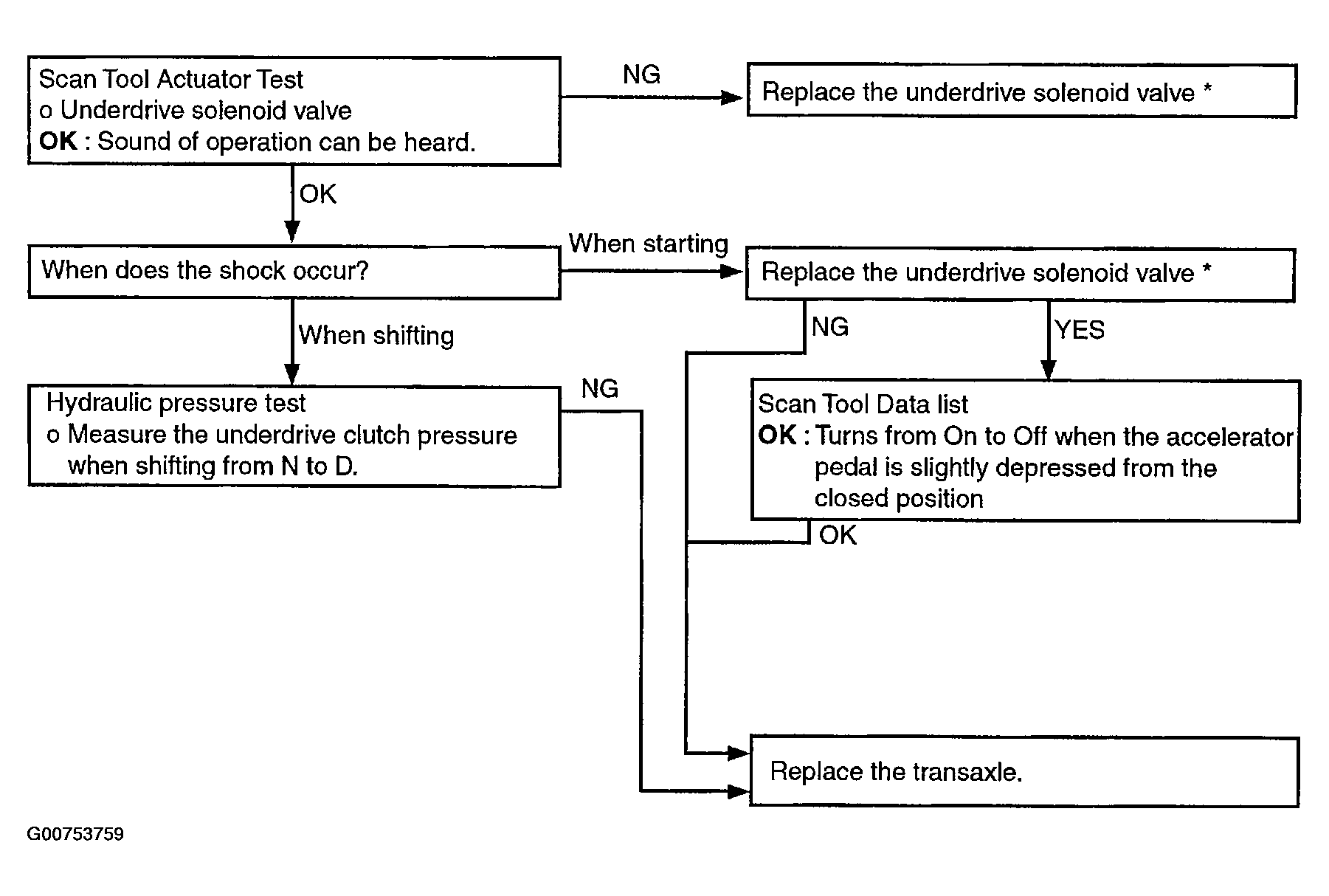

Fig 2: Shocks When Changing From Neutral-To-Drive & Time Lag, Diagnostic Flow Chart
G00753759Courtesy of HYUNDAI MOTOR CO.
