Automatic Transaxle System
>>
Automatic Transaxle System
>>
Inspection Procedure For Trouble Symptoms
>>
Inspection Procedure 10
Inspection Procedure 10

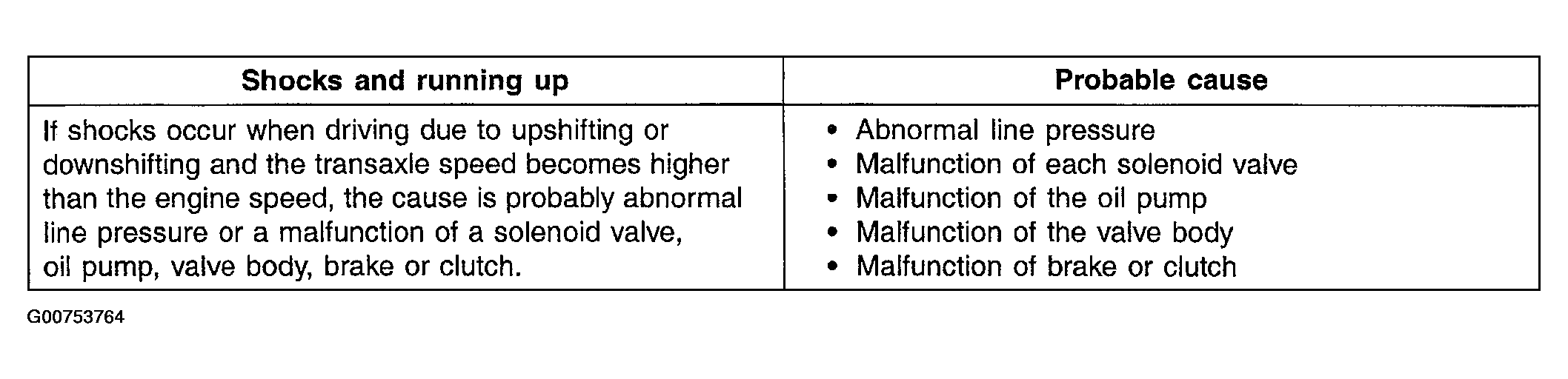

Fig 1: Shocks & Running Up, Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

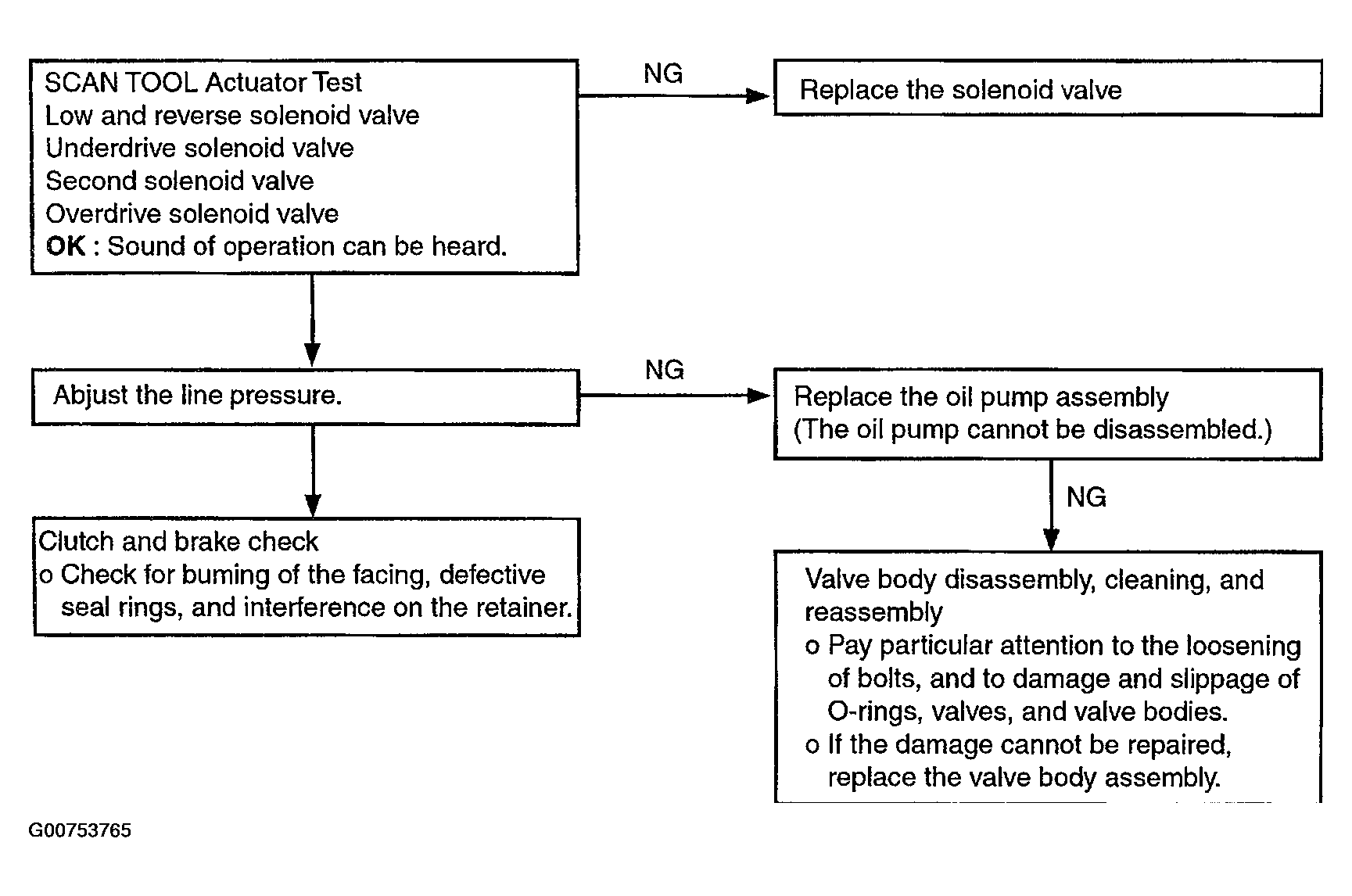

Fig 2: Shocks & Running Up, Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
