MFI Troubleshooting Procedures: Problem

Communication with scan tool is not possible. (Cannot communicate with any system)

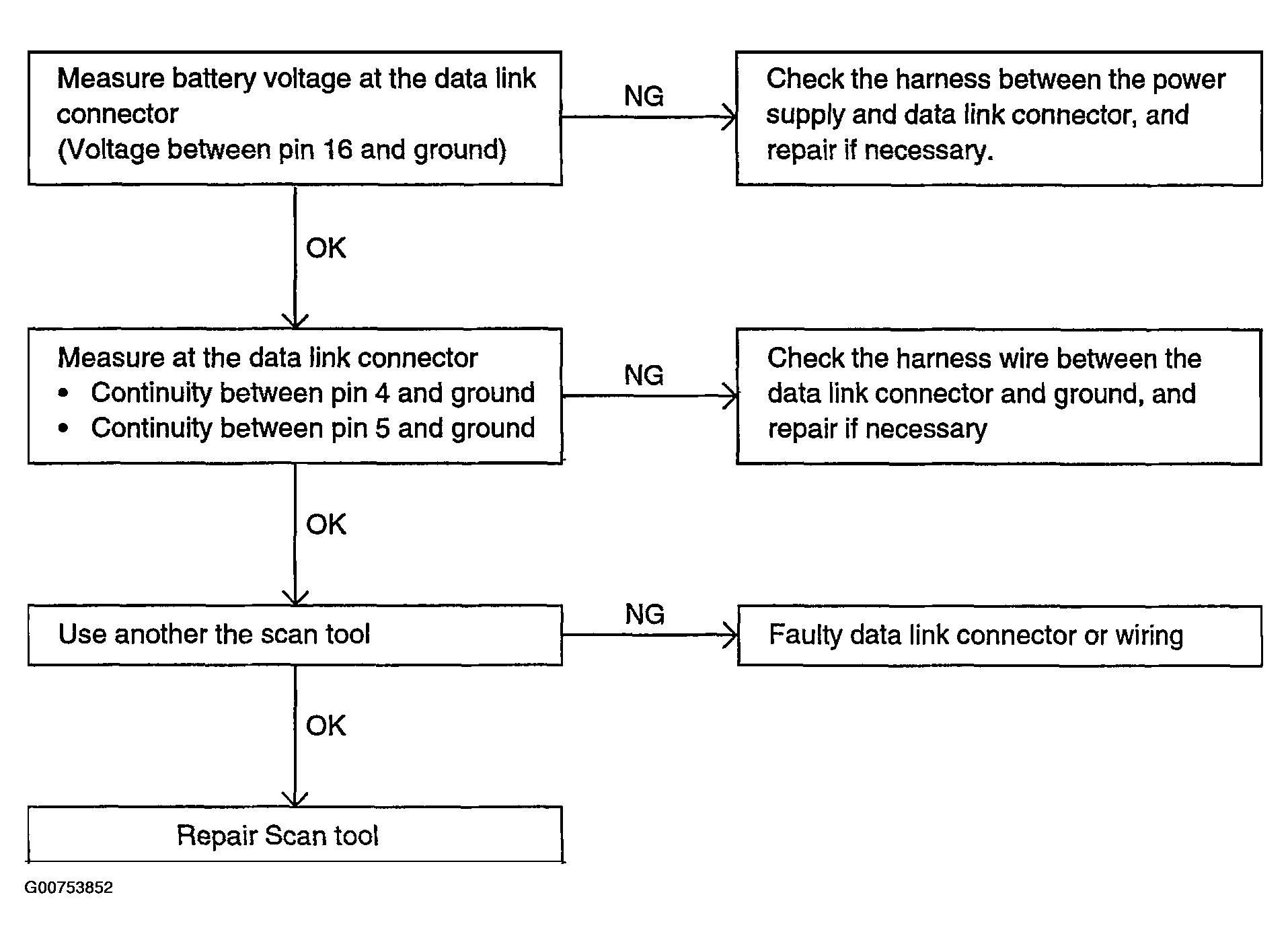

Fig 1: Unable To Communicate With Any System Diagnostic Flow Chart
G00753852Courtesy of HYUNDAI MOTOR CO.
