Intake Manifold: Installation

Install the intake manifold and delivery pipe reversing the order of the removal procedure.
Tightening torque

Intake manifold:

19 ~ 21 Nm (190 ~ 210 kg.cm, 14 ~ 15 lb.ft)

Surge tank:

15 ~ 20 Nm (150 ~ 200 kg.cm, 11 ~ 14 lb.ft)

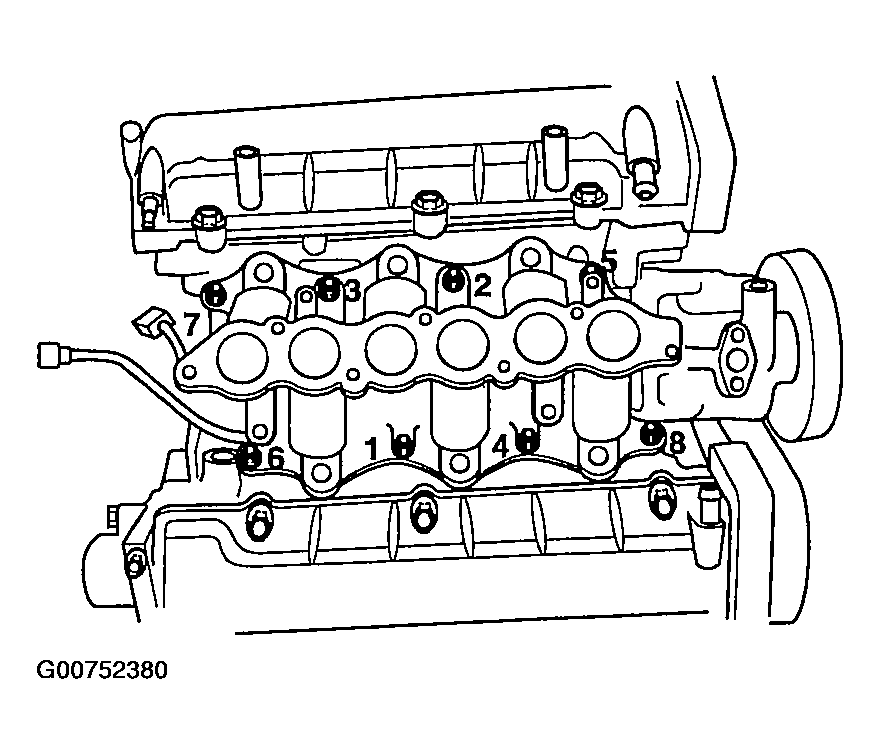

Fig 1: Identifying Intake Manifold Bolt Torque Sequence
Courtesy of HYUNDAI MOTOR CO.

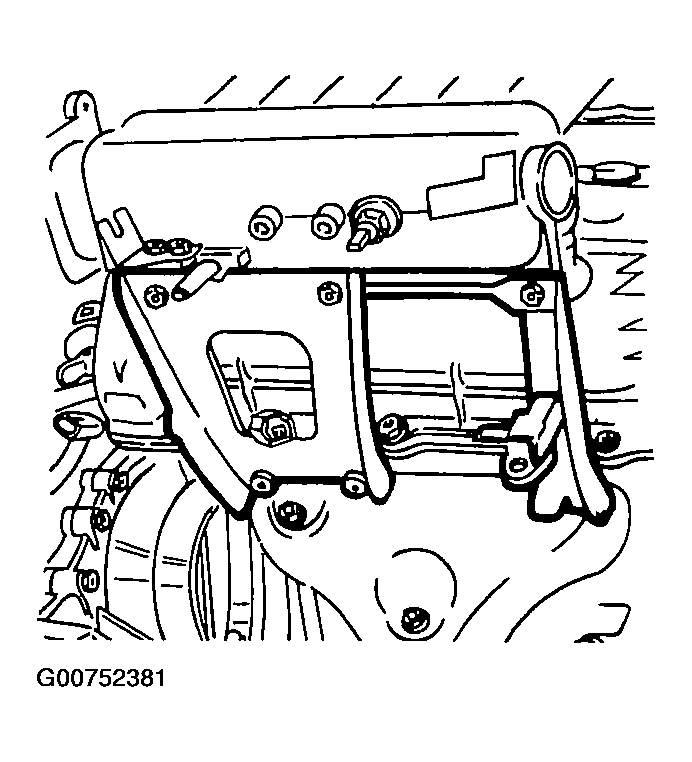

Fig 2: View Of Air Intake Surge Tank
Courtesy of HYUNDAI MOTOR CO.
