2.7L 6-Cylinder Engine: General: Troubleshooting

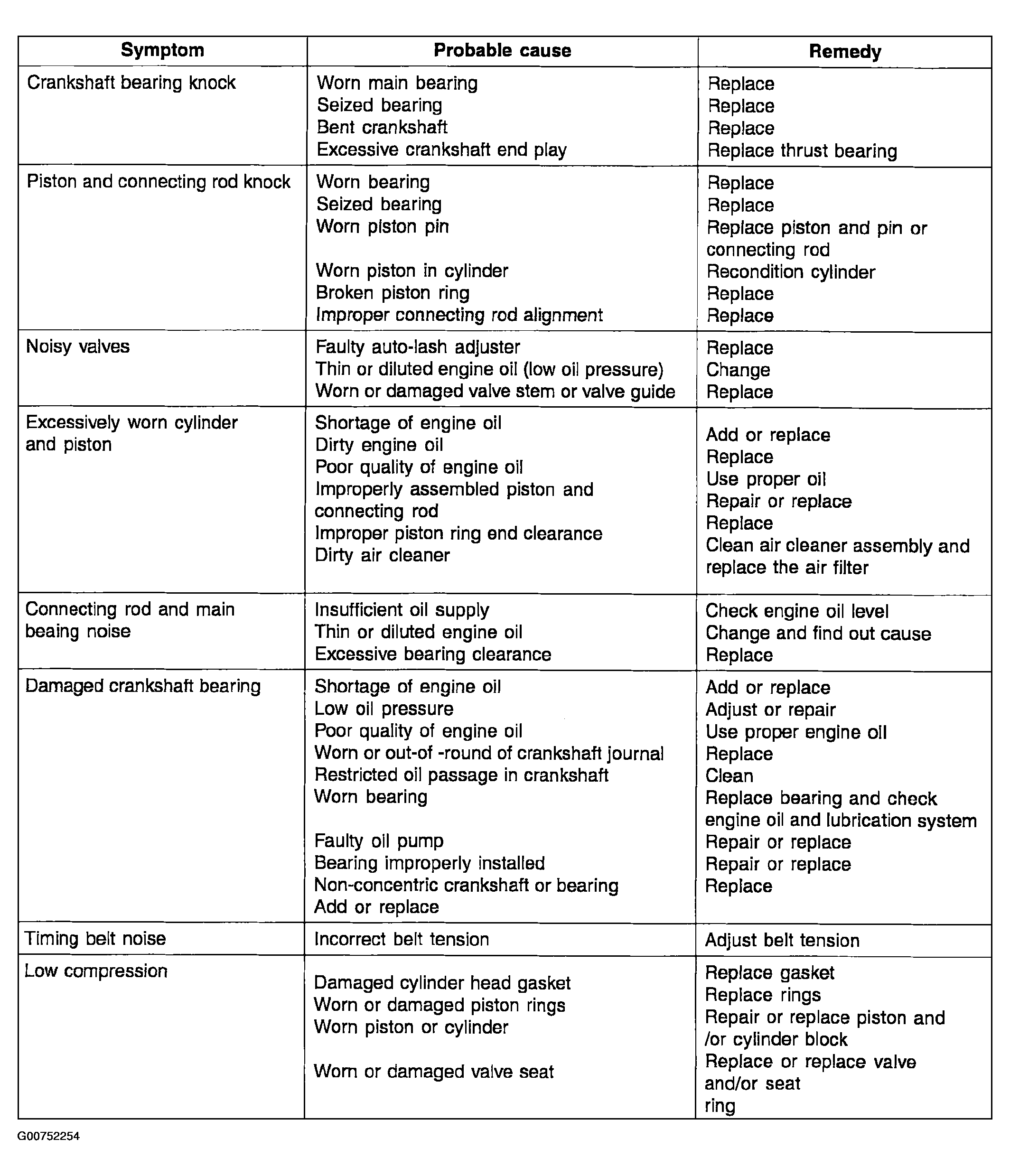

Fig 1: Troubleshooting Table (1 Of 2)

G00752254

Courtesy of HYUNDAI MOTOR CO.

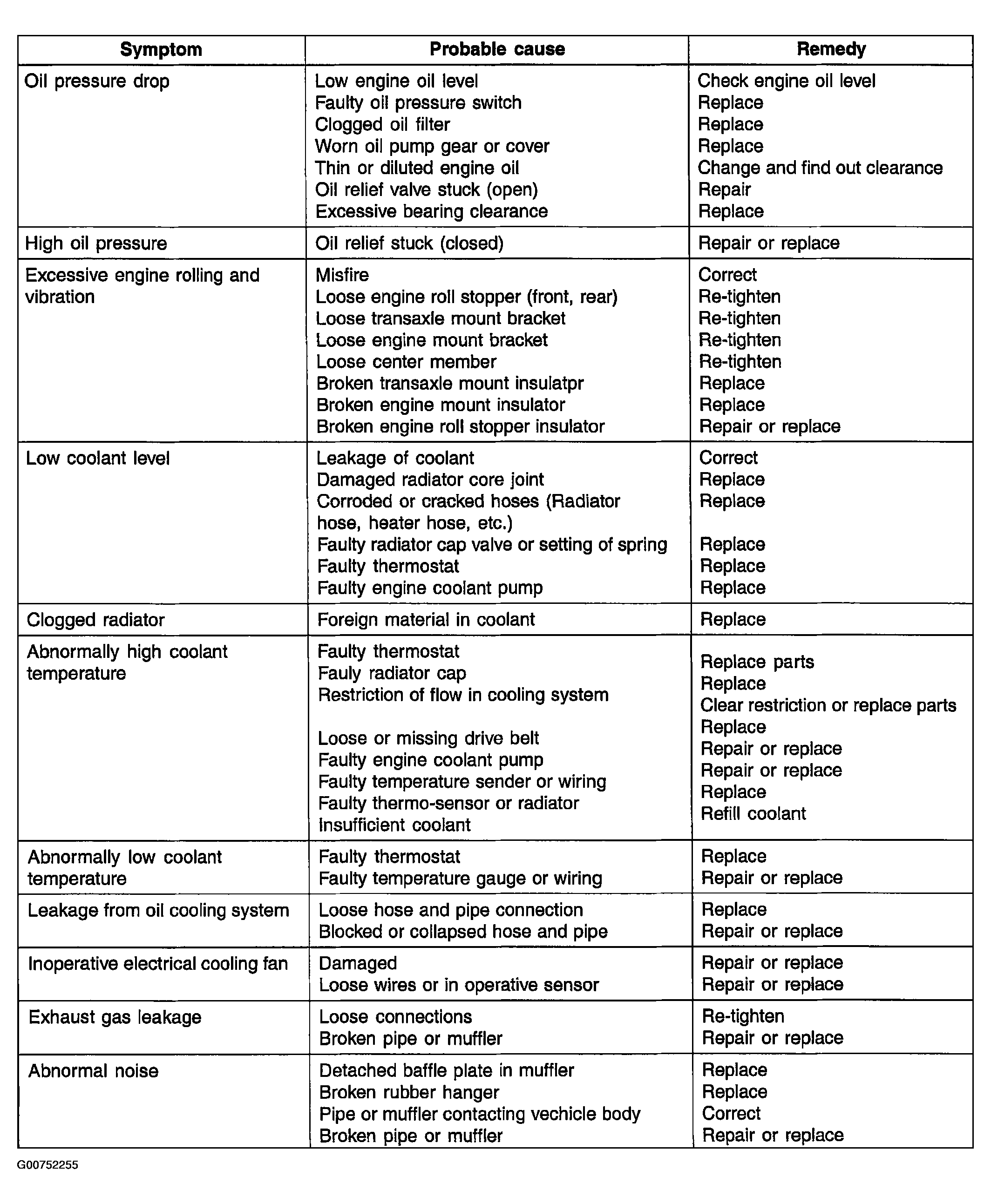

Fig 2: Troubleshooting Table (2 Of 2)

G00752255

Courtesy of HYUNDAI MOTOR CO.
