LEMON Manuals
: Even more car manuals for everyone
Home
>>
Hyundai
>>
2004
>>
Sonata GLS
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>
2.7L 6-Cylinder Engine
>>
General
>>
Special Tools
Special Tools

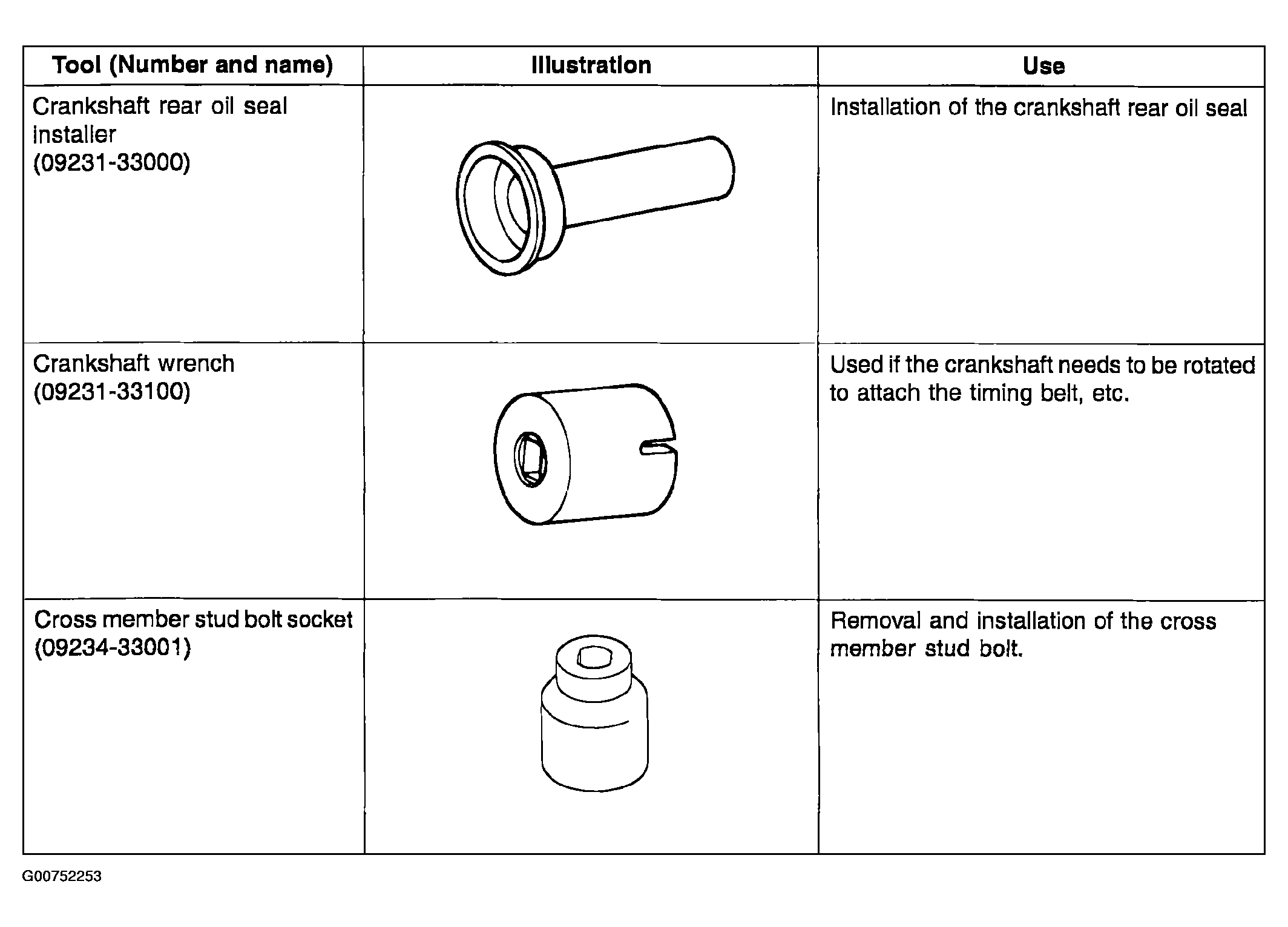

Fig 1: Identifying Special Tools Table (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

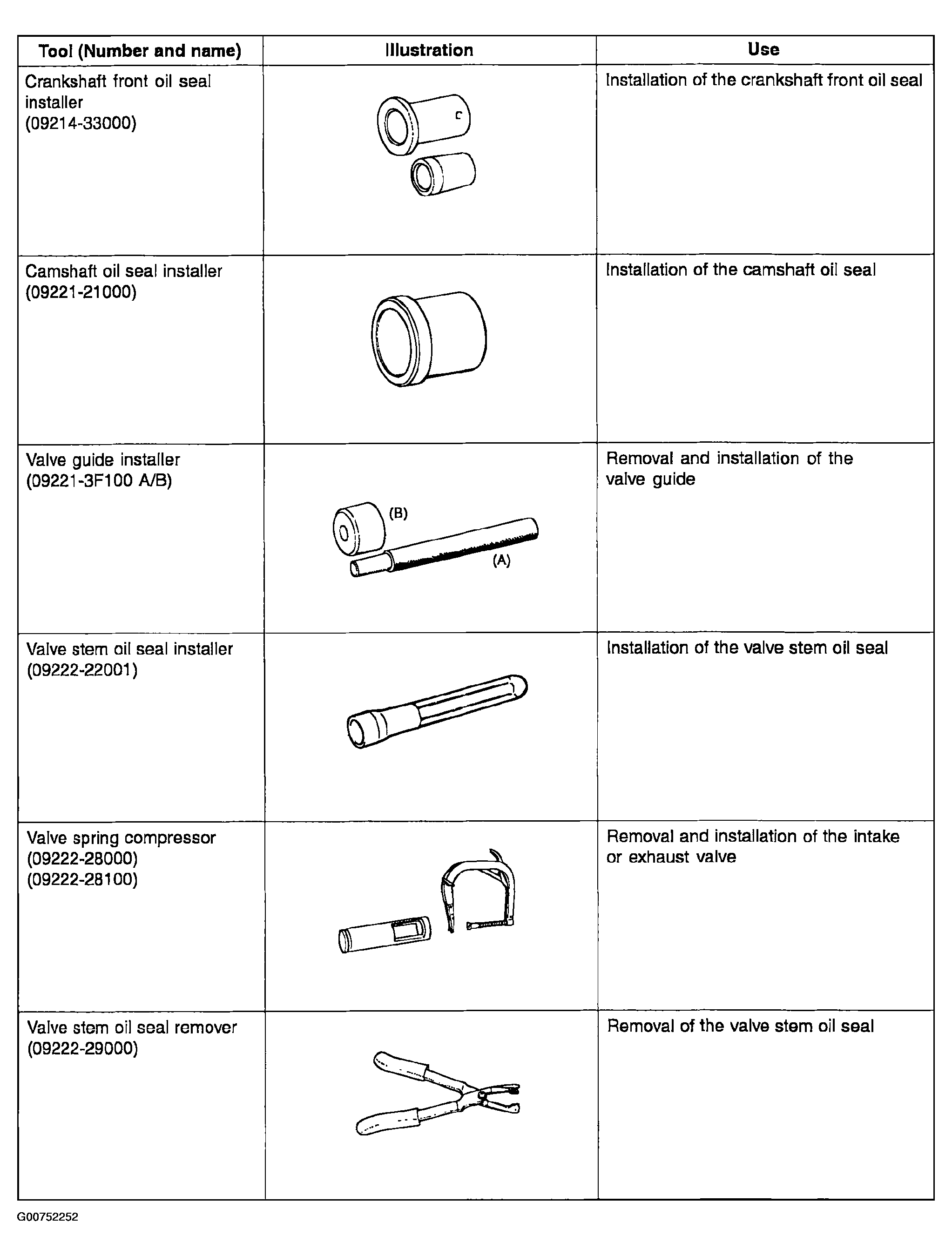

Fig 2: Identifying Special Tools Table (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
