Transaxle Mounting

  1. Remove the transaxle mounting insulator bolts.
  2. Remove the transaxle mounting bracket from the transaxle.

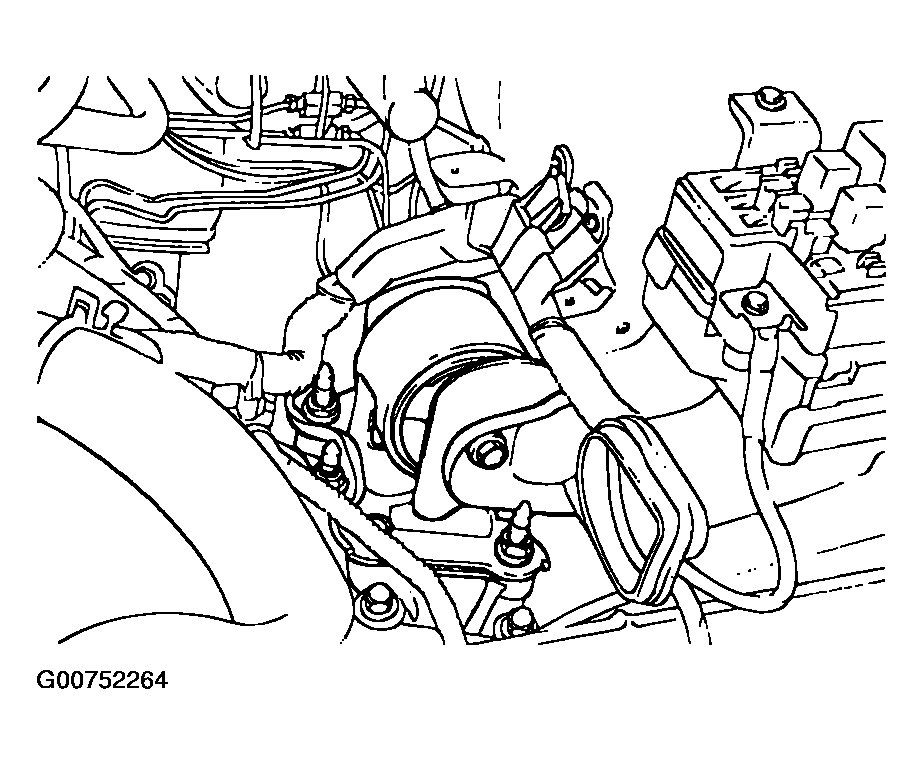

Fig 1: Identifying Transaxle Bracket
G00752264Courtesy of HYUNDAI MOTOR CO.
