Engine Coolant Pump: Components

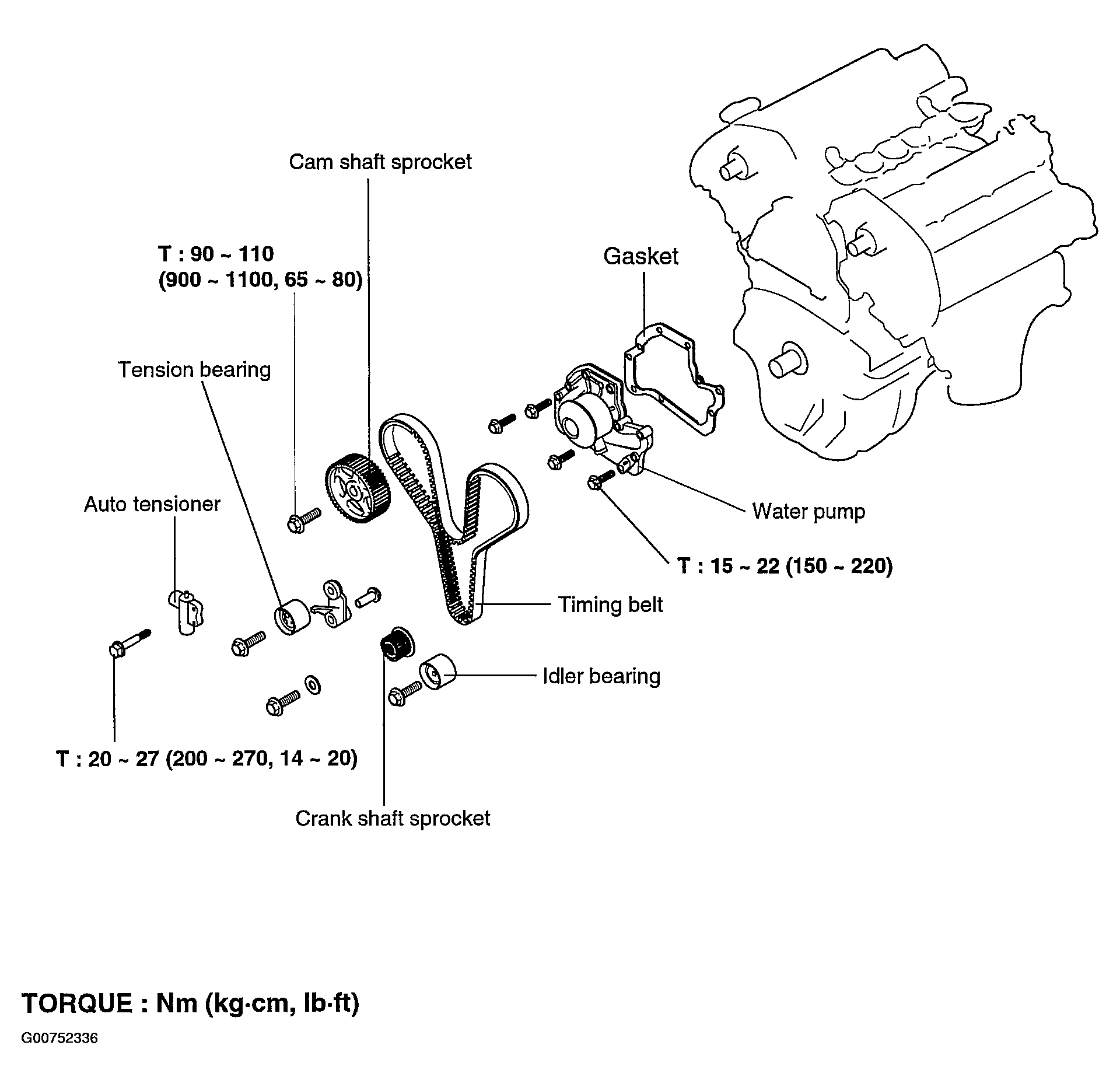

Fig 1: Engine Coolant Pump Components (1 Of 2)

G00752336

Courtesy of HYUNDAI MOTOR CO.

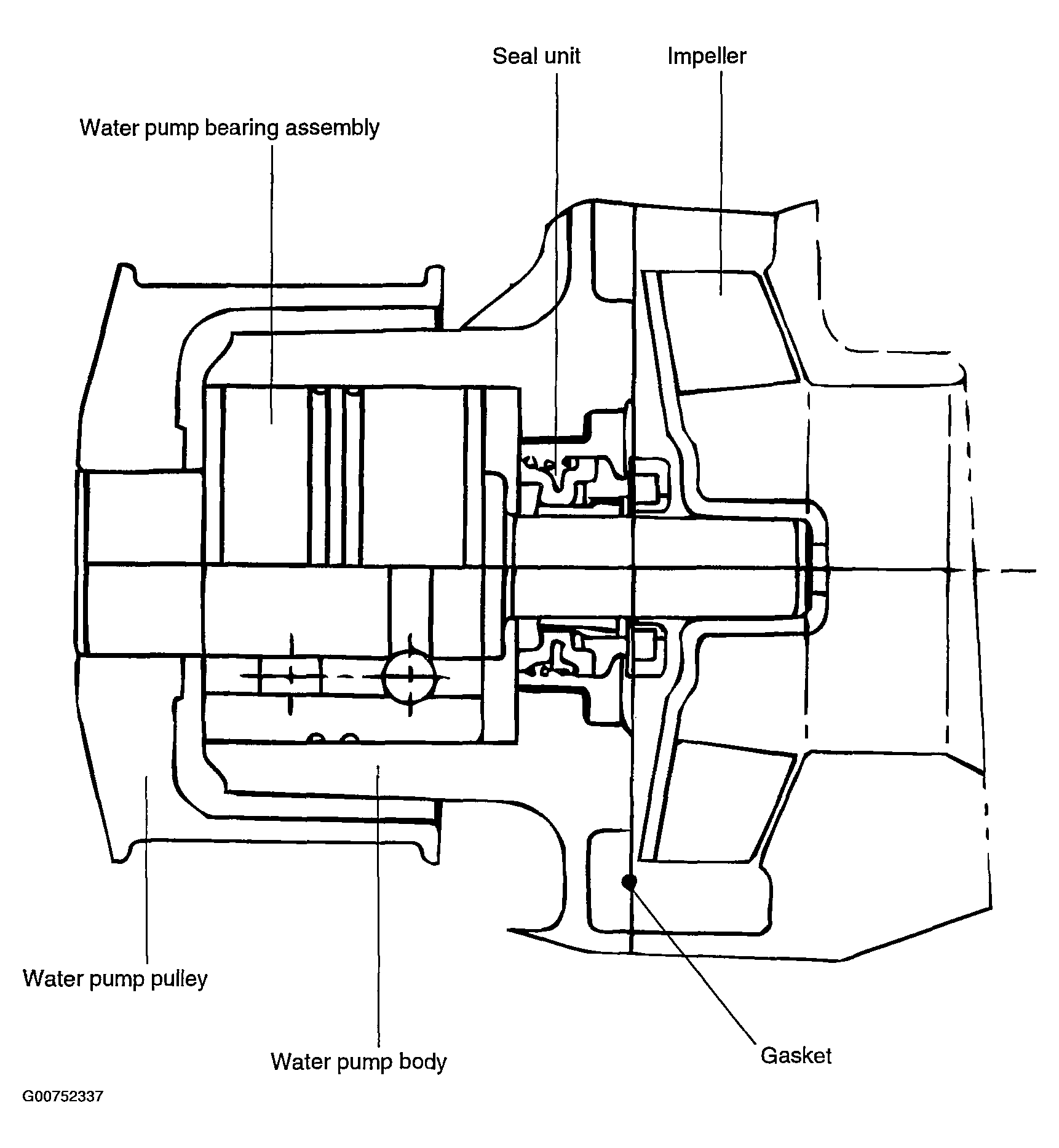

Fig 2: Engine Coolant Pump Components (2 Of 2)

G00752337

Courtesy of HYUNDAI MOTOR CO.
