Removal & Installation: Front

Remove the door window regulator handle and then remove clip using a piece of cloth (Manual type only).

Fig 1: Removing Window Regulator Handle (Manual)
Courtesy of HYUNDAI MOTOR CO.
Remove the quadrant inner cover and the rear view mirror.

Fig 2: Identifying Rear View Mirror Nuts
Courtesy of HYUNDAI MOTOR CO.
Remove the front door inside handle housing.

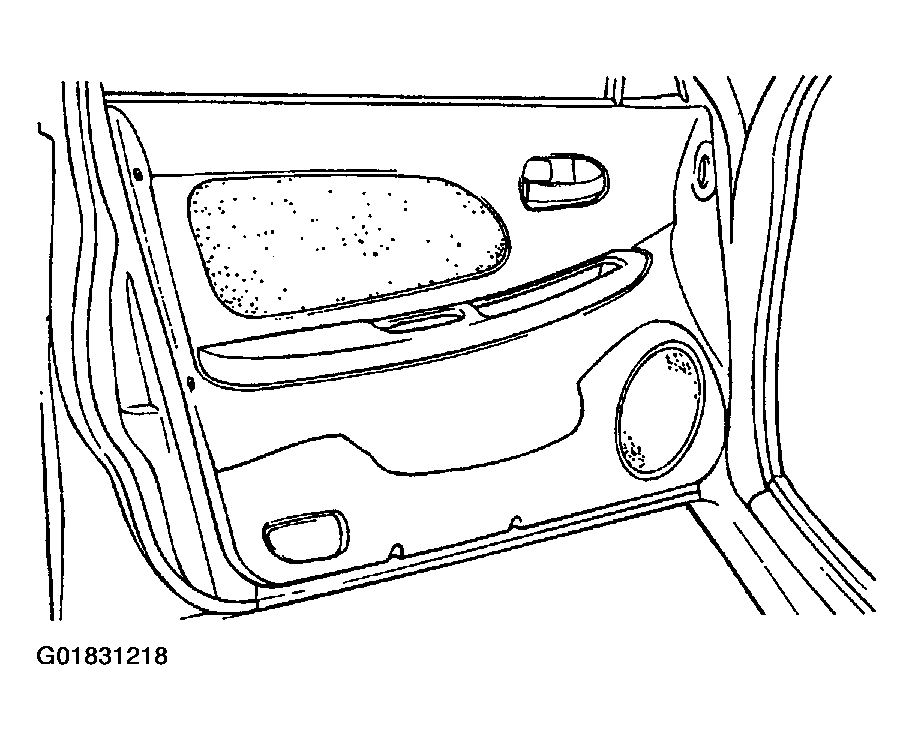

Fig 3: Identifying Front Door Inside Handle Housing
Courtesy of HYUNDAI MOTOR CO.
Remove the front door trim panel.

Fig 4: Identifying Front Door Trim Panel Fasteners
Courtesy of HYUNDAI MOTOR CO.
Insert a trim panel remover between the trim fasteners and the door trim panel to pry off.
Disconnect the door lamp connector.

Fig 5: Removing Trim Panel Fasteners
Courtesy of HYUNDAI MOTOR CO.
Remove the pull handle mounting bracket, inside door handle and the door trim seal.

Fig 6: Identifying Pull Handle Mounting Bracket, Inside Door Handle & Door Trim Seal
Courtesy of HYUNDAI MOTOR CO.
Remove the front speaker.

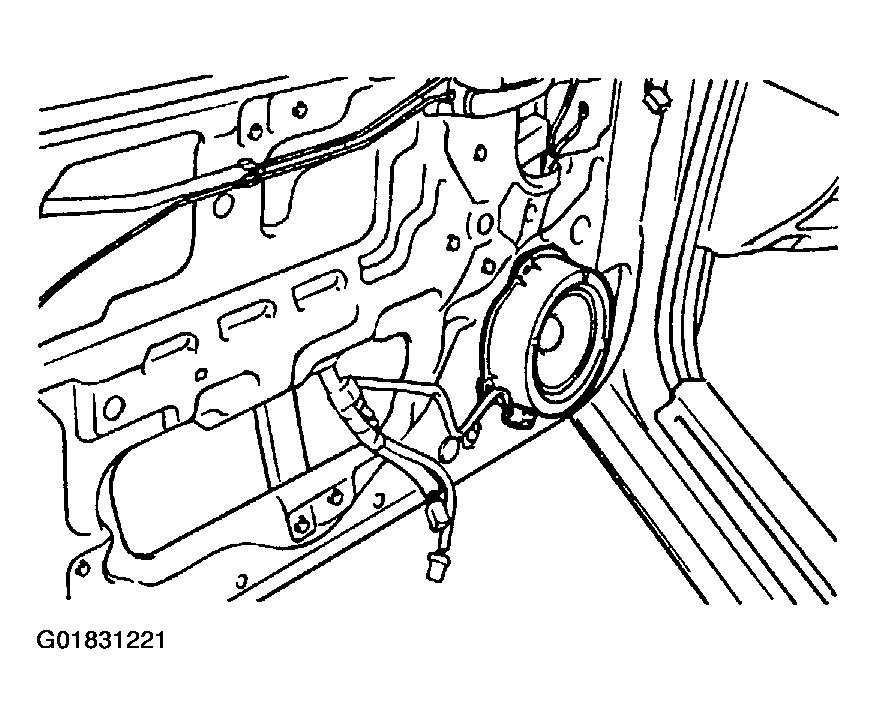

Fig 7: Identifying Speaker
Courtesy of HYUNDAI MOTOR CO.
Remove the front door belt outside weatherstrip.

Fig 8: Removing Front Door Belt Outside Weatherstrip
Courtesy of HYUNDAI MOTOR CO.
Lower the door window glass and loosen the carrier plate mounting bolts in the regulator channel.

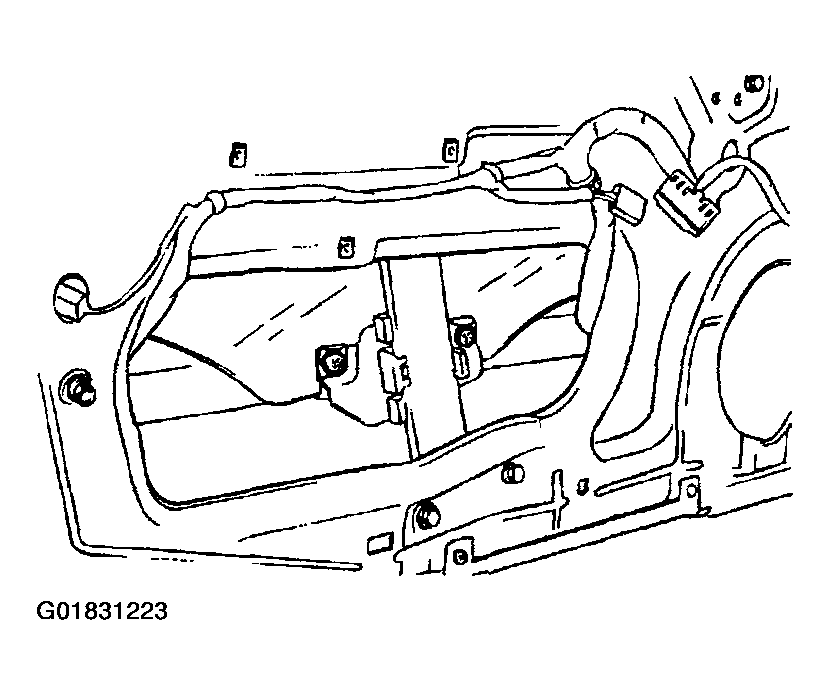

Fig 9: Identifying Carrier Plate Mounting Bolts In Regulator Channel
Courtesy of HYUNDAI MOTOR CO.

Tightening torque

Front door glass mounting bolts:

8-12 Nm (80-120 kg.cm, 5.8-8.7 lb.ft)
Pull the door glass out through the window slot.

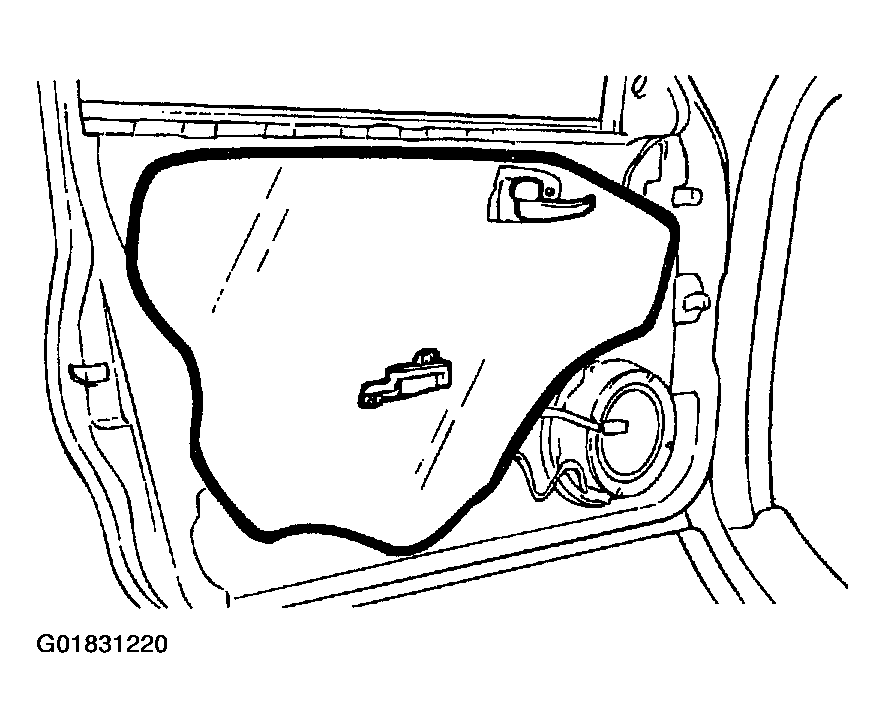

Fig 10: Removing Door Glass
Courtesy of HYUNDAI MOTOR CO.
Remove the door regulator channel mounting bolts and then remove the door regulator assembly.

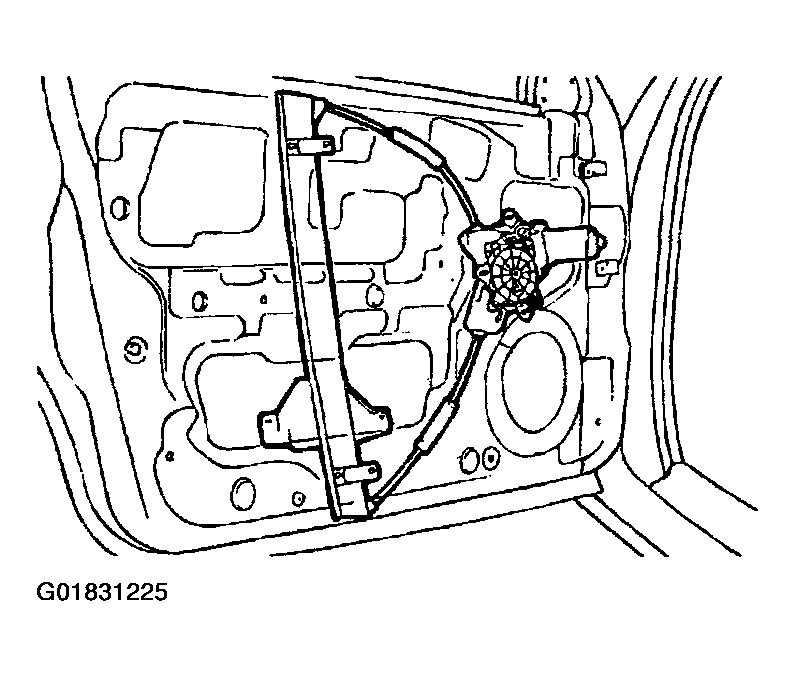

Fig 11: Identifying Regulator Assembly
Courtesy of HYUNDAI MOTOR CO.

Tightening torque

Door regulator channel mounting bolts:

4-6 Nm (40-60 kg.cm, 2.9-4.4 lb.ft)
Installation is the reverse of removal. When installing the door trim seal, butyl tape should not be placed over the door trim fastener mounting area.
