Automatic Transaxle Shift Control: Components

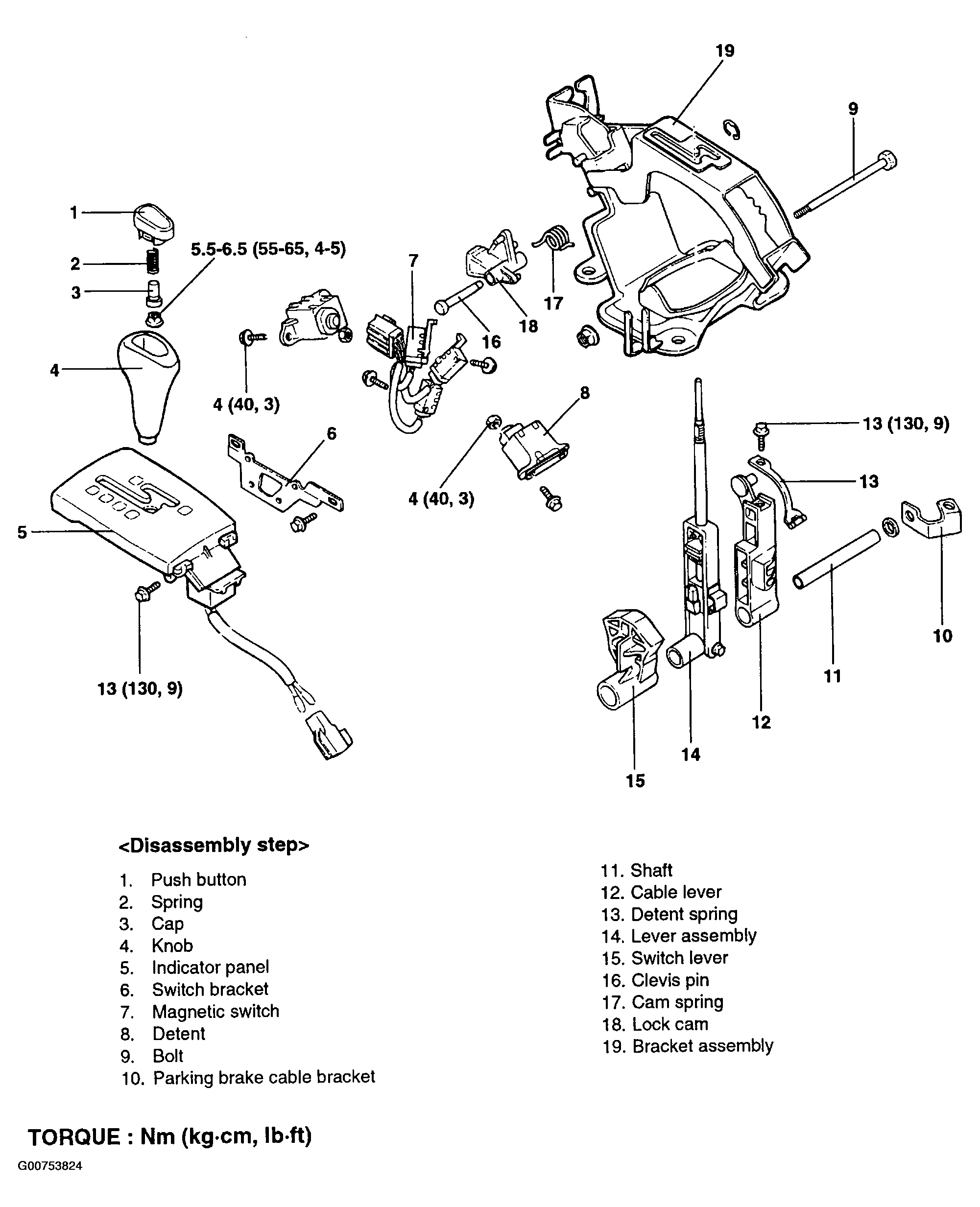

Fig 1: Automatic Transaxle Shift Control Components

G00753824

Courtesy of HYUNDAI MOTOR CO.
