Power Window Switch: Inspection: Notes

  1. Remove the switch from the door trim panel.
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.
    Fig 1: Identifying Power Window Switch Connector Terminals
    G01944260Courtesy of HYUNDAI MOTOR CO.

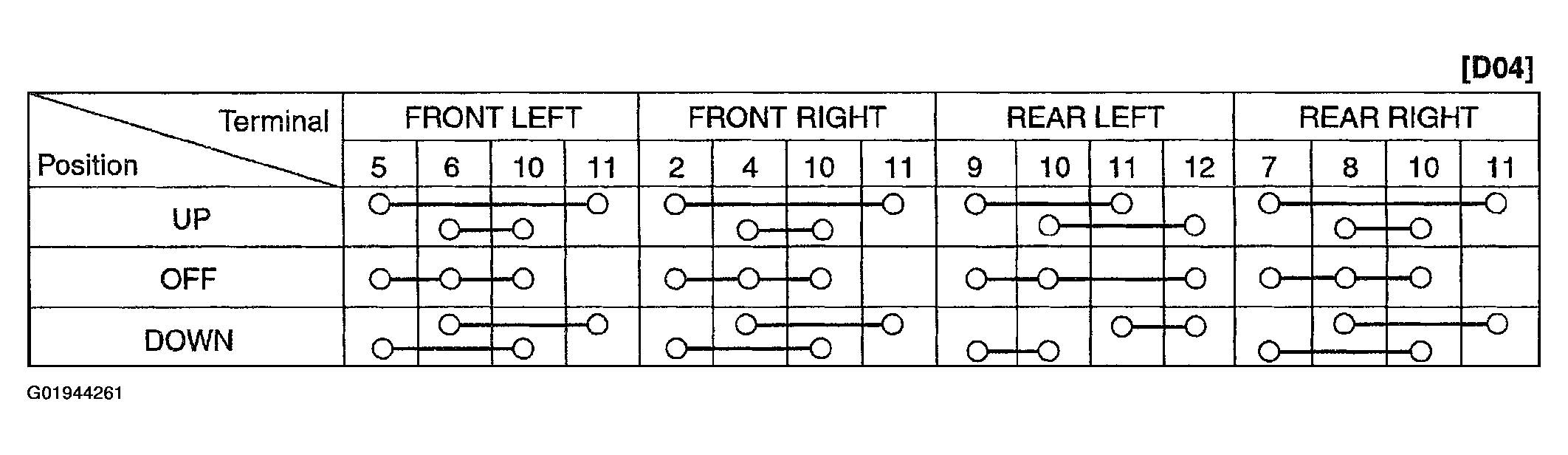

    Fig 2: Power Window Switch Continuity Table
    G01944261Courtesy of HYUNDAI MOTOR CO.
