Specifications (A/T)

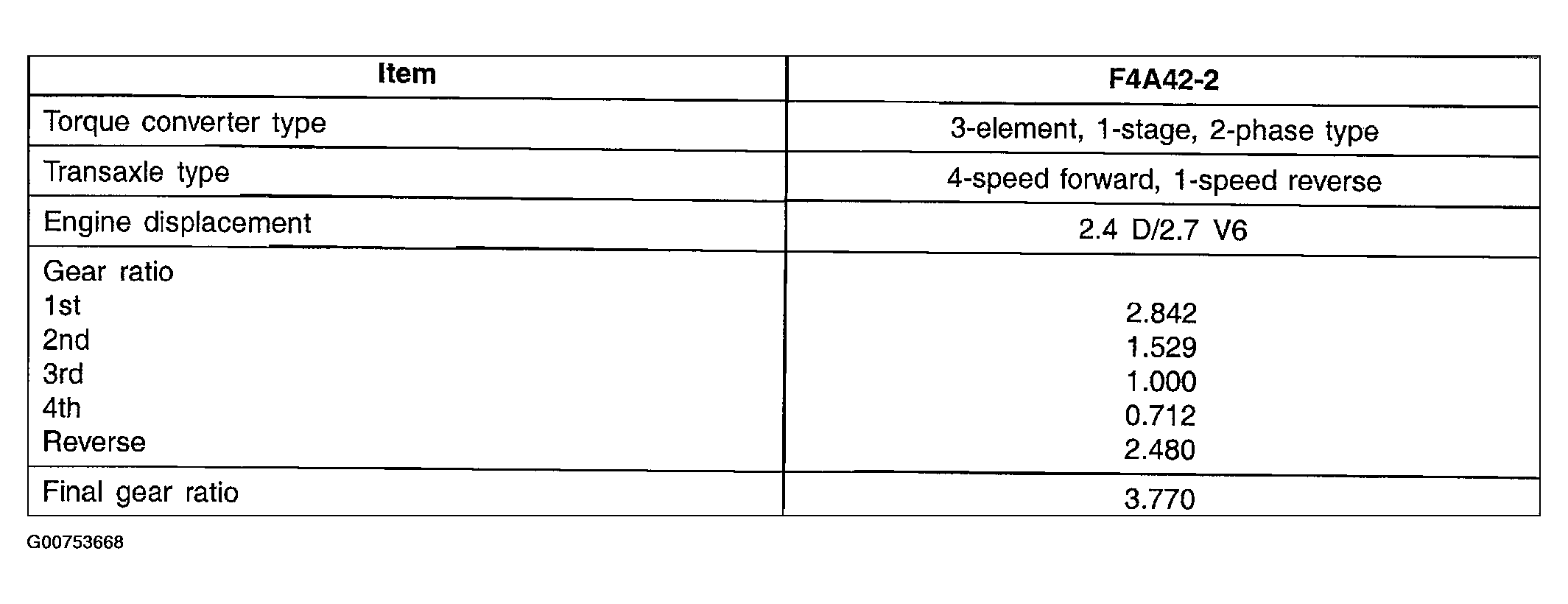

Fig 1: General Automatic Transaxle Specifications
G00753668Courtesy of HYUNDAI MOTOR CO.
