Checking Steering Angle

  1. Place the front wheel on a turning radius gauge and measure the steering angle.

    Standard value

    Wheel angle

    Inside wheel: 40.7° +/- 2°

    Outside wheel: 32.4°

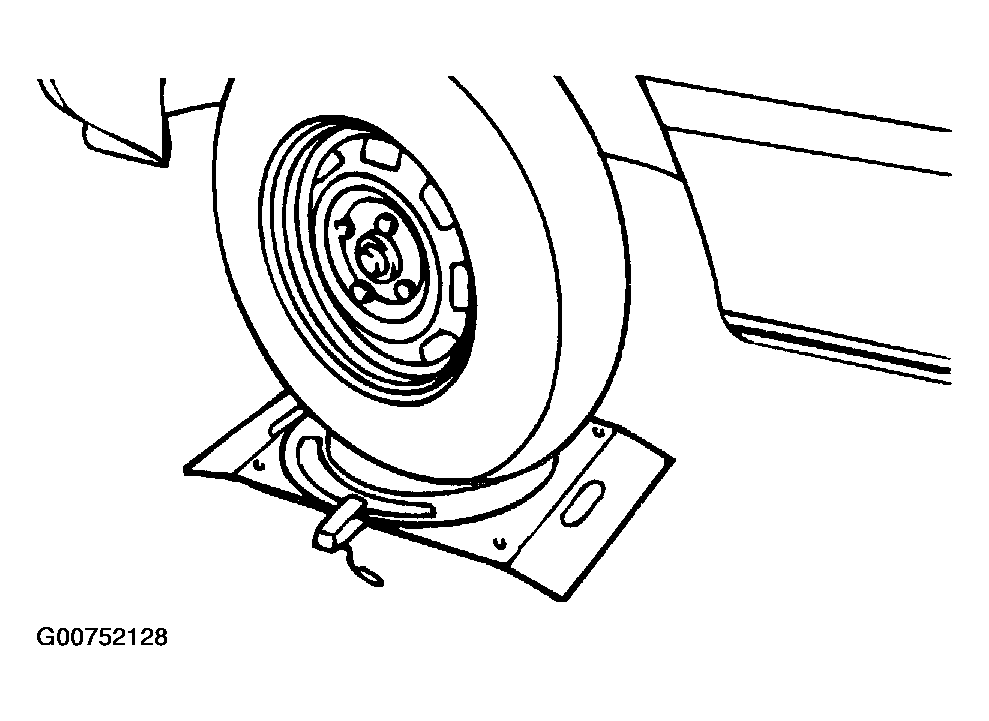

    Fig 1: Measuring Steering Angle
    G00752128Courtesy of HYUNDAI MOTOR CO.
  2. If the measured value is not within the standard value. Adjust the linkage.
