LEMON Manuals
: Even more car manuals for everyone
Home
>>
Hyundai
>>
2004
>>
Sonata Base, 2.7 H
>>
Repair and Diagnosis
>>
Steering
>>
Mechanical Power Steering System
>>
General
>>
Special Tools
Special Tools

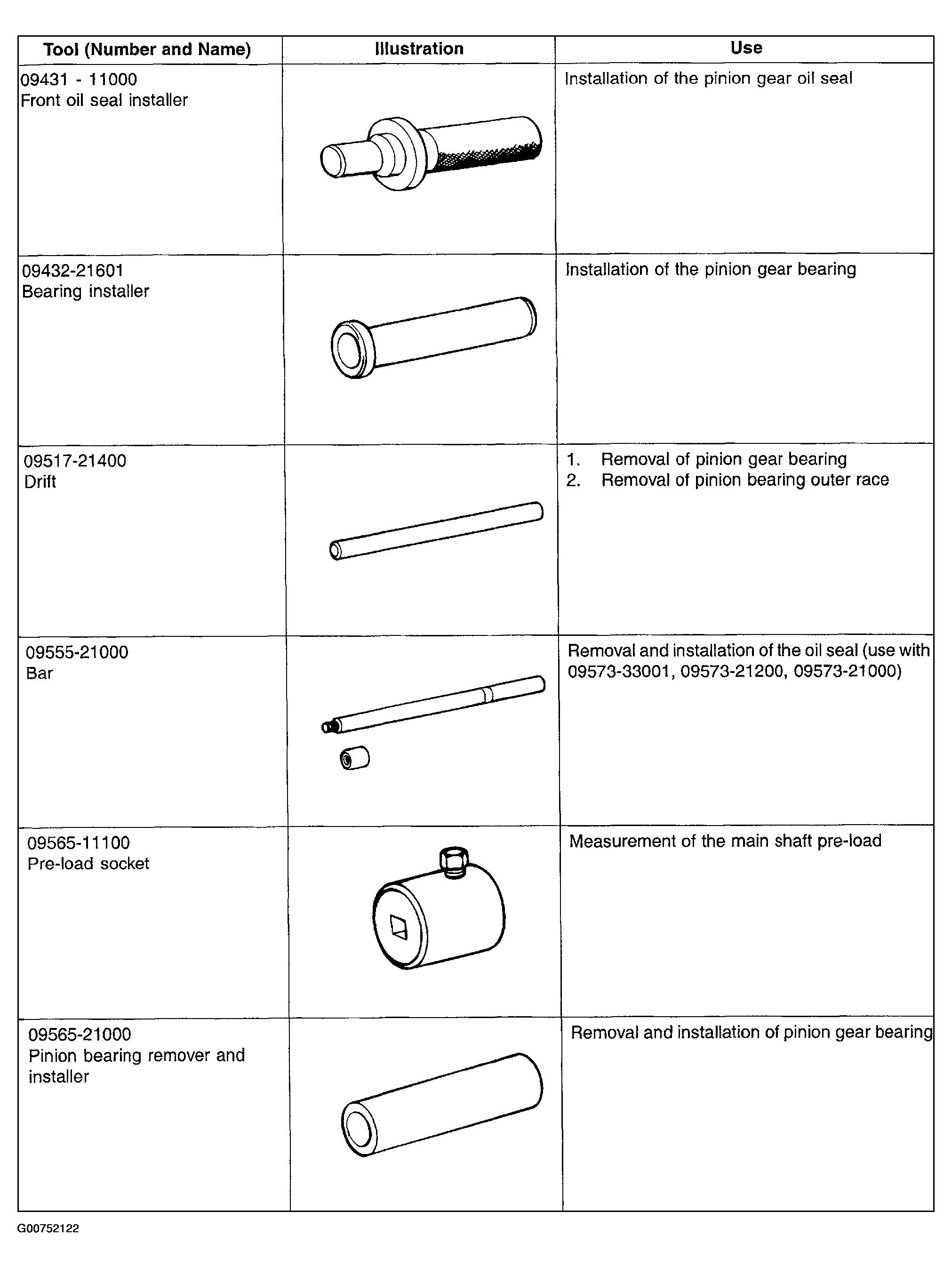

Fig 1: Identifying Special Tools (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

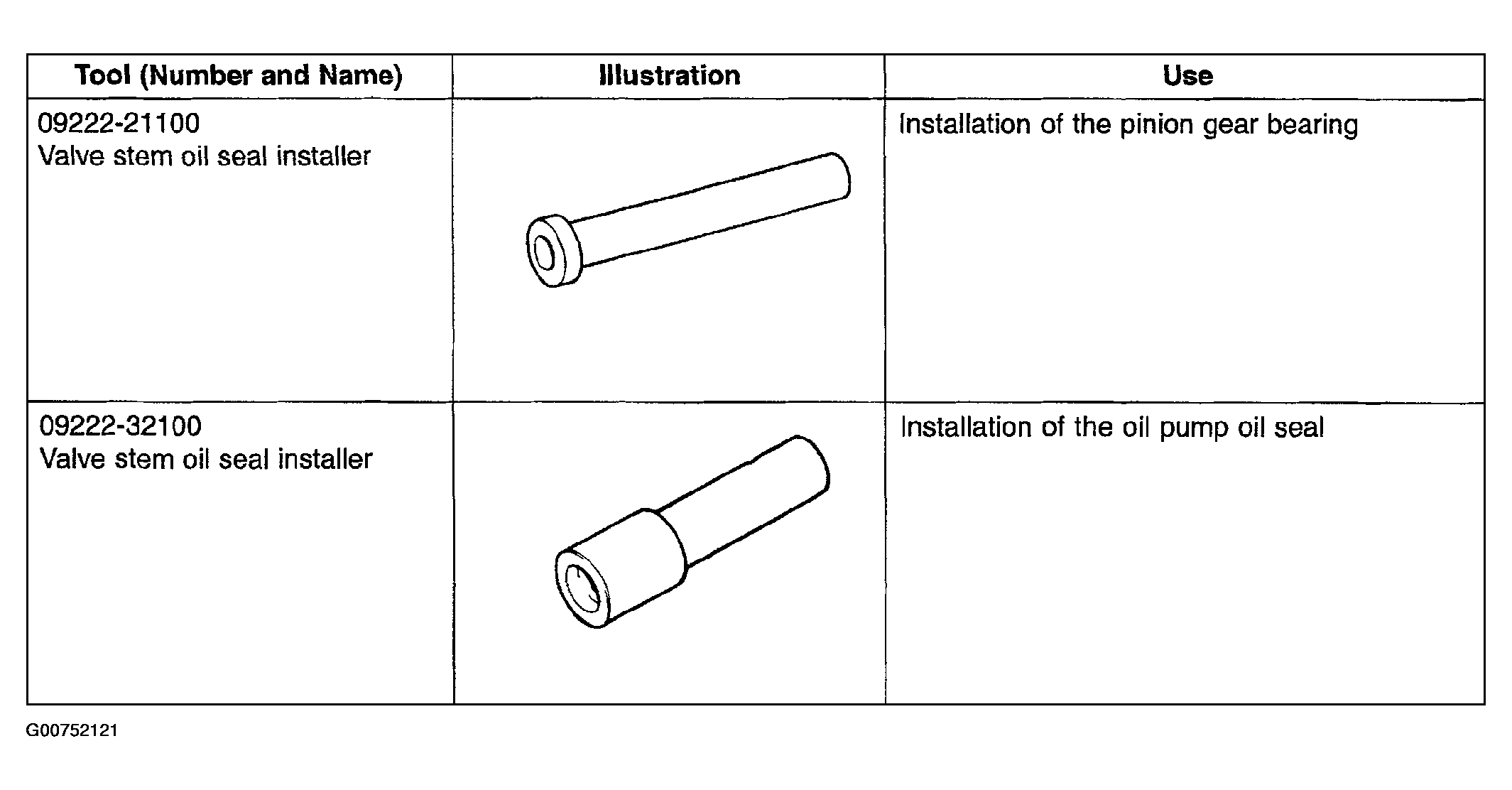

Fig 2: Identifying Special Tools (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying Special Tools (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Identifying Special Tools (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
