CMP & CKP

Should increase gradually while depressing the accelerator pedal and should decrease gradually after releasing the pedal without any intermittent drop or rise.

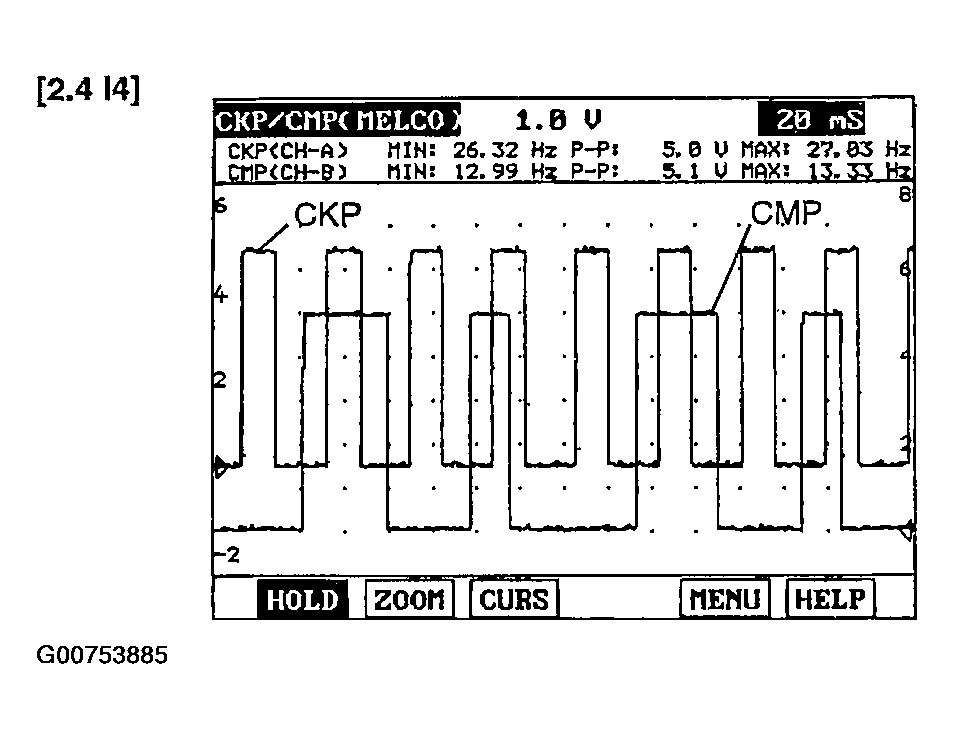

Fig 1: CMP & CKP Wave Forms 2.4L
G00753885Courtesy of HYUNDAI MOTOR CO.
