Electronic Power Steering Control Module Connector End View & Location

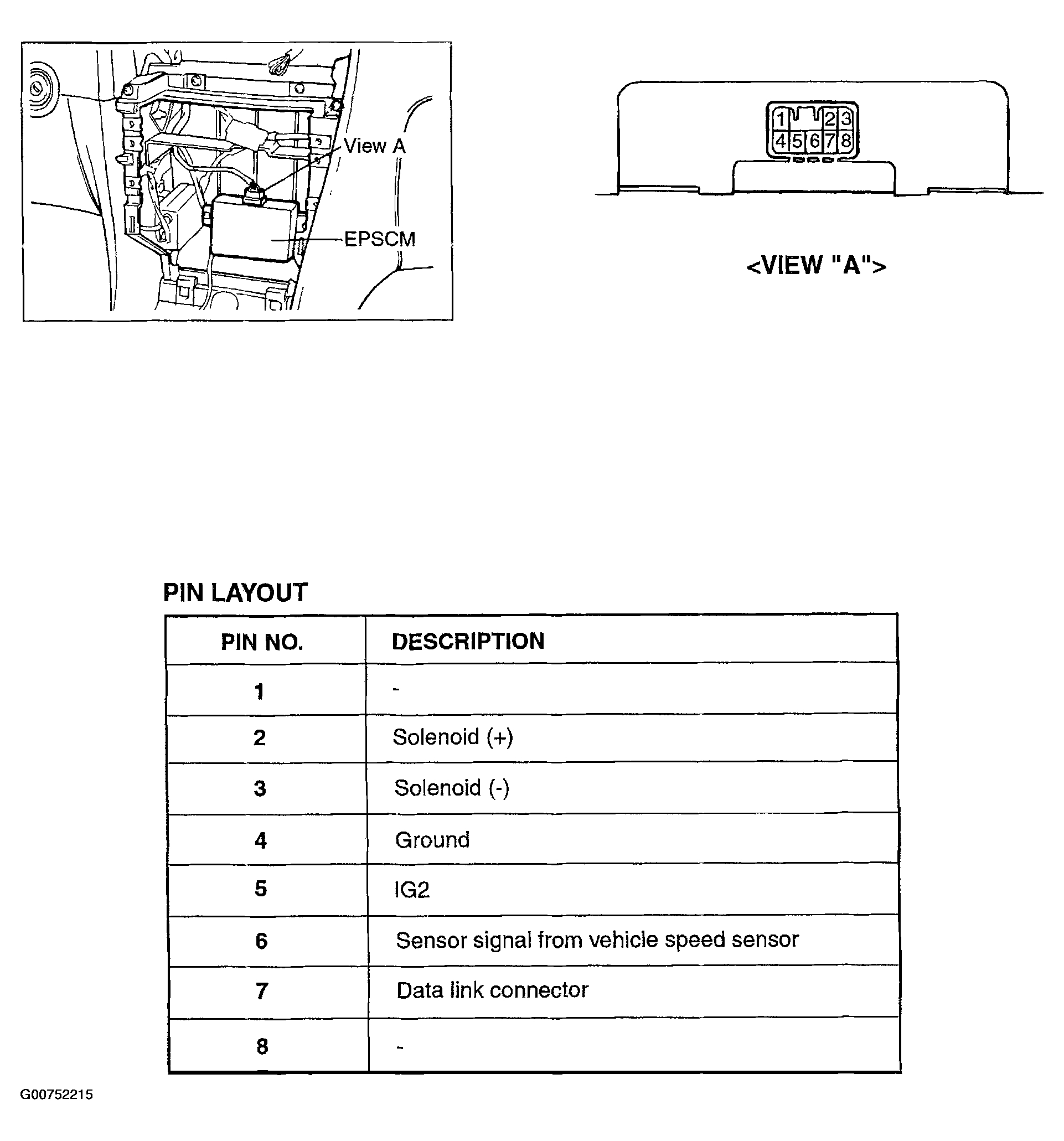

Fig 1: Electronic Power Steering Control Module Connector End View & Location

G00752215

Courtesy of HYUNDAI MOTOR AMERICA
