Specific Gravity Test: Notes

  1. Measure the specific gravity of the coolant with a hydrometer.

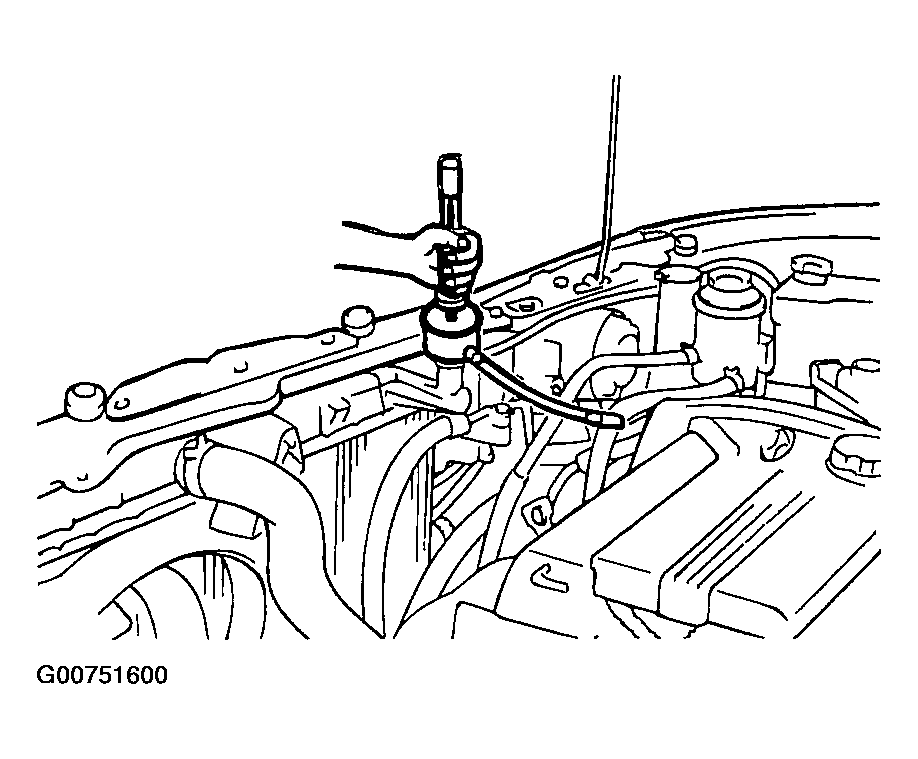

    Fig 1: Checking Coolant With Hydrometer
    G00751600Courtesy of HYUNDAI MOTOR CO.
  2. Measure the coolant temperature and calculate the concentration from the relation between the specific gravity and temperature, using the following table for reference. See Fig 2.

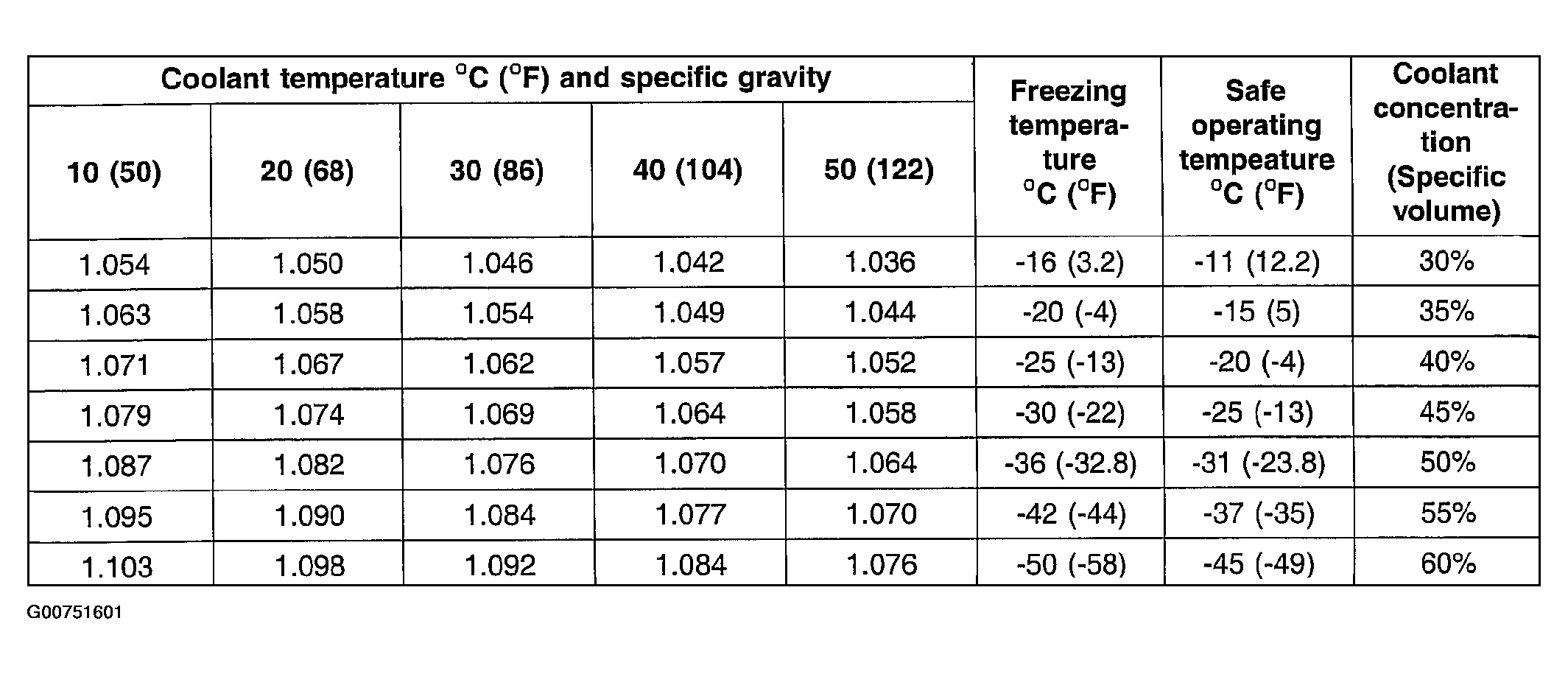

    Fig 2: Coolant Concentration Table
    G00751601Courtesy of HYUNDAI MOTOR CO.
