Home >> Hyundai >> 2004 >> Sonata Base, 2.4 S, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 2.4L 4-Cylinder Engine >> Front Case And Lubrication System >> Components

Front Case And Lubrication System: Components

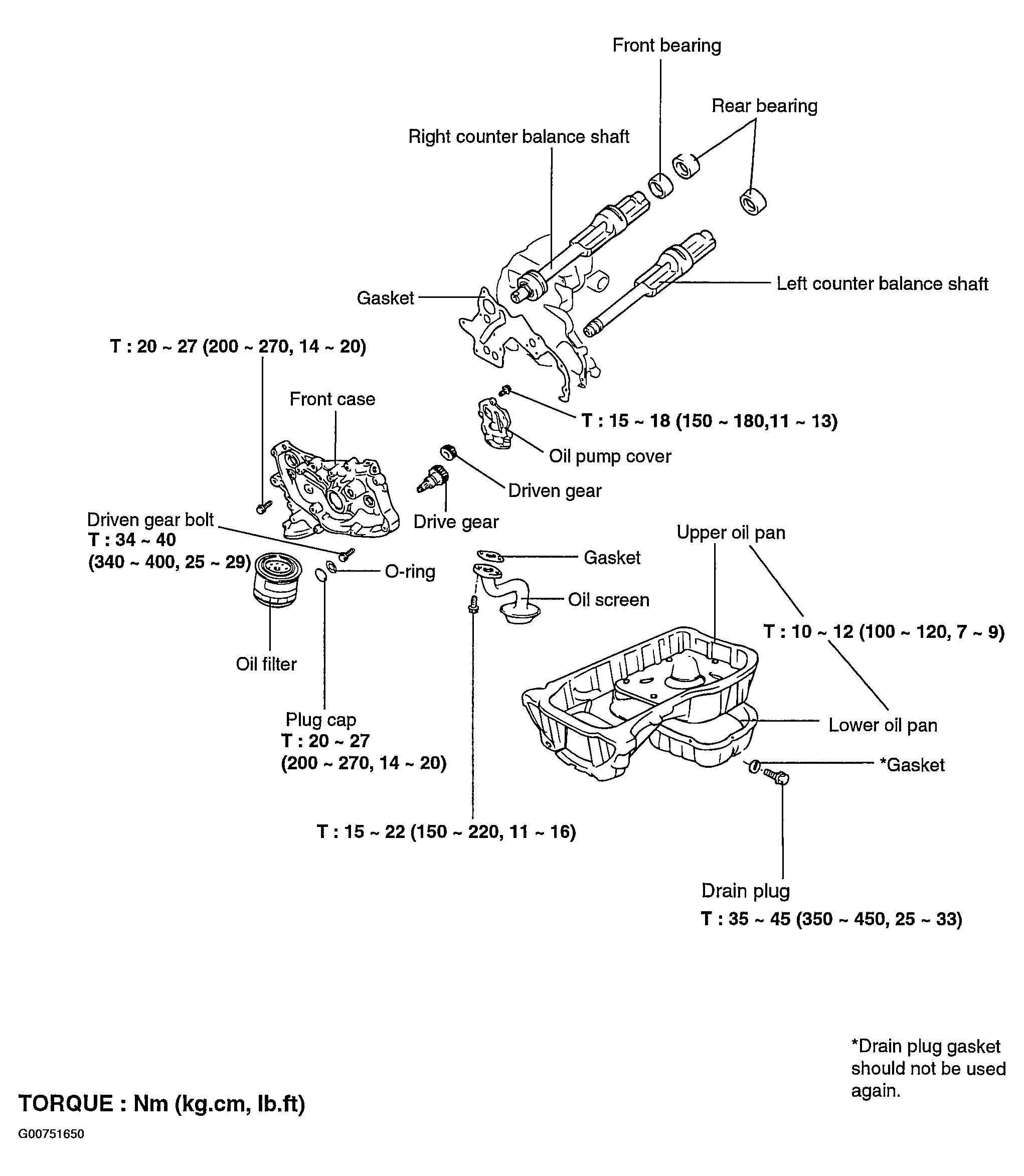

Fig 1: Front Case Components

G00751650

Courtesy of HYUNDAI MOTOR CO.
