Engine & Transaxle Assembly: Installation

When installing the engine and transaxle, check the connections of harnesses, pipes, hoses, etc. make sure that none of them are caught, damaged, etc.
Install the front roll stopper to the bracket roughly.
Tightening torque

Service standard:

50 ~ 65 Nm (500 ~ 650 kg.cm, 36 ~ 47 lb.ft)

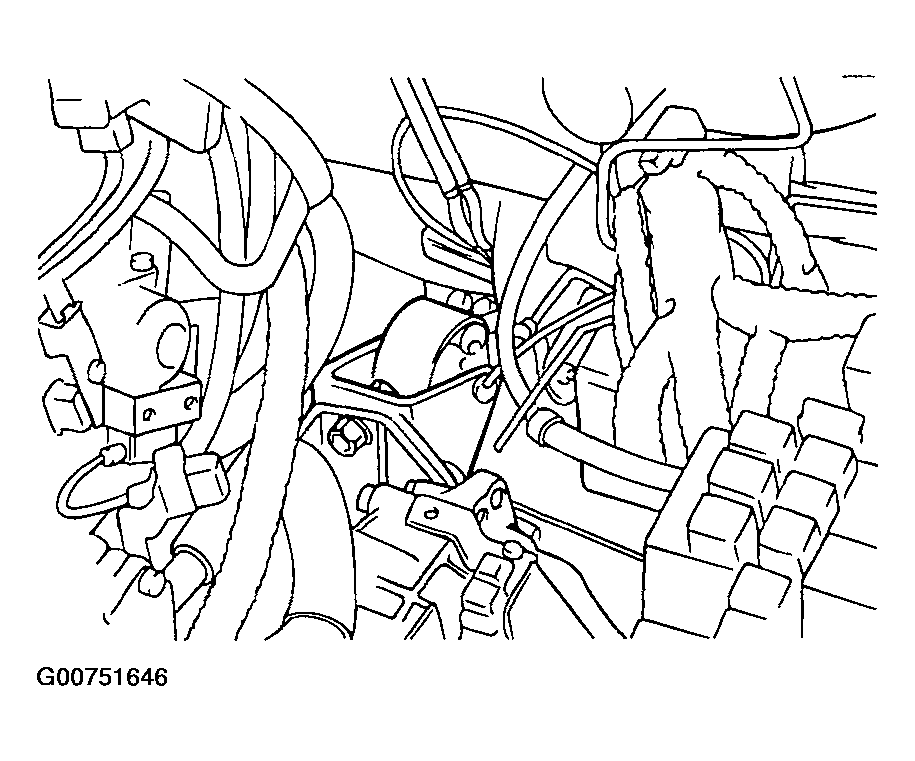

Fig 1: Installing Front Roll Stopper
Courtesy of HYUNDAI MOTOR CO.
Install the rear roll stopper to the bracket.
Tightening torque

Service standard:

50 ~ 65 Nm (500 ~ 650 kg.cm, 36 ~ 47 lb.ft)

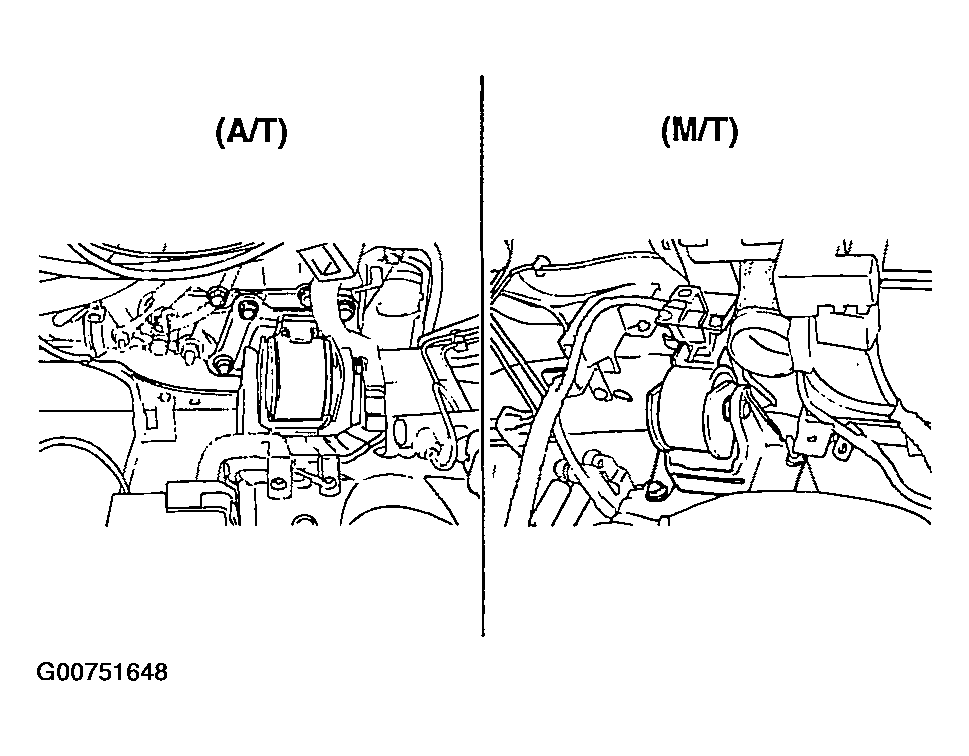

Fig 2: Installing Rear Roll Stopper
Courtesy of HYUNDAI MOTOR CO.
Install the engine/transaxle to the sub-frame assembly. Use the T/M jack to raise the assembly slowly adjust it to the vehicle body.
Install the transaxle mounting bracket.
Tightening torque

Service standard:

90 ~ 110 Nm (900 ~ 1100 kg.cm, 65 ~ 80 lb.ft)

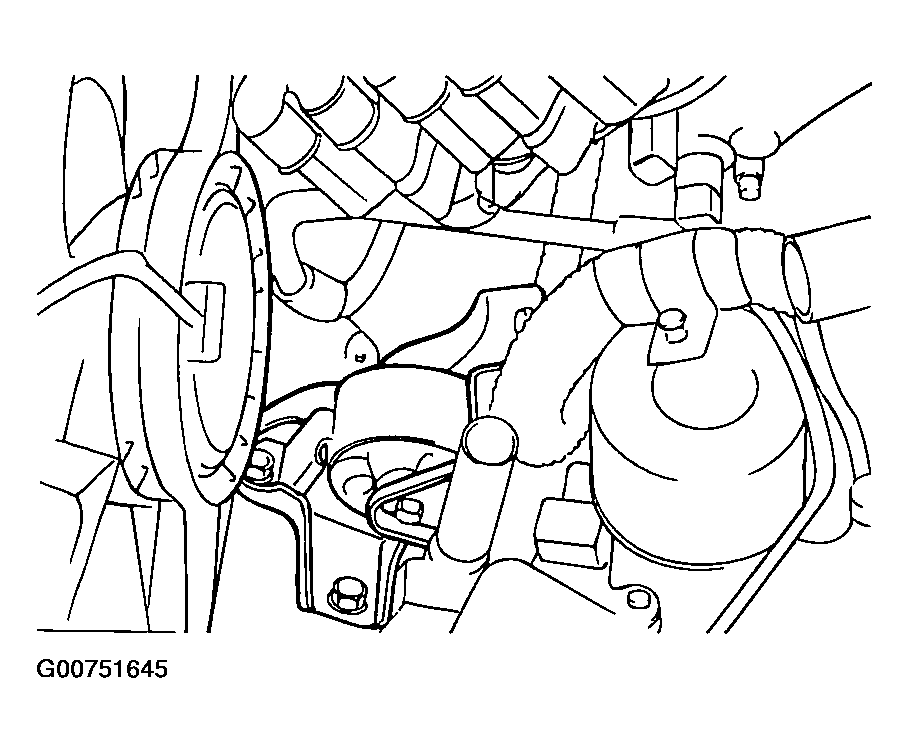

Fig 3: Identifying Transaxle Mounting Bracket
Courtesy of HYUNDAI MOTOR CO.
Install the engine bracket (right side).
Tightening torque

Service standard:

60 ~ 80 Nm (600 ~ 800 kg.cm, 43 ~ 58 lb.ft)

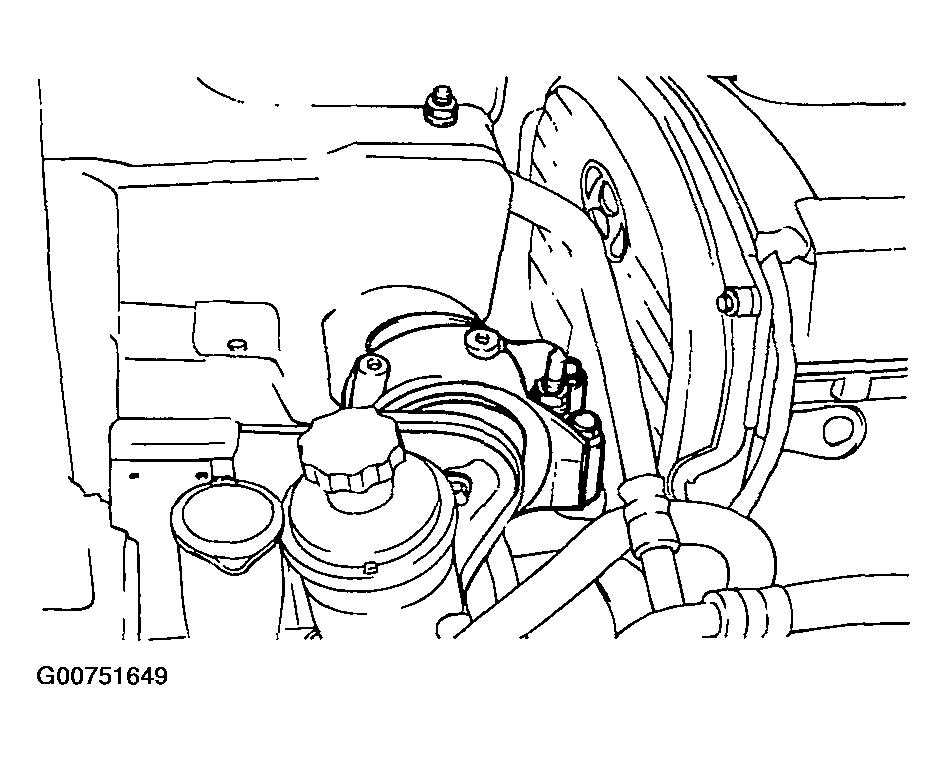

Fig 4: Identifying Engine Bracket
Courtesy of HYUNDAI MOTOR CO.
To install all of parts, follow the removal procedures in the reverse order.
Refill the coolant and then check for leaks.
Refill the transaxle oil and check for leaks, then test its operation.
Check the operation of the transaxle control cable and accelerator cable.
Check the proper operation of each gauge.
