Specifications
>>
Service Standard
Service Standard

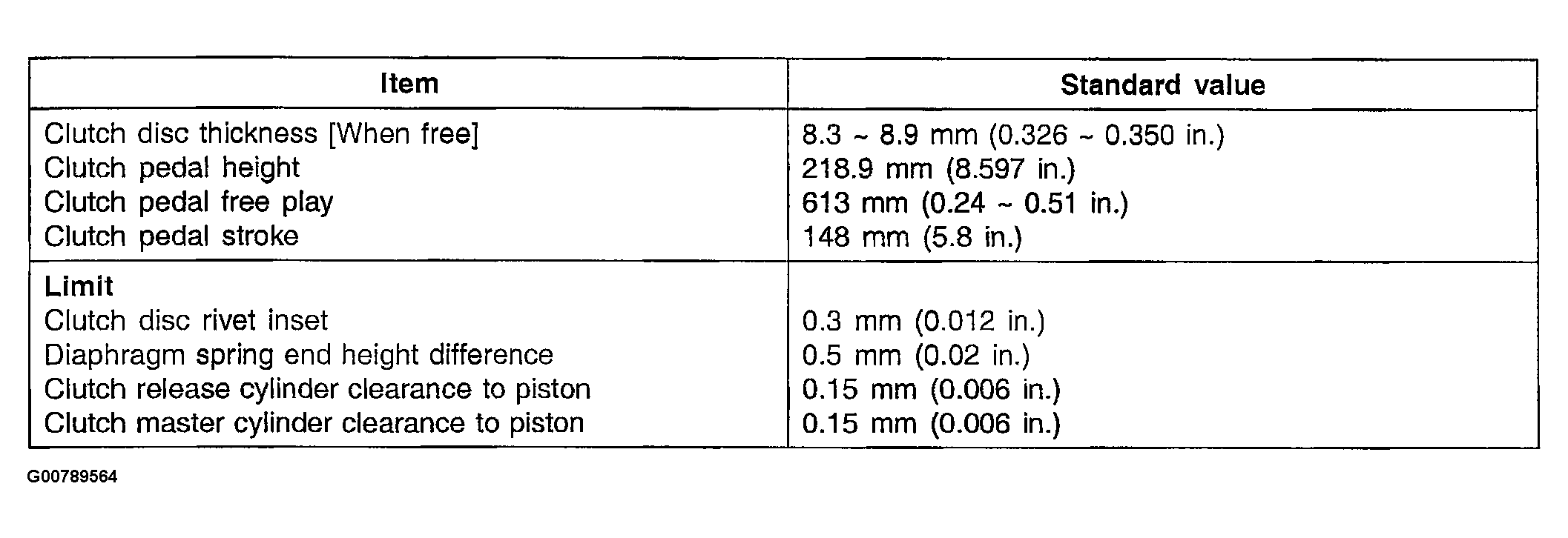

Fig 1: Clutch Service Standard Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
